Autonics MP5S-4N Digital Panel Meter
Medidor de panel digital AUTONICS MP5S-4N con pantalla de 5 dígitos, entrada de voltaje, 16 modos de operación, protección IP54 y una amplia gama de aplicaciones para mediciones industriales.

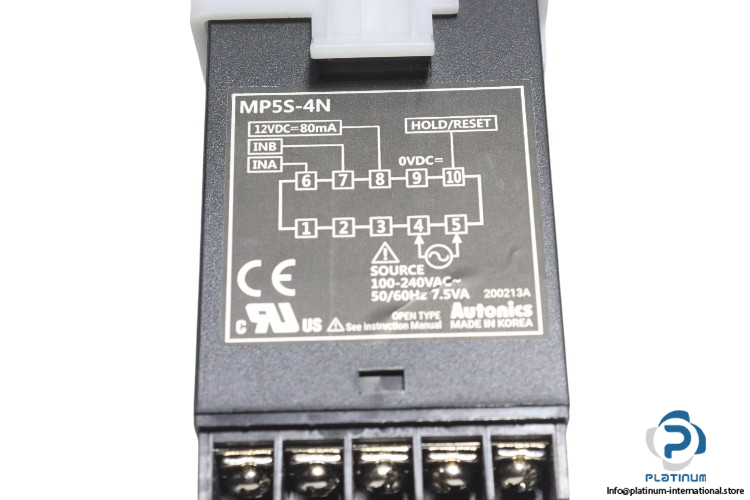

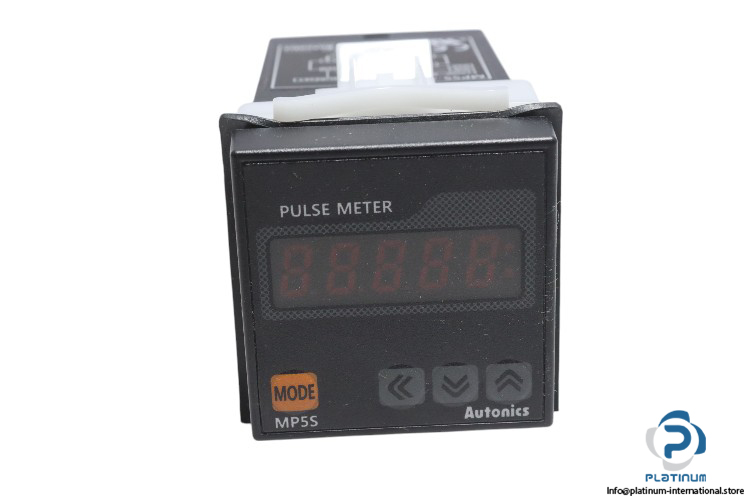

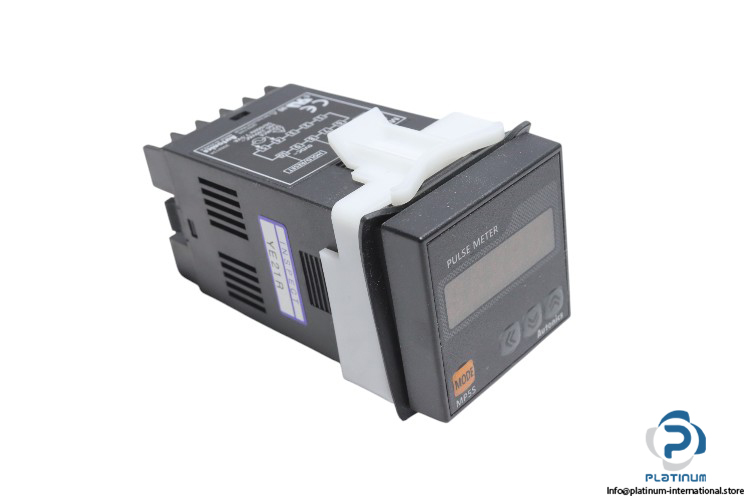

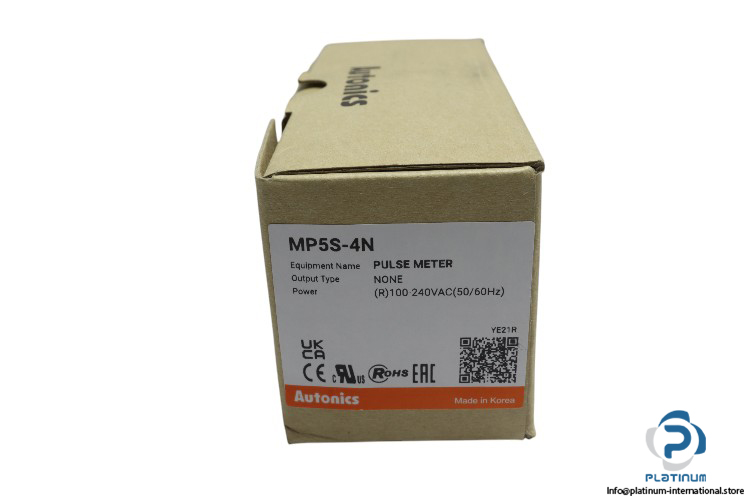

AUTONICS DIGITAL PANEL METER MP5S-4N (Part number: YE21R)
The AUTONICS DIGITAL PANEL METER MP5S-4N (Part number: YE21R) is a versatile and accurate measurement tool designed for various industrial applications. This 5-digit panel meter features a character height of 8mm and a maximum display range from -19999 to 99999. It supports voltage input (PNP) and no-voltage input (NPN) and offers 16 operation modes for different measurements including frequency, revolutions, speed, cycle, ratio, density, error, and more.
| Part No. | YE21R |
| Display Method | 5-digit display |
| Character Height | 8mm |
| Max. Display Range | -19999 to 99999 |
| Input Method | Voltage input (PNP), No-voltage input (NPN) |
| Power Supply | 100-240VAC~ 50/60Hz |
| External Power Supply Max. | 12VDC = 80mA |
| Measurement | 16 operation modes including Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc. |
| Protection Structure | IP54 |
| Ambient Temperature | -10 to 50℃ |
