Deltron SA2-6 Ball Slide
Guía de bolas La guía de bolas Deltron SA2-6 ofrece un recorrido de 150 mm con alta precisión y movimiento lineal suave. Diseñada para aplicaciones de precisión con una longitud de 203 mm y un perfil compacto para integración que ahorra espacio.
Deltron SA2-6 Ball Slide

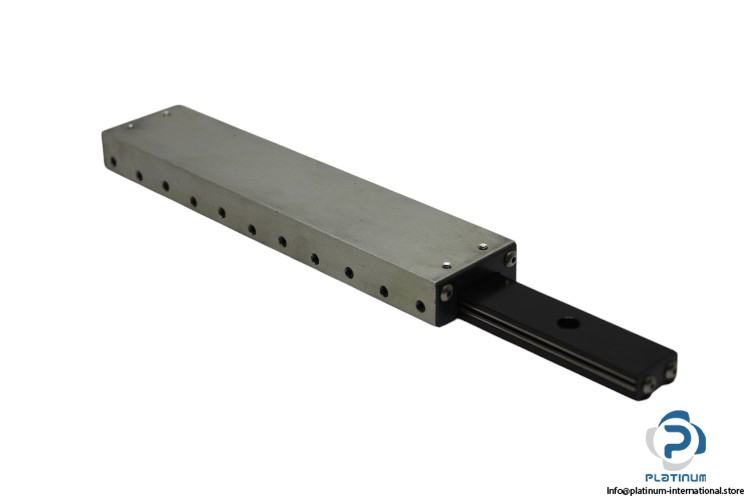

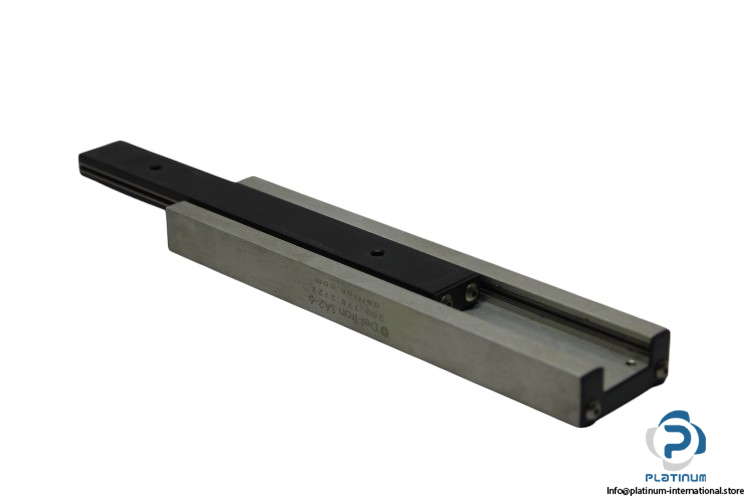

The Deltron SA2-6 Ball Slide is a high-precision linear motion solution designed for smooth and accurate movement in compact assemblies. Manufactured with high-quality materials, it features a reliable design suited for automation, inspection, and positioning systems where precise travel and stability are essential.
Manufacturer: Deltron
Type: Ball Slide
Model: SA2-6

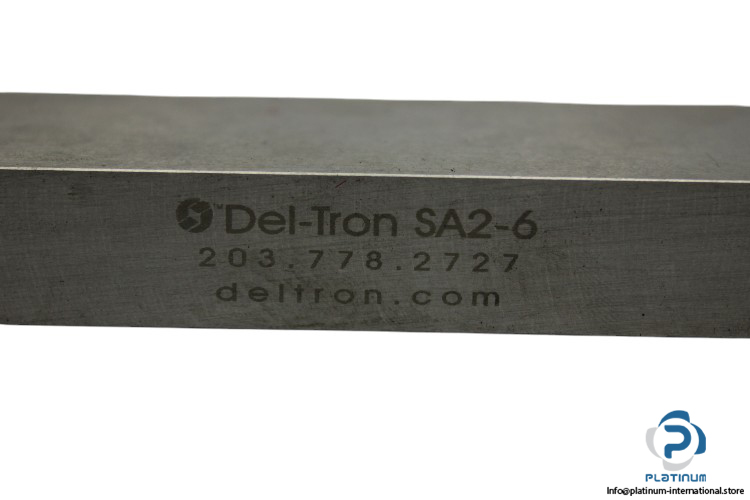

Part No.: 203.778.2727

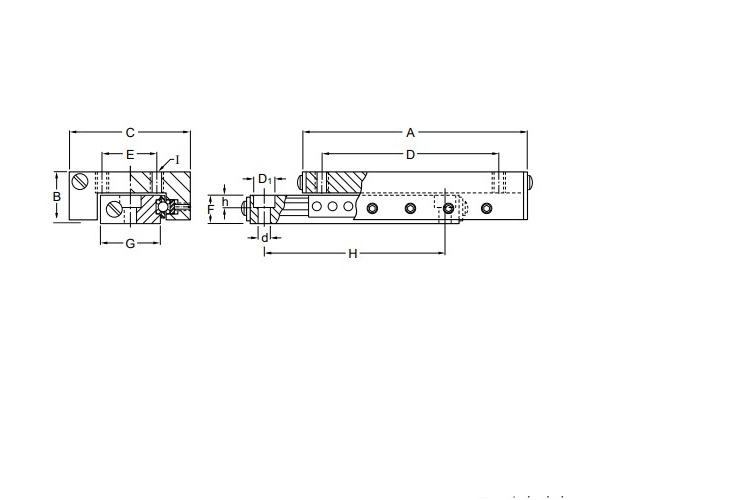

| Length (A) | 203 mm |
| Height (B) | 19 mm |
| Width (C) | 44 mm |
| Travel | 150 mm |
| Hole Spacing | 126 mm |
| Height (F) | 10.2 mm |
| Width (G) | 22.2 mm |
| E | 20 mm |
| D | 190 mm |
