Dold AA7616.24 Minitimer
Usado
En stock2 unidadesListo para enviar
77,77$
MINITIMER Dold AA7616.24 minitimer con alimentación de 220 V CA, rango de tiempo de 0,2 s a 60 h, 2 contactos NO + 2 contactos NC, protección IP40/IP20, y carcasa termoplástica.
0000680220V2NC2NOAA7616.24ACAgNiAutomationContactDoldIndustrialIP20IP40MinitimerRelaythermoplasticTimeTimer
Nuevo
Disponible bajo solicitud 99,99$
Este producto también está disponible completamente nuevo
Ver nueva versión →
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

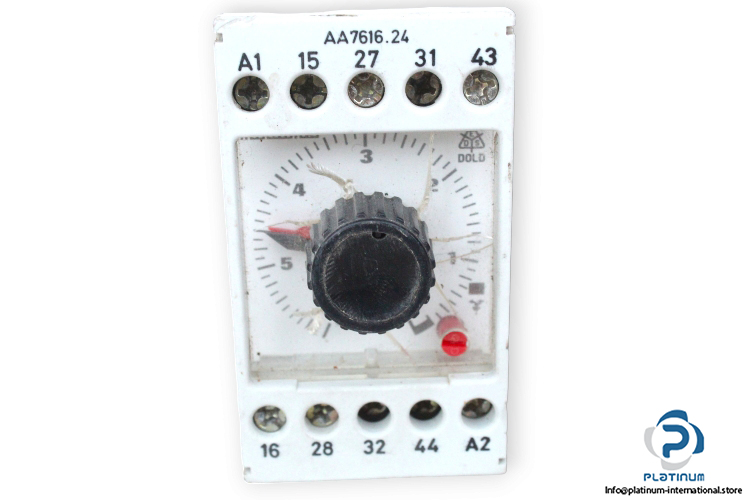

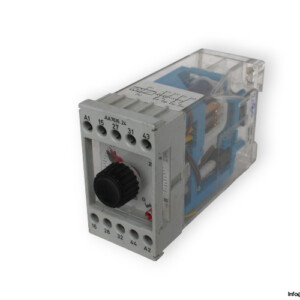

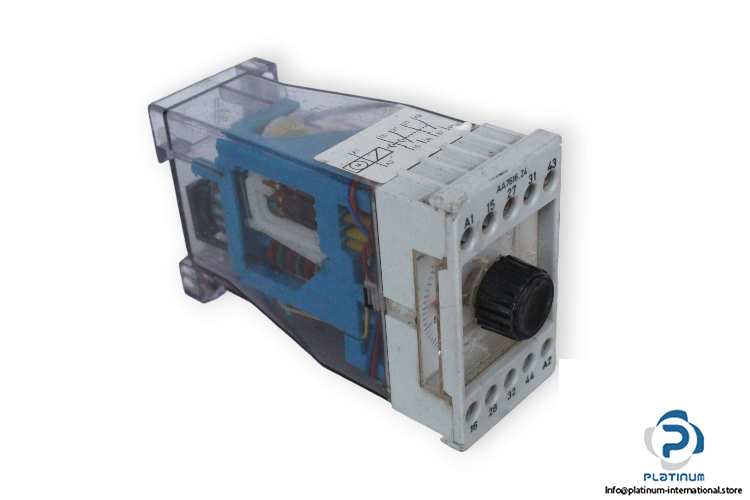

Dold AA7616.24 Minitimer
The Dold AA7616.24 is a precise and versatile industrial minitimer designed for reliable time control in automation systems. It offers wide time ranges, durable AgNi contacts, and robust thermoplastic housing, ensuring long service life in demanding electrical environments.

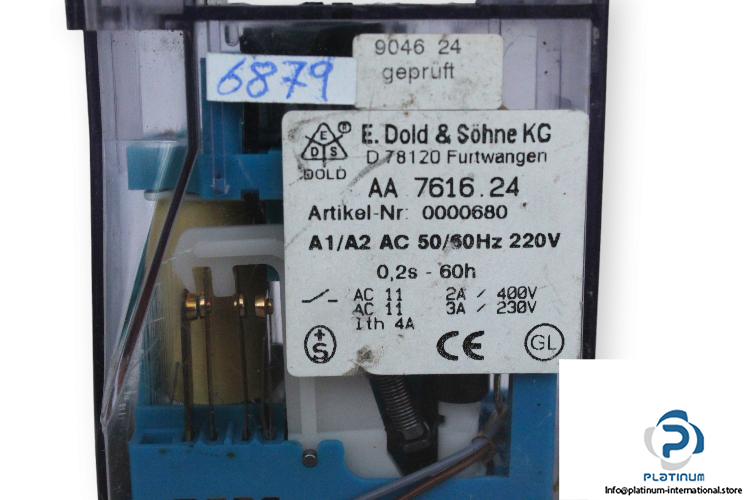

Manufacturer: Dold
Type: Minitimer
Model: AA7616.24
Art No.: 0000680
| Supply Voltage | 220 V AC |
| Frequency | 50 / 60 Hz |
| Time Range | 0.2 s / 60 h |

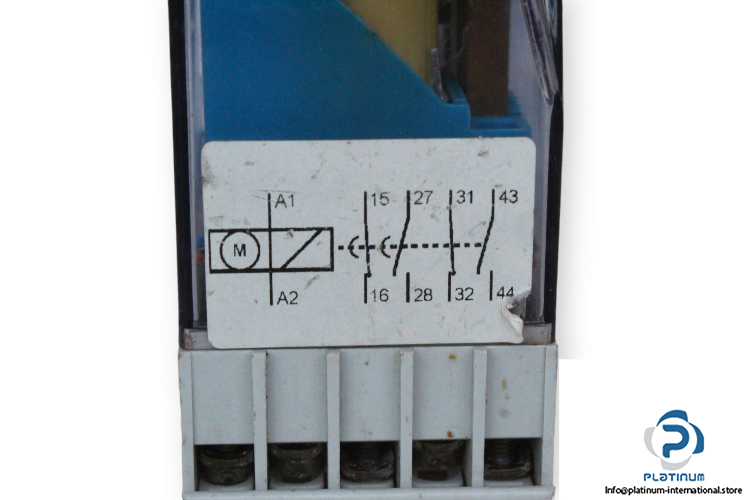

| Contact Configuration | 2 Normally Open, 2 Normally Close |
| Contact Voltage | 230 / 400 V AC |
| Contact Current | 2 / 3 A |
| Thermal Current | 4 A |
| Contact Material | AgNi |
| Housing | Thermoplast with V0-behaviour |
| Width | 45 mm |
| Torque | 0.8 Nm |
| Operating Temperature | ˆ’20 / 55 °C |
| Degree of Protection | Housing IP40, Terminal IP20 |
| Dimensions | 45 × 77 × 127 mm |
