Endress+Hauser 50P80-EC1A1AA0A5AA Flow Meter
1 499,99$
Medidor de flujo Endress+Hauser PROMAG 50P80 para medición de flujo volumétrico, DN80, con clasificación IP67, salida HART y precisión del 0,5% para aplicaciones de procesos industriales.

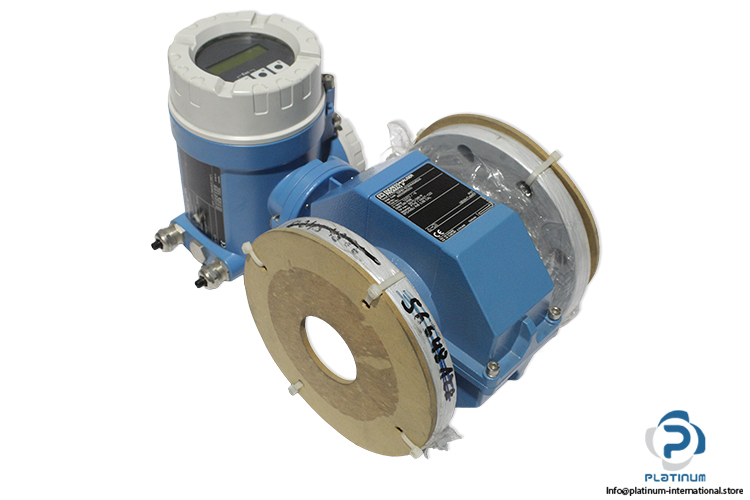

Endress+Hauser 50P80-EC1A1AA0A5AA Flow Meter
The Endress+Hauser PROMAG 50 series flow meter is designed for accurate and reliable volume flow measurement in industrial process applications. Engineered for durability and high performance, it supports a wide range of operating conditions and demanding environments.
Manufacturer: Endress+Hauser
Type: Flow Meter
Model: 50P80-EC1A1AA0A5AA
Series: PROMAG 50
Serial Number: 45010591000
Compliance & Certifications
CE Marking
Multiple International Patents (UK, EP, US)
IP67 / NEMA Type 4X Certified Enclosure
| Measured Variables | Volume Flow |

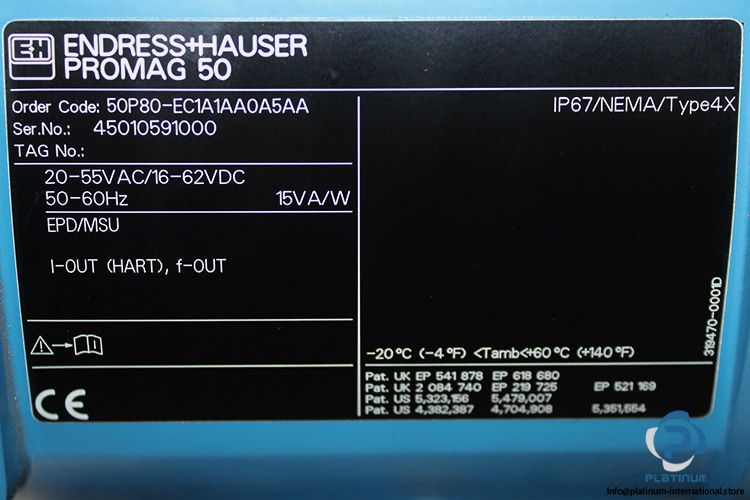

| Supply Voltage | 20 to 55 V AC / 16 to 62 V DC |
| Frequency | 50 / 60 Hz |
| Flow Rate Range | 4 to 300 m³/h |
| Power Consumption | 15 VA / W |
| Nominal Diameter | DN80 |
| Pressure | 16 bar |
| Output Signals | I-OUT (HART), Frequency Output (f-OUT) |

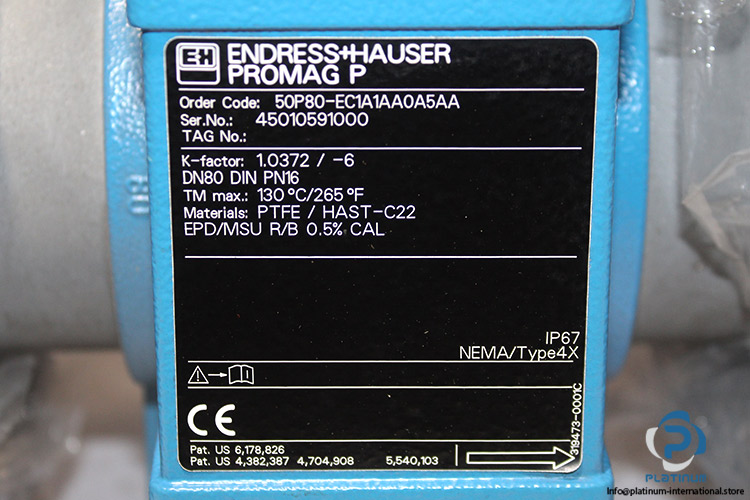

| K-Factor | 1.0372 / -6 |
| Maximum Medium Temperature (TM max) | 130°C |
| Liner Material | PTFE |
| Electrode Material | HAST-C22 (Hastelloy C22) |
| Accuracy | 0.5% (CAL) |
| Electronics Version | EPDM / MSU |
| Protection Rating | IP67 |
| NEMA Rating | Type 4X |
| Ambient Temperature Range | -20 to +60°C |
