Fezer VT 4.4 Vacuum Pump
En stock1 unidadListo para enviar
Fezer VT 4.4 Vacuum Pump
Bomba de vacío FEZER VT 4.4 La bomba de vacío está diseñada para aplicaciones de vacío de alto rendimiento, con una velocidad nominal de 2800 / 3300 RPM y una capacidad de entrada de 4.1 / 4.7 m³/h. Está integrada con el motor D 63 A2 F, asegurando un funcionamiento fiable con eficiencia energética optimizada.
28004.763850A2CapacityClassDFFezerHigh-EfficiencyIndustrialInsulationIP54m³/hmbarmotorProtectionpumprpmSystemtechnologyvacuum
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
FEZER VT 4.4 Vacuum Pump

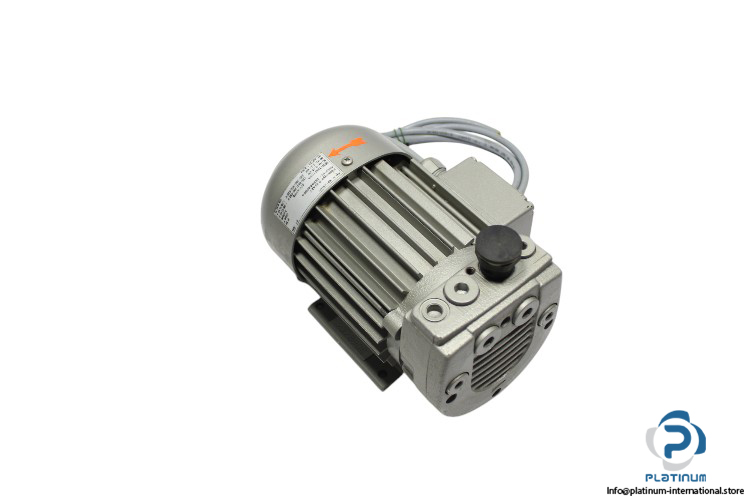

The FEZER VT 4.4 Vacuum Pump is a high-performance solution designed for industrial applications requiring reliable vacuum generation. With a compact design and efficient motor integration, this pump ensures stable operation at various speeds and pressure levels. Attached with the D 63 A2 F Motor, it delivers optimized power and efficiency for demanding environments.
- Manufacturer: FEZER
- Type: Vacuum Pump
- Model: VT 4.4
- Part No: 2328906

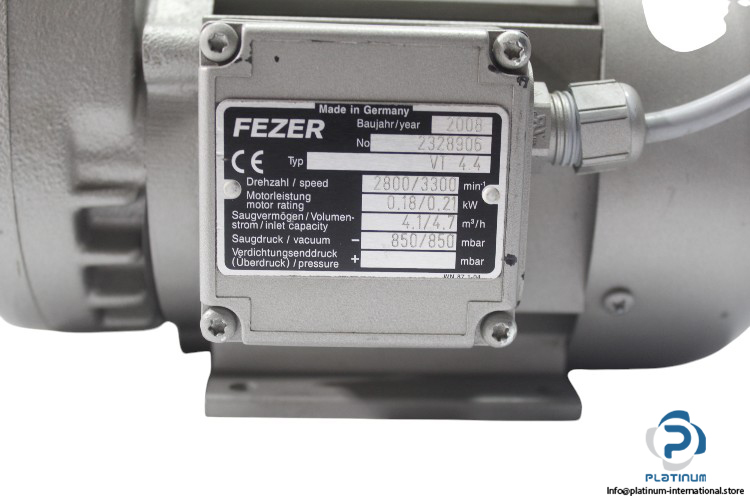

Technical Specifications
- Pressure: 850 mbar
- Rated Speed: 2800 / 3300 RPM
- Inlet Capacity: 4.1 / 4.7 m³/h
- Rated Power: 0.18 / 0.21 kW

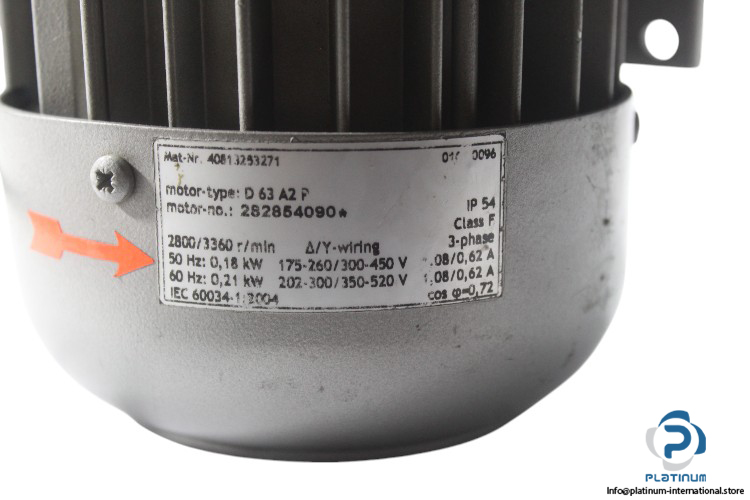

Attached Motor – D 63 A2 F
- Type: Motor
- Model: D 63 A2 F
- Part No: 282854090
- Rated Speed: 2800 / 3360 RPM
- Rated Voltage (50 Hz): 175 “ 260 / 300 – 450 V
- Rated Power (50 Hz): 0.18 kW
- Rated Voltage (60 Hz): 202 “ 300 / 350 – 520 V
- Rated Power (60 Hz): 0.21 kW
- Power Factor: 0.72
- Protection Class: IP54
- Insulation Class: F
| Especificación | Valor |
|---|---|
| Weight | 7,3 kg |
| Condition | Used |
| Type of Product | Vacuum pump |
| Manufacturer | FEZER |
| Shelf No. | 250303 |
