Hiwin HGH30CA Linear Guideway Block
Nuevo
En stock39 unidadesListo para enviar
90,49$
Bloque guía lineal de servicio pesado Hiwin HGH 30 CA con montaje superior, tamaño 30 mm, y altas cargas nominales de 48.5 kN dinámico y 71.87 kN estático, ideal para sistemas de movimiento de precisión.
30BlockCACNCGuideGuidewayHeavyHGHHGH30CAHiwinIndustrialLinearLoadmmMNRMotionMountingrailSquareSuperTop
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

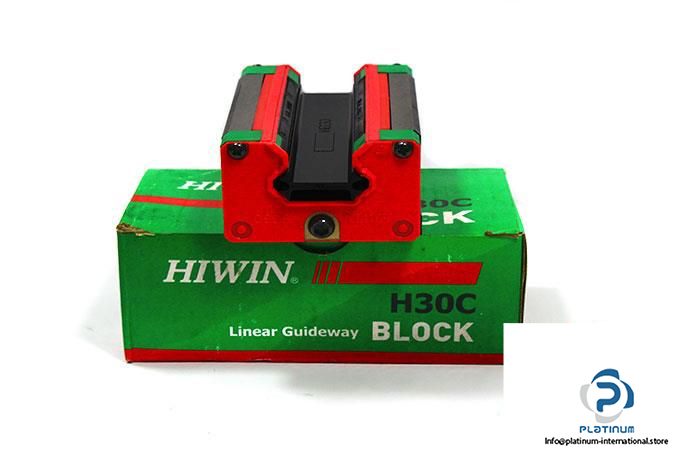

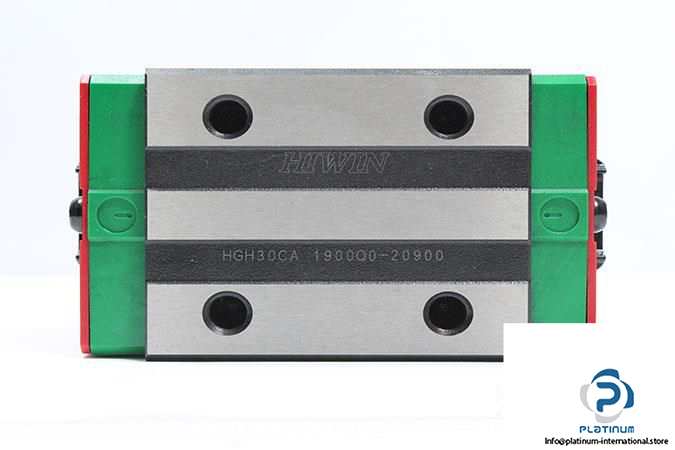

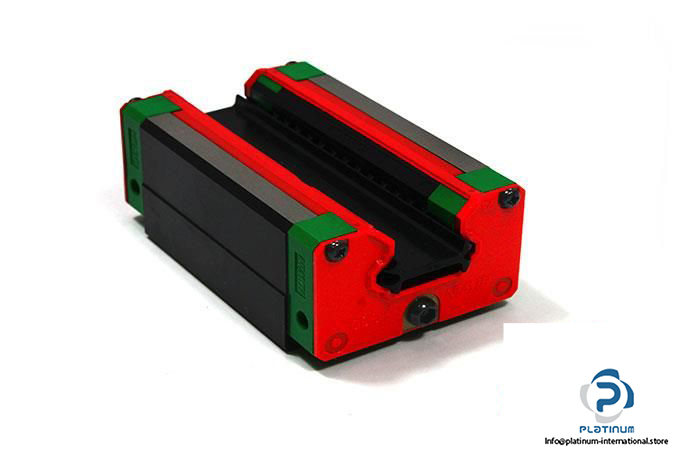

HIWIN HGH 30 CA LINEAR GUIDEWAY BLOCK
The Hiwin HGH 30 CA is a precision-engineered linear guideway block designed for heavy-duty motion systems. With a square block design and top mounting style, it ensures exceptional stability and high load-bearing capabilities, making it ideal for CNC, automation, and industrial applications requiring super heavy load support.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH 30 CA
| Size | 30 mm |
| Block Height | 39 mm |
| System Height | 45 mm |
| Block Width (W) | 60 mm |
| Block Length (L) | 97.4 mm |
| Thread Size | M8 x 25 |
| Distance Between Holes | 40, 40 mm |
| Rail Width | 28 mm |
| Rail Height | 26 mm |
| Block Type | Square |
| Load Type | Super Heavy Load |
| Block Mounting Type | From Top |
| Preload Code | ZA |
| Basic Dynamic Load Rating | 48.5 kN |
| Basic Static Load Rating | 71.87 kN |
