Hohner 21-211BR/300 Incremental Encoder
Usado
En stock1 unidadListo para enviar
ENCÓDER INCREMENTAL HOHNER 21-211BR/300 con resolución de 300 PPR, eje sólido de 6 mm, cuerpo de 40 mm y salida push-pull. Funciona a 11-30 V DC, ideal para sistemas de control de movimiento preciso.
21-211BR/3003006AutomationControlEncoderFeedbackHohnerIncrementalIndustrialmmMotionOutputPPRPullPushSensorsshaftSolid
Nuevo
En stock 215,00$
Este producto también está disponible completamente nuevo
Ver nueva versión →
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

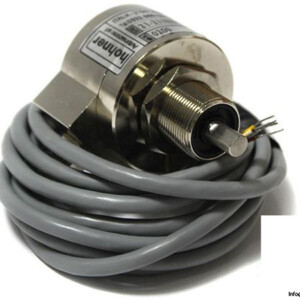

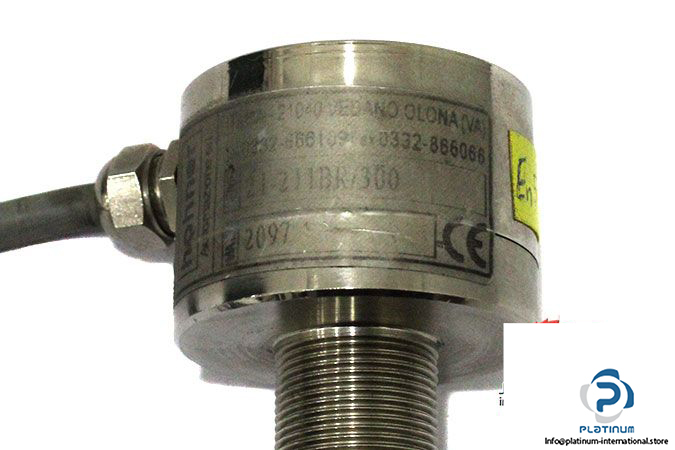

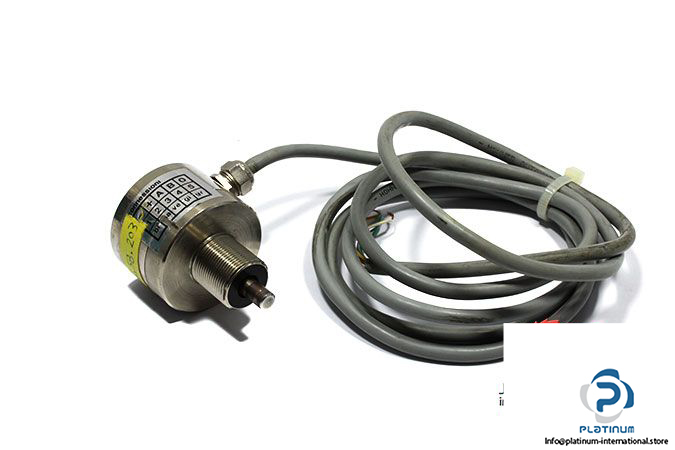

HOHNER 21-211BR/300 INCREMENTAL ENCODER
Engineered for high-resolution feedback in motion control applications, the HOHNER 21-211BR/300 incremental encoder offers excellent precision and reliability. With a compact 40 mm body and solid shaft design, this encoder is ideal for integration in automation systems where accuracy and durability are critical.
Manufacturer: HOHNER
Type: Incremental Encoder
Model: 21-211BR/300
Reference No.: 2097
| Shaft Design | Solid Shaft |
| Shaft Diameter | 6 mm |
| External Diameter | 40 mm |
| Resolution | 300 Pulse Per Revolution (PPR) |
| Power Supply | 11 / 30 V DC |
| Max. Frequency | 200 kHz |
| Current Consumption | 150 mA |
| Electronic Output | Push Pull |
| Type of Connection | Radial, Cable 1m |
| Protection Class | IP41 |
| Operating Temperature Range | -20 / 60 °C |
