Motion Control Rotary Encoders

Hubner Berlin OG 9 D 500 Incremental Encoder

Name: HUBNER BERLIN OG 9 D 500 INCREMENTAL ENCODER
SKU: 966300
Price: 379.99 USD
Availability: InStock


hubnerbaumer-og-9-d-500-incremental-encoder3_675x450

hubnerbaumer-og-9-d-500-incremental-encoder4_675x450

hubnerbaumer-og-9-d-500-incremental-encoder5_675x450




Usado

En stock1 unidadListo para enviar

379,99$

CODIFICADOR INCREMENTAL El HUBNER BAUMER OG-9-D-500 ofrece 500 PPR, salida de señal HTL y frecuencia de 120 kHz con diseño de eje sólido y protección IP 55, ideal para aplicaciones de automatización industrial.

Fabricante

HUBNER

SKU

966300

Categoría

Rotary Encoders

Condición

Usado

500 Aluminium Baumer Box die-cast Encoder HTL Hubner Incremental Industrial IP55 Motion OG-9-D-500 Output PPR Sensor shaft Solid terminal

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

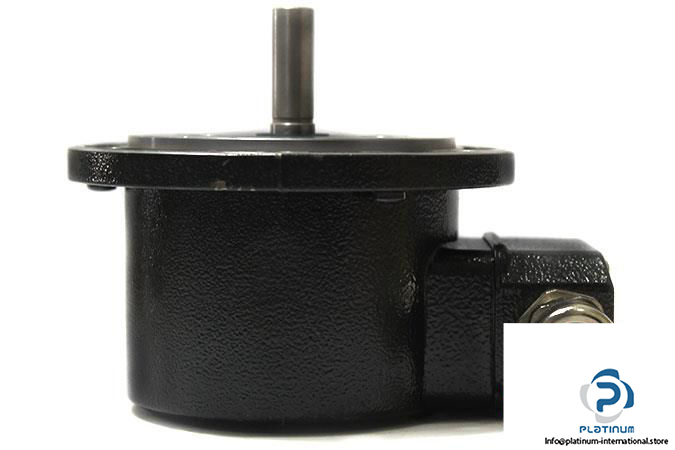

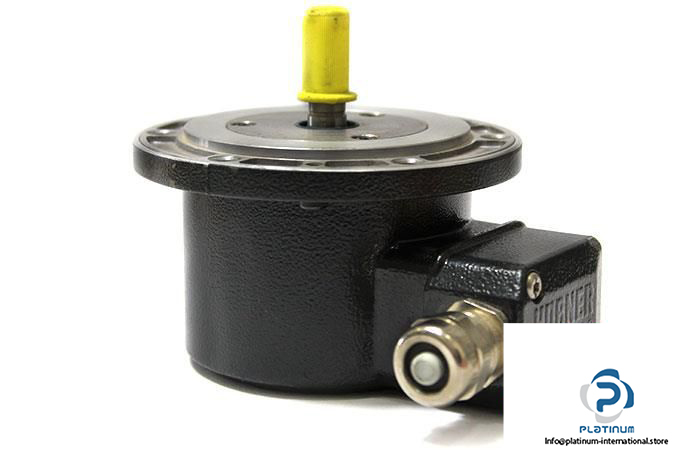

HUBNER BAUMER OG-9-D-500 INCREMENTAL ENCODER

Engineered for precision feedback in demanding automation environments, the HUBNER BAUMER OG-9-D-500 is a high-performance incremental encoder. It features robust construction, accurate signal output, and dependable performance, making it ideal for industrial motion control systems.

Manufacturer: HUBNER BAUMER

Type: Incremental Encoder

Model: OG-9-D-500

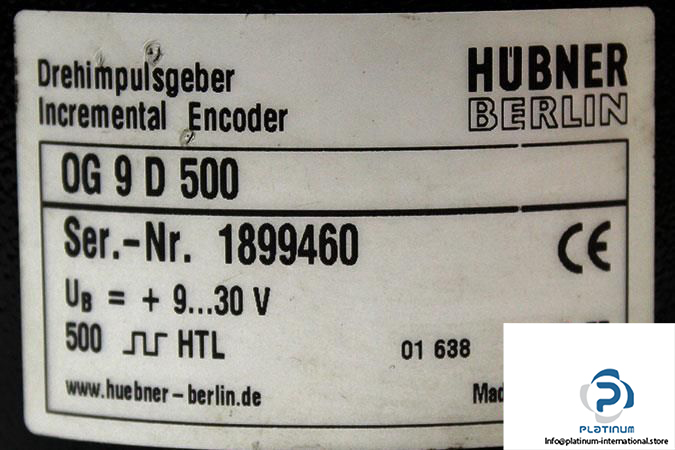

Serial No.: 1899460

Size (Flange)	115 mm

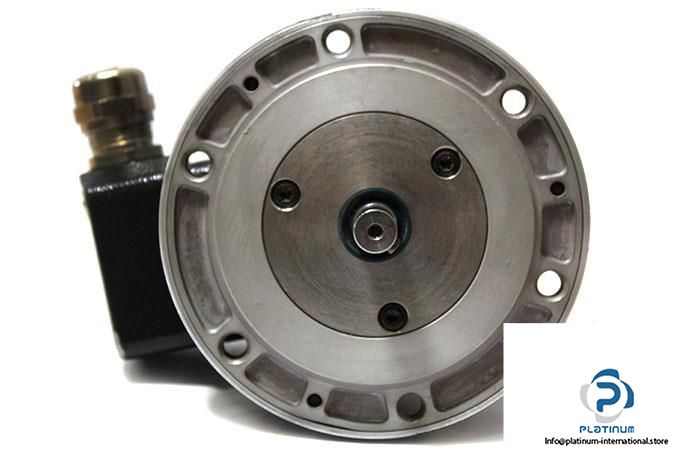

Flange Design	EURO Flange B10
Shaft Type	Solid Shaft
Shaft Diameter	11 mm
Voltage Supply	9 / 30 VDC
Revolution	500 Pulse per Revolution (PPR)
Max. Operating Speed	1200 rpm
Signal Output	HTL
Connection Type	Terminal Box
Output Frequency	120 kHz
Protection Class	IP 55
Housing Material	Aluminium Die-Cast
Shaft Material	Stainless Steel
Operating Temperature	-30 / 100 °C
