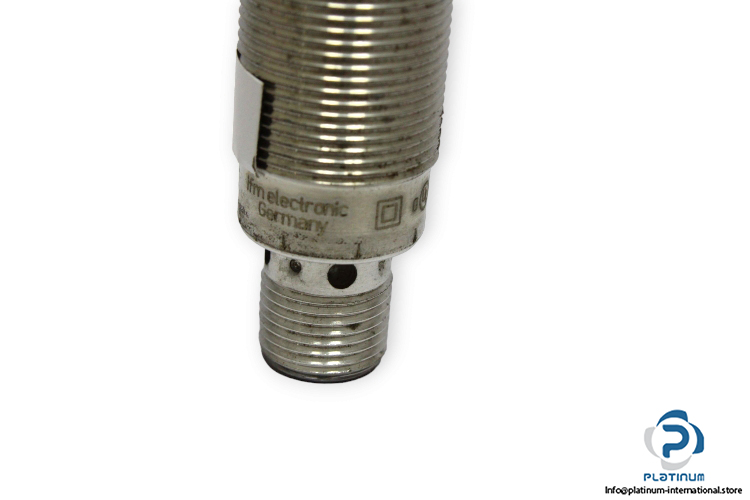

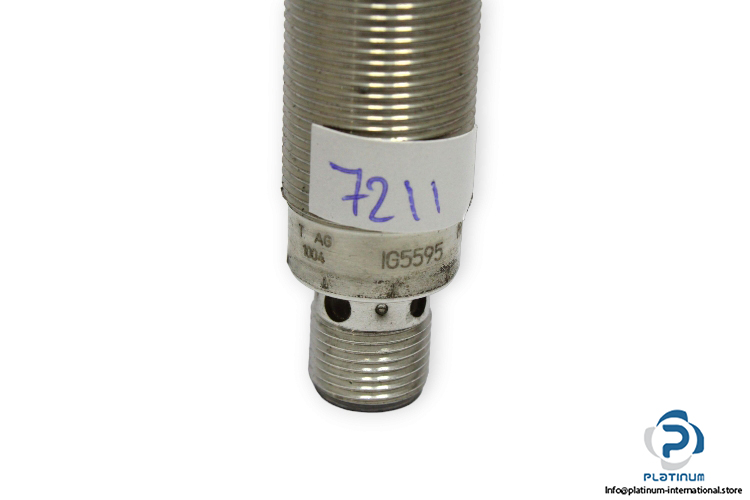

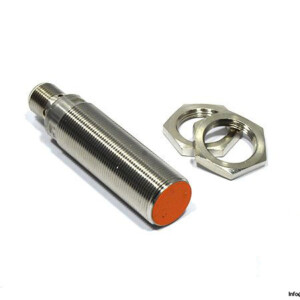

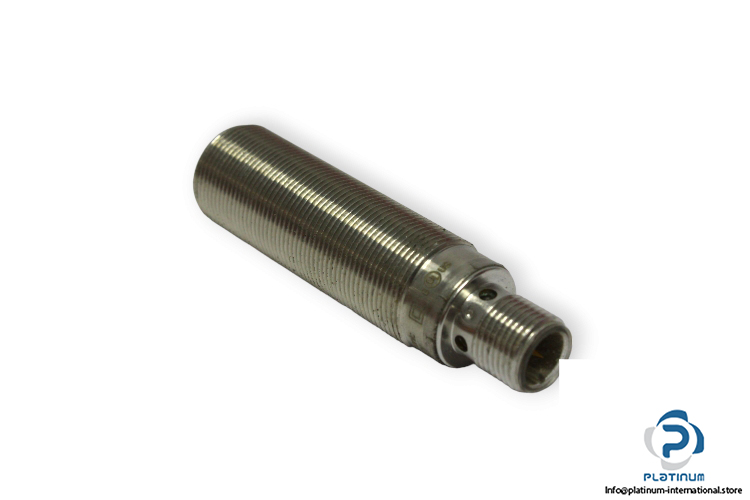

IFM IG5595 Inductive Sensor

Manufacturer: IFM
Type: Inductive Sensor
Model: IG5595
MNR: IGA2005-FRKG/US

Sensing Range: 5 mm
Operating Distance: 0 … 4.05 mm
Operating Voltage: 10 … 55 V DC
Electrical Design: PNP/NPN
Switching Output: Normally Open And Normally Closed (Selectable)
Current Rating: 400 mA DC
Switching Frequency: 700 Hz
Connector type: M12 Connector
Dimensions: M18,76 mm
Housing Material: Brass White Bronze Coated; Sensing Face: PC
Protection Class: IP67
Operating Temperature: -25 … 80°C
