ISB KBF 25 PP Linear Ball Bushing
Buje lineal de bolas El buje lineal de bolas ISB KBF25PP cuenta con un diámetro de orificio de 25 mm, un diámetro exterior de 40 mm y una capacidad de carga dinámica de 1000 N, garantizando un movimiento preciso y fiable para aplicaciones lineales con sellos dobles para protección.

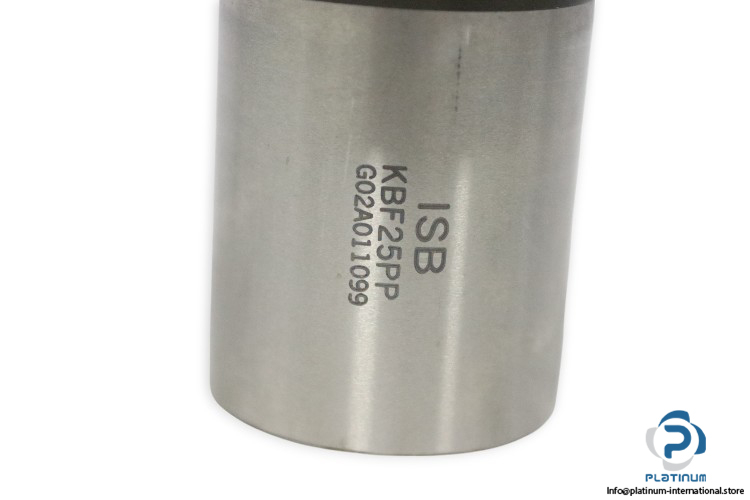

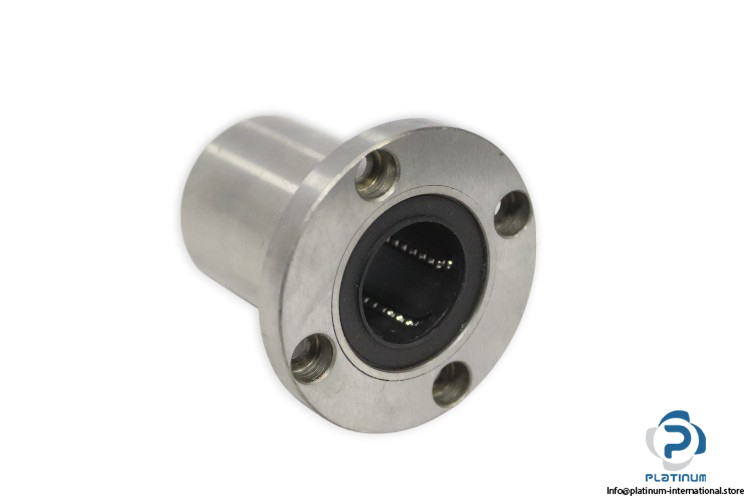

ISB KBF25PP Linear Ball Bushing
The ISB KBF25PP Linear Ball Bushing is designed for high precision and durability, offering smooth and reliable motion in a wide range of industrial applications. Featuring 6 ball rows and dual-side seals, it ensures optimal performance under load conditions.
Manufacturer: ISB
Type: LINEAR BALL BUSHING
Model: KBF25PP
Basic Load Rating:
This ISB linear ball bushing is engineered to deliver reliable, long-lasting performance, providing precise and smooth motion for linear guide applications with high load capacities.

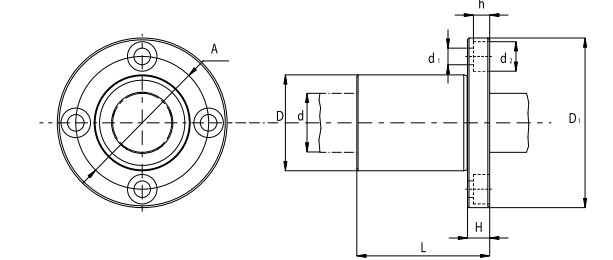

| Number of Ball Rows | 6 |
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 40 mm |
| D1 | 62 mm |
| H | 8 mm |
| A | 51 mm |
| Length | 58 mm |
| d1xd2xh | 5.5 x 9.5 x 5.4 mm |
| Dynamic Load Rating | 1000 N |
| Static Load Rating | 1600 N |
| Sealing | PP, Seals on Both Sides |
