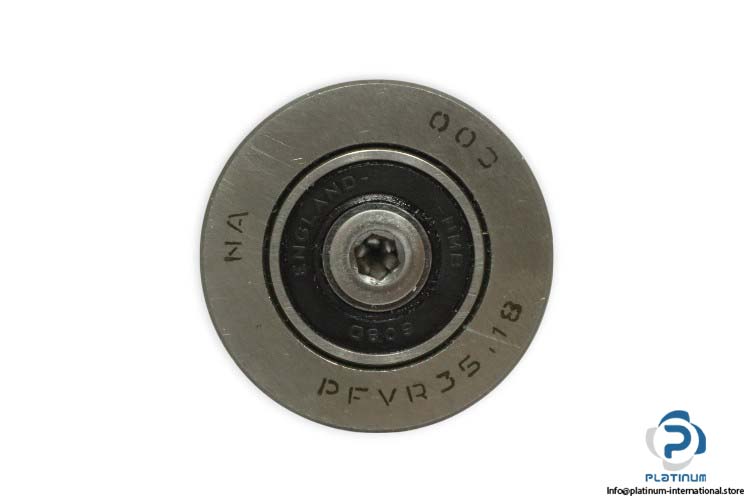

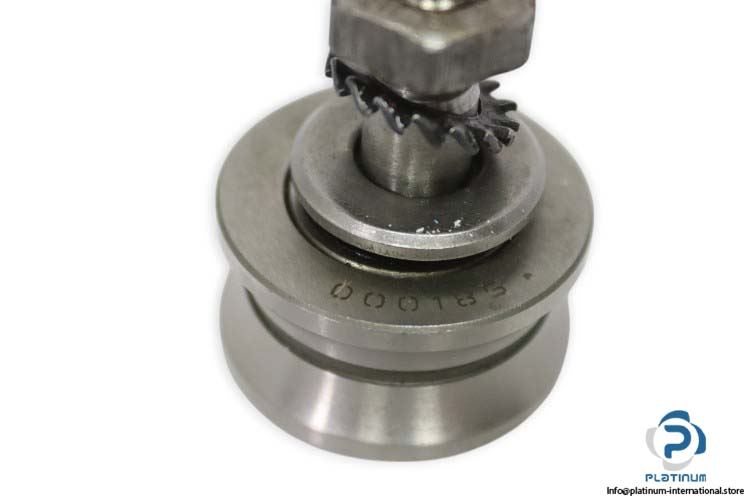

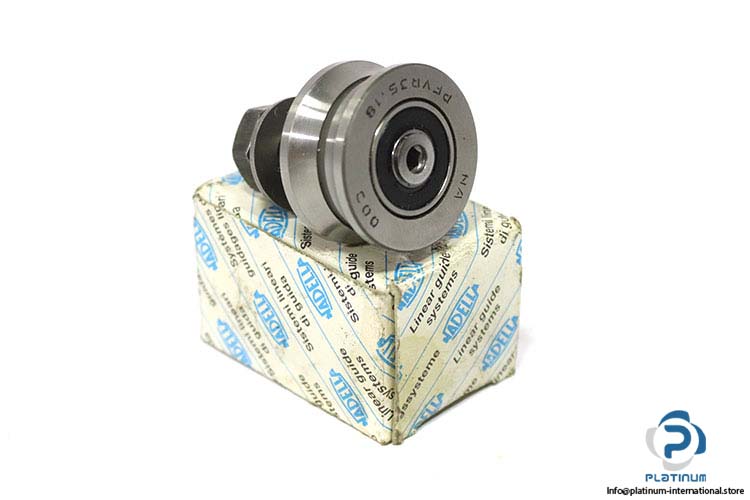

Nadella PFVR35.18 Guide Roller
Nuevo
En stock1 unidadListo para enviar
RODILLO DE GUÍA Nadella PFVR35.18 rodillo guía excéntrico con un diámetro exterior de 35 mm, diámetro del eje del riel de 18 mm y capacidad de carga dinámica de 4550 N. Diseñado para un movimiento lineal preciso y suave.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
NADELLA PFVR35.18 GUIDE ROLLER
The Nadella PFVR35.18 Guide Roller is an eccentric design roller engineered for smooth and precise linear motion in guided rail systems. Built for durability, it offers high load capacity and precision alignment in demanding industrial environments.
Manufacturer: Nadella
Type: Guide Roller
Model: PFVR35.18
| Design | Eccentric |
| Outside Diameter (De) | 35 mm |
| Guide Rail Shaft Diameter (dB) | 18 mm |
| Stud Diameter (d1) | 10 mm |
| Total Length (L) | 45.3 mm |
| Width Outer Ring (A) | 18 mm |
| Thread Stud (d) | M10 x 1.25 |
| Basic Load Ratings Dynamic | 4550 N |
| Limit Loads of the Stud “ Radial (Fr) | 1500 N |
| Limit Loads of the Stud “ Axial (Fa) | 350 N |
| Torque Wrench Settings | 20 Nm |
| Pressure Angle (α) | 60° |
| Housing Bore Tolerance | H7 |
