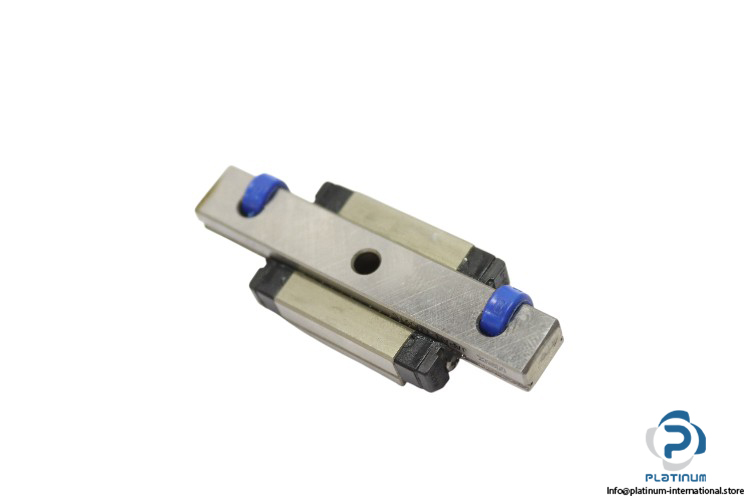

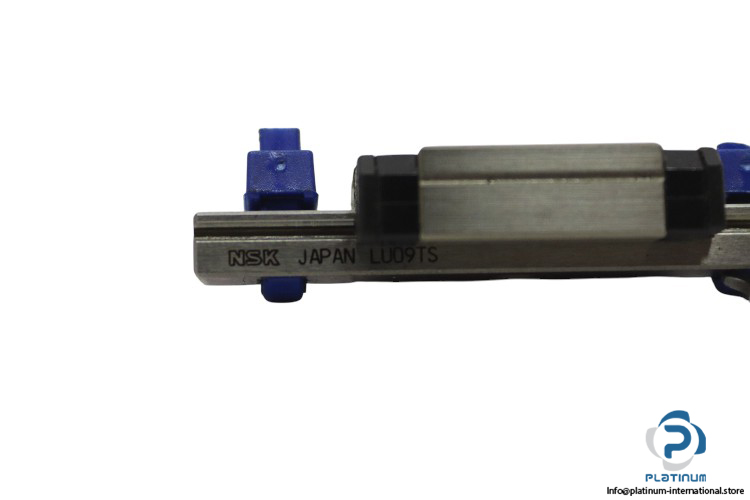

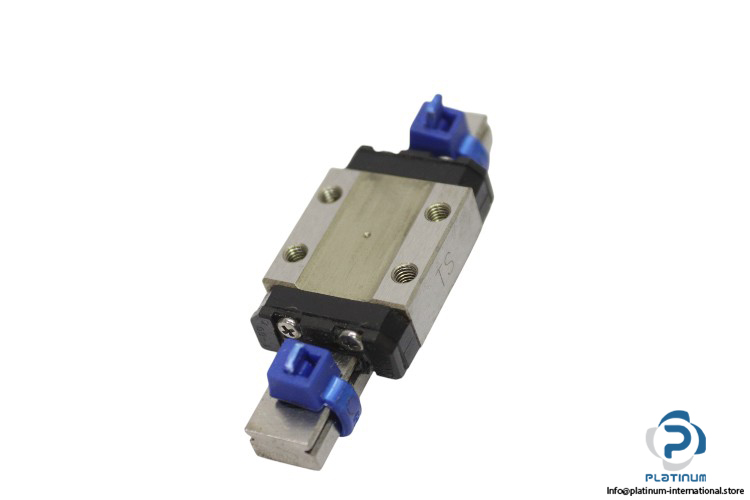

NSK LU09TS Linear Guideway Block
Usado
En stock2 unidadesListo para enviar
Bloque de guía lineal compacto y duradero NSK LU09TS de tamaño 9 mm y riel de 55 mm, diseñado para control de movimiento de alta precisión y soporte confiable de carga en espacios reducidos.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
NSK LU09TS LINEAR GUIDEWAY BLOCK
The LU09TS linear guideway block by NSK is engineered for smooth and precise linear motion. Designed for compact applications, it delivers reliable performance and durability in systems requiring accurate positioning and consistent load support.
Manufacturer: NSK
Type: Linear Guideway Block
Model: LU09TS
| Size | 9 mm |
| Total Height (H) | 10 mm |
| Block Width (W) | 20 mm |
| Block Length (L) | 26.8 mm |
| Block Height (K) | 7.8 mm |
| Distance Between Holes | 15 mm |
| Pitch | 20 mm |
| Rail Length | 55 mm |
| Basic Load Rating “ Dynamic (Cr) | 1400 N |
| Basic Load Rating “ Static (C0r) | 2220 N |
| Mounting Hole | M3 x 0.5 x 3 |
