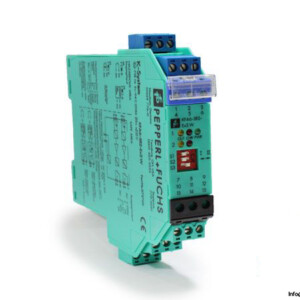

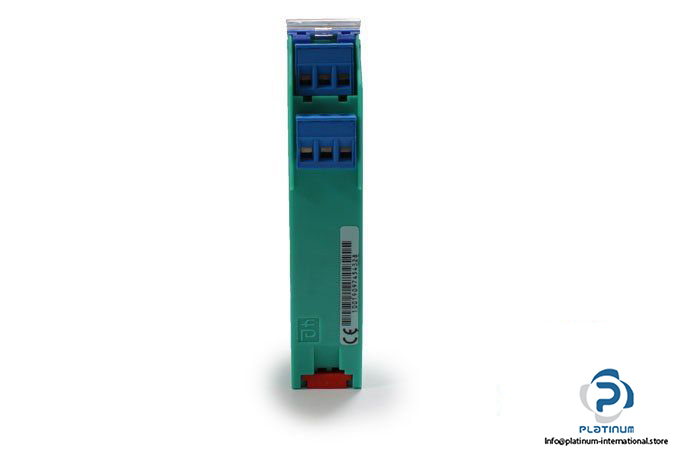

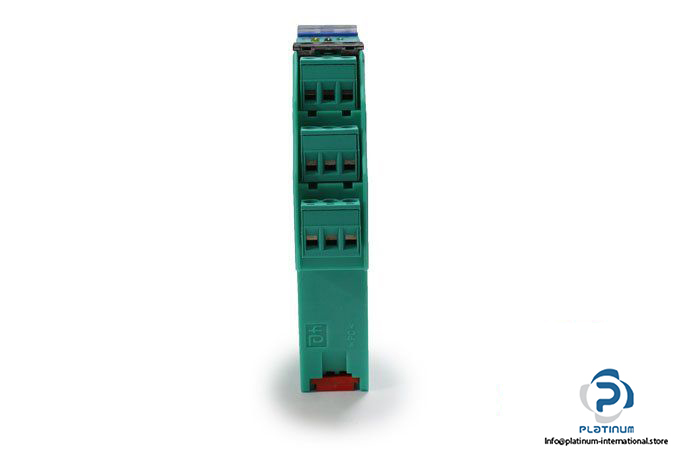

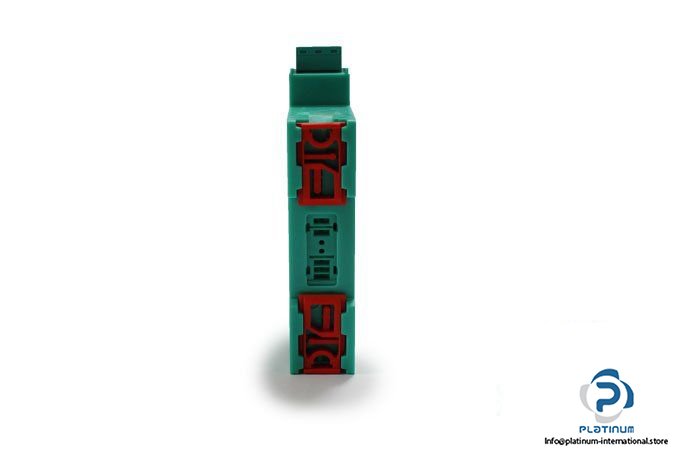

Pepperl+Fuchs KFA6-SR2-EX2.W Switch Amplifier
39,99$
Amplificador de conmutación El amplificador de conmutación Pepperl+Fuchs KFA6-SR2-EX2.W proporciona aislamiento seguro y transmisión de señal fiable entre sistemas de campo y control. Diseñado para la automatización industrial, opera con 207“253 VAC y asegura una conversión de entrada digital estable con dimensiones compactas de 20 x 119 x 115 mm.
Pepperl+Fuchs KFA6-SR2-EX2.W Switch Amplifier
The Pepperl+Fuchs KFA6-SR2-EX2.W is a high-quality switch amplifier designed for safe signal transmission between field devices and control systems. It ensures reliable isolation and conversion of digital input signals in hazardous and industrial environments, providing dependable performance with minimal power loss.
Manufacturer: Pepperl+Fuchs
Type: Switch Amplifier
Model: KFA6-SR2-EX2.W
Part No.: 37370S
Input
Output
Environmental Data
| Signal Type | Digital Input |
| Supply Voltage | 207 / 253 VAC |
| Frequency | 45 / 65 Hz |
| Supply Power Loss | 1.2 W |
| Power Consumption | ‰¤ 1.3 W |
| Connection | terminals 14, 15 |
| Connection Side | Field side |
| Connection | terminals 1+, 2+, 3-; 4+, 5+, 6- |
| Open Circuit Voltage / Short-Circuit Current | approx. 8 VDC / approx. 8 mA |
| Switching Point / Switching Hysteresis | 1.2 / 2.1 mA / approx. 0.2 mA |
| Connection Side | Control side |
| Connection | Output I: terminals 7, 8, 9; Output II: terminals 10, 11, 12 |
| Energized / De-energized Delay | approx. 20 ms / approx. 20 ms |
| Ambient Temperature | -20 / 60 °C |
| Dimensions | 20 x 119 x 115 mm |
