Pepperl+Fuchs NJ2.5-F-N Inductive Sensor
Usado
En stock1 unidadListo para enviar
Inductive Sensor
Reliable PEPPERL+FUCHS inductive sensor with 2.5 mm sensing range, NAMUR NC output, and IP67 protection, ideal for industrial automation applications.2.5mmAutomationHousingInductiveIndustrialIP67NamurNJ2.5-F-NPBTPepperl+FuchsProximityRangeSensingSensor
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

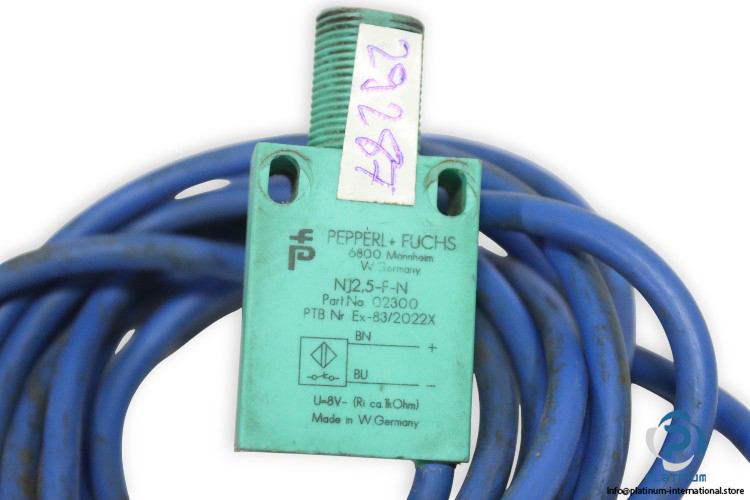

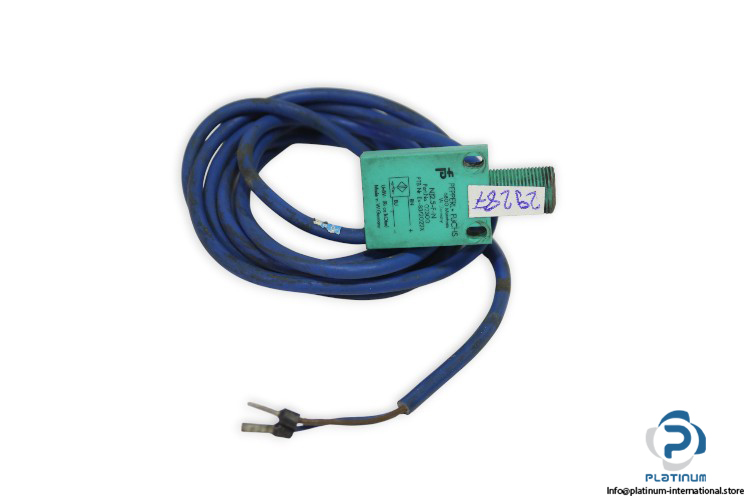

PEPPERL+FUCHS NJ2.5-F-N Inductive Sensor
The PEPPERL+FUCHS NJ25FN is a high-performance inductive sensor designed for precision detection in industrial environments. With a compact design and robust PBT housing, it delivers reliable operation even under harsh conditions.
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ2.5-F-N
Part No.: 02300 / 08275S
| Sensing Range | 2.5 mm |
| Nominal Voltage | 8 V |
| Current Consumption | Measuring Plate Detected ‰¤ 1 mA / Not Detected ‰¥ 3 mA |
| Switching Output | NAMUR, Normally Closed (NC) |
| Switching Frequency | 0 ... 2000 Hz |
| Electrical Connection | PVC Cable, 2-Wires, 2m |
| Housing Material | PBT |
| Protection Class | IP67 |
| Ambient Temperature | -25 / 100 °C |
| Dimensions | 56 x 27 x 12 mm |
