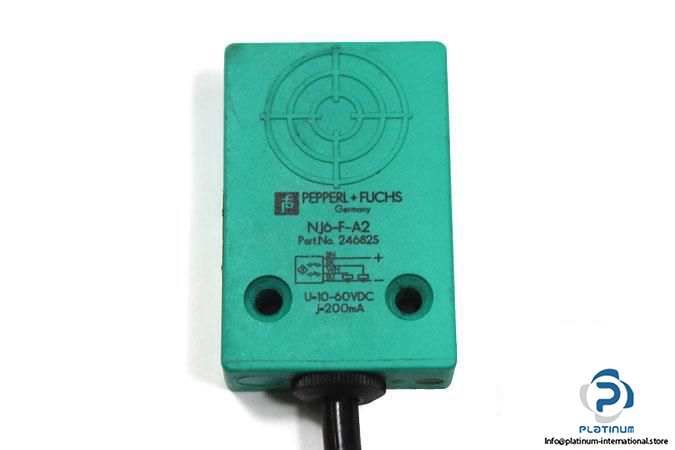

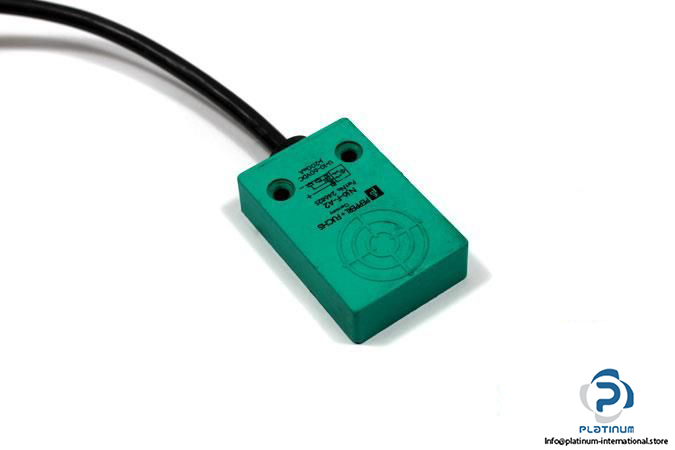

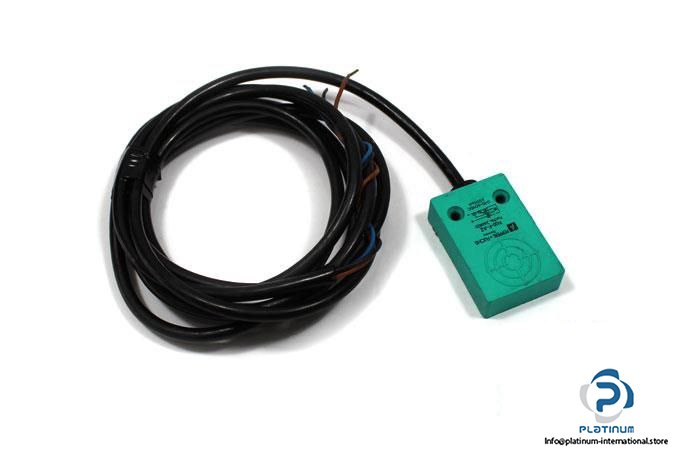

Pepperl+Fuchs NJ6-F-A2 Inductive Sensor

Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model No.: NJ6-F-A2
Part No.: 24682S

Rated operating distance: 6 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 0 … 200 mA
Switching frequency: 0 … 500 Hz
Electrical design: PNP
Switching output: Normally open/Normally closed
Protection class: II
Enclosure rating: IP67
Connection type: PUR cable, 2 m
Ambient Operating temperature: -25 … 70°C
Dimensions: 30 x12 x 45 mm
Housing material: PBT
Sensing face material: PBT
Mounting: Flush mountable
