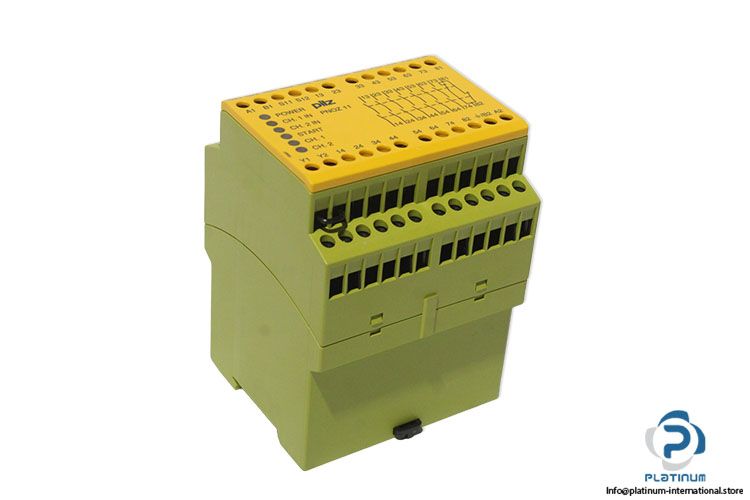

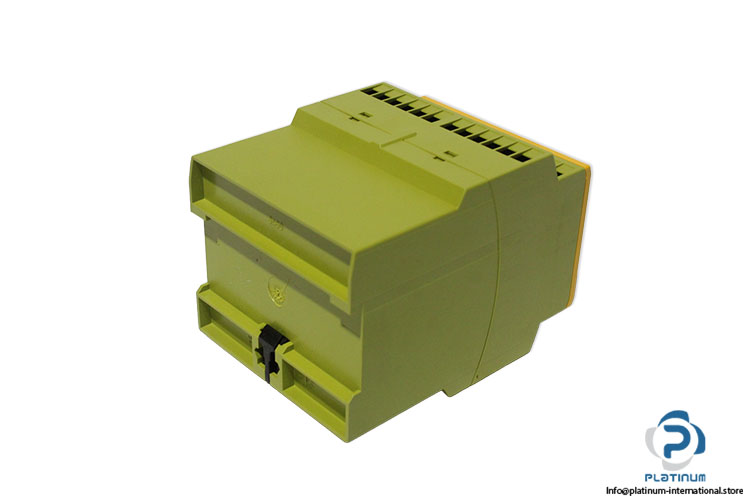

Pilz Pnoz 11 24VAC 24VDC 7N/O 1N/C Safety Relay
Nuevo
En stock1 unidadListo para enviar
Safety Relay PILZ PNOZ-11 safety relay with 24 V AC/DC supply and 7 NO + 1 NC output contacts, designed for industrial safety monitoring and automation applications.
Usado
En stock
Este producto también está disponible usado
Ver versión usada →
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 774080, 140414 |
| Supply voltage | 24 V DC,24 V AC |
| Power | 3.5 W /9 VA |
| Frequency | 50 … 60 Hz |

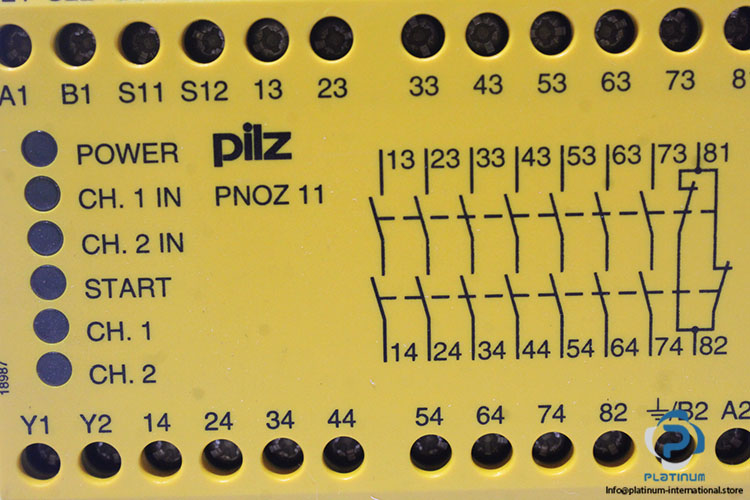

| No. of output contacts | 7 Normally open contact,1 Normally closed contact |
| Number of Channels | 1;2 |
| Relay Type | Monitoring |
| Terminal Type | Screw |
| Switching capacity | AC15: 230 V AC,5 A/AC1: 240 V AC,8 A/DC13: 24 V DC,7 A/DC1: 24 V DC,8 A |
| Blow-out fuse, quick Safety contacts | 10 A |
| Blow-out fuse, slow Safety contacts | 6 A |
| Ambient temperature | -10 … 55 °C |
| Protection type | Mounting: IP54, Housing: IP40,Terminals: IP20 |
| Dimensions | 90 x 121 x 87 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093804 |
| Weight | 0,72 |
