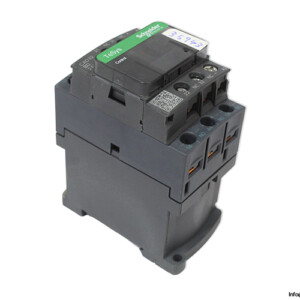

Schneider CAD32BD Control Relay
Relé de control Schneider Electric TeSys Deca CAD32 BD con tensión de circuito de control de 24 V DC, 3 contactos NO + 2 contactos NC, y tecnología integrada de supresión por diodo limitador bidireccional.
Schneider Electric CAD32 BD Control Relay

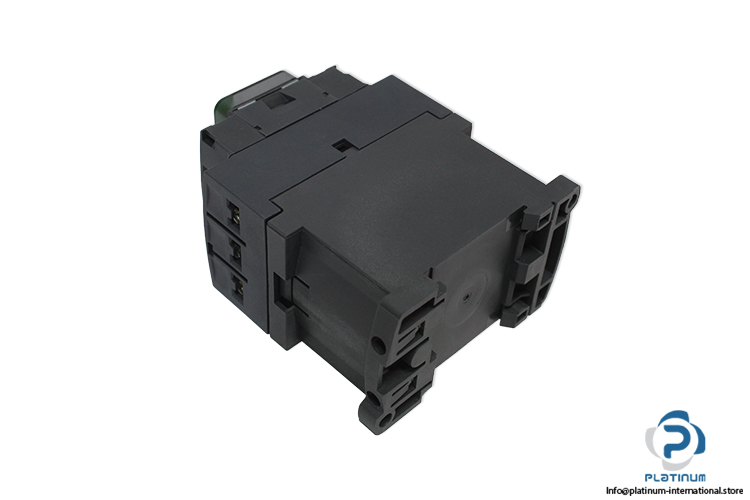

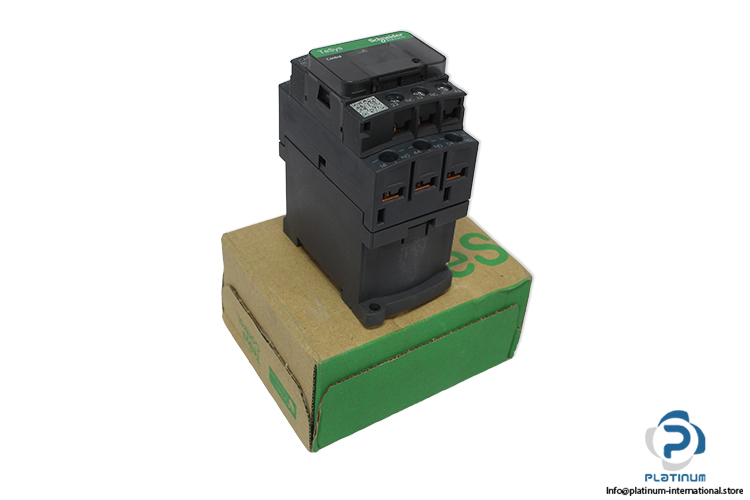

The Schneider Electric CAD32 BD control relay from the TeSys Deca range is designed for reliable switching and control applications in industrial automation systems. This relay features multiple contact configurations and integrated suppression technology to ensure stable control circuit operation.
Manufacturer: Schneider Electric
Type: Control Relay
Model: CAD32 BD

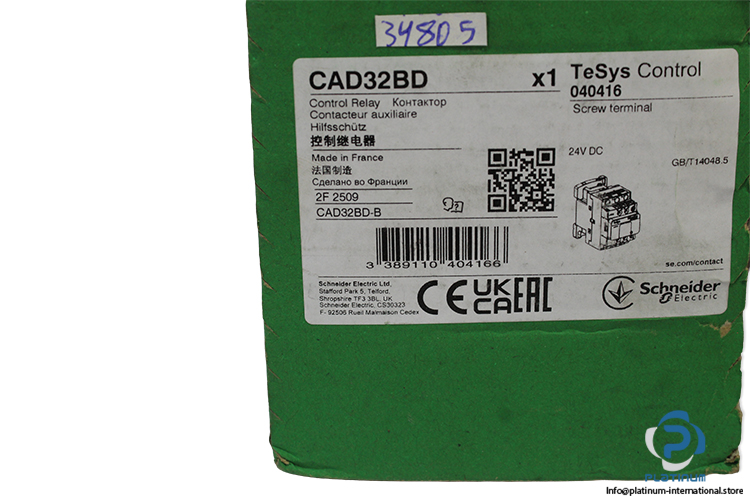

Order No: 040416
Code: 2F 2509
Serial Number: 3389110404166
Standards
Additional Information
| Range | TeSys Deca |
| Short Name | CAD |
| Control Circuit Voltage | 24 V DC |
| Rated Operational Voltage | 690 V AC |
| Operational Current | 10 A |
| Power Consumption | 5.4 W |
| Frequency | 25 / 400 Hz |
| Rated Impulse Voltage (Uimp) | 6 kV |

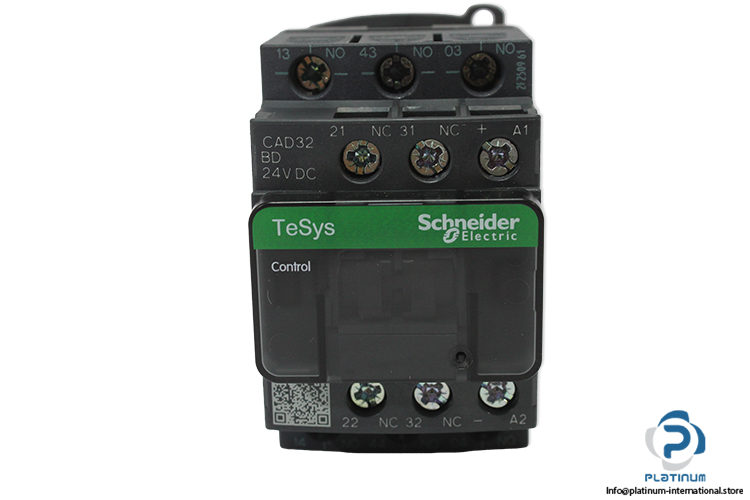

| Contacts | 3 Normally Open (NO) + 2 Normally Closed (NC) |
| Protection Class | IP20 |
| Operation Temperature | -40 / 60 °C |
| Dimensions | 77 x 45 x 93 mm |

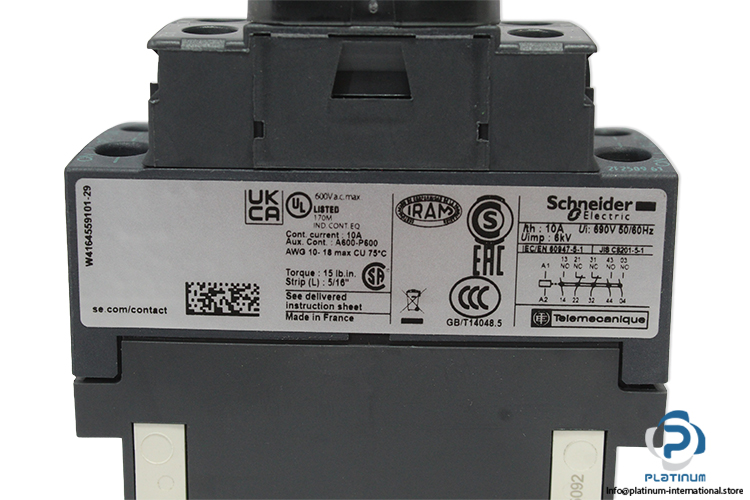

| EN/IEC | 60947-5-1 |
| GB/T | 14048.5 |
| UL | 60947-5-1 |
| CSA | C22.2 No 60947-5-1 |
| JIS | C8201-5-1 |

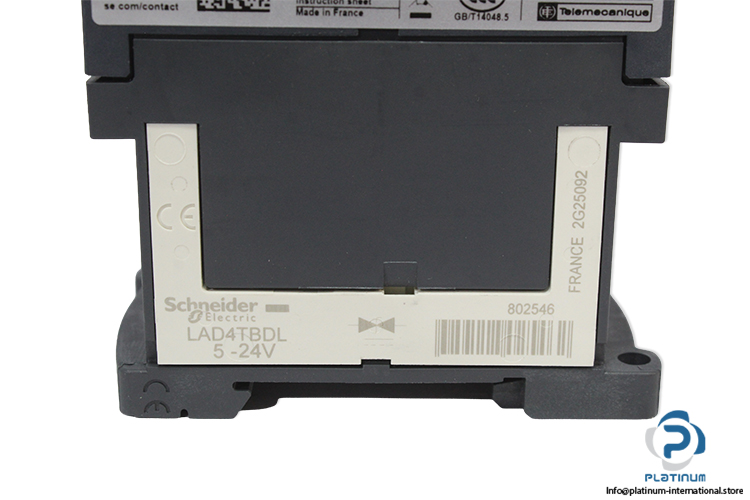

| Contains Of | Schneider LAD4TBDL Contactor Bi-Directional Limiting Diode |
| Mounting Location | Side |
| Mounting Mode | By Clips |
| Suppressor Technology | Bidirectional Peak Limiting Diode |
| [Uc] Control Circuit Voltage | 24 V DC |
