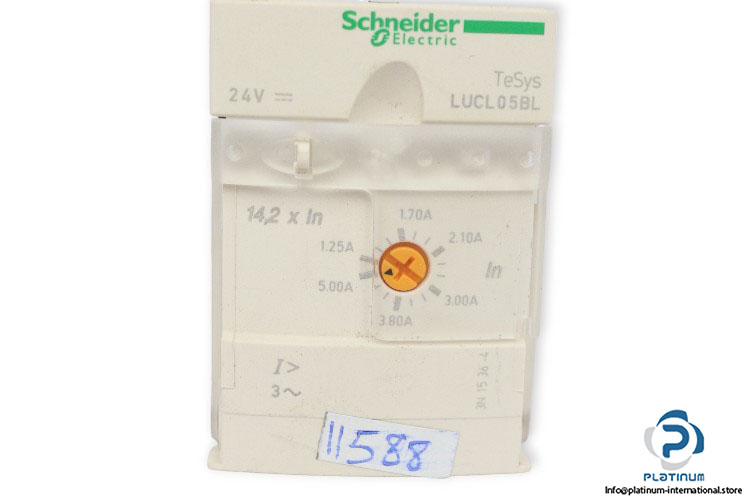

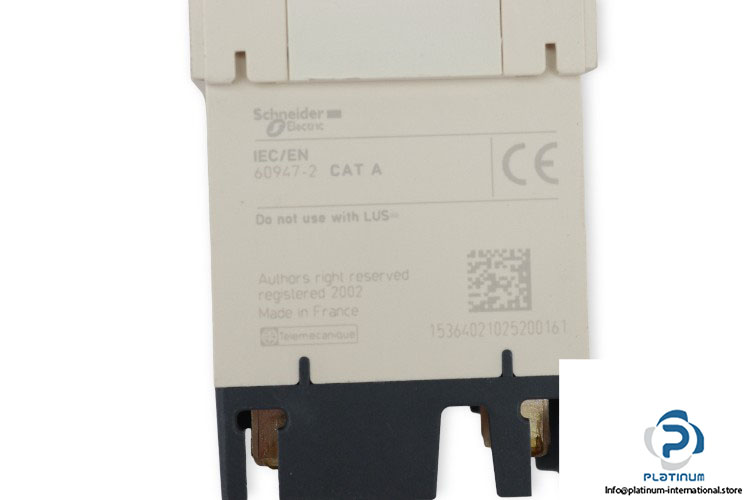

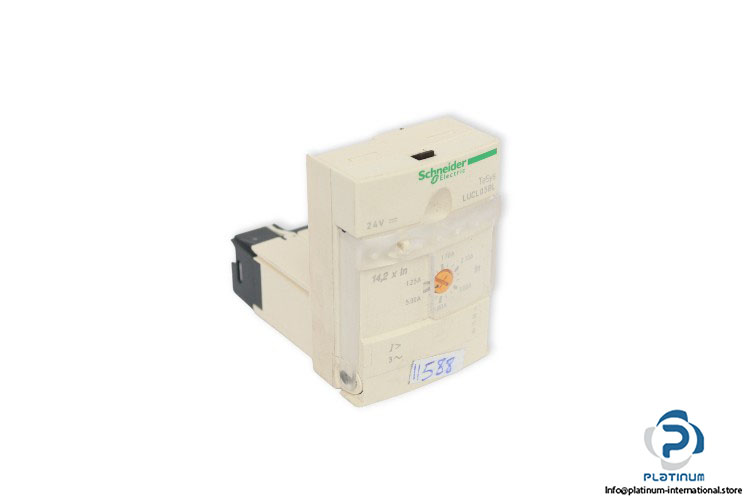

Schneider LUCL05BL Standard Control Unit
Fabricante: Schneider electric Tipo: Unidad de control estándar Modelo: LUCL05BL Gama: TeSys Nombre corto del dispositivo: LUCL
Manufacture: Schneider electric
Type: Standard Control Unit
Model: LUCL05BL
Range: TeSys
Device Short Name: LUCL
Device Application: Motor control, Motor protection
Control Circuit Voltage Uc: 24 V DC (20 … 27 V DC)
Rated Motor Current Adjustment Range: 1.25 … 5 A
Rated Operational Voltage Ue: 690 V AC
Rated Impulse Withstand Voltage Uimp: 6 kV
Rated Insulation Voltage Ui: 690 V
Network Frequency: 40 … 60 Hz
Fixing Mode: Plug-in (front face)
Load Type: 3-phase motor – cooling: self-cooled
Motor Power: 1.5 kW at 400…440 V AC 50/60 Hz
Degree of Protection: IP20
Standard: IEC/EN 60947-2
Tripping Threshold: 14.2 x Ir +/- 20 %
Ambient Air Temperature for Operation: -25 … 70 °C
Dimensions: 45 x 66 x 60 mm
