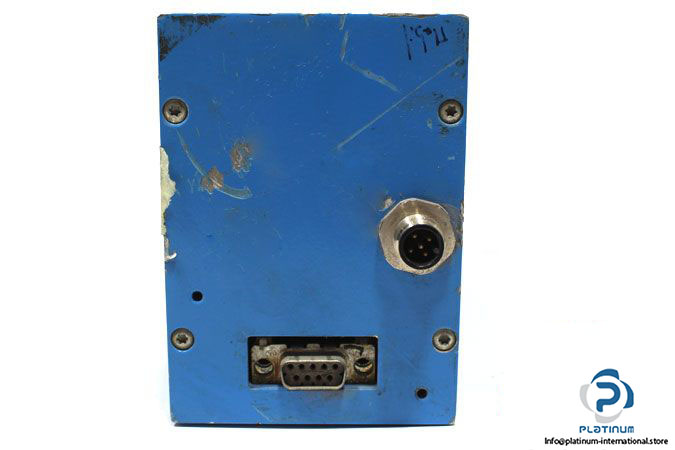

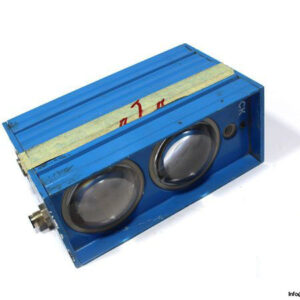

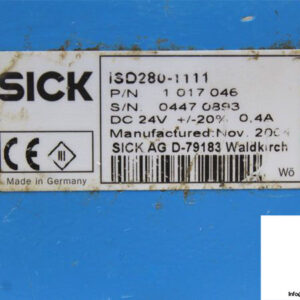

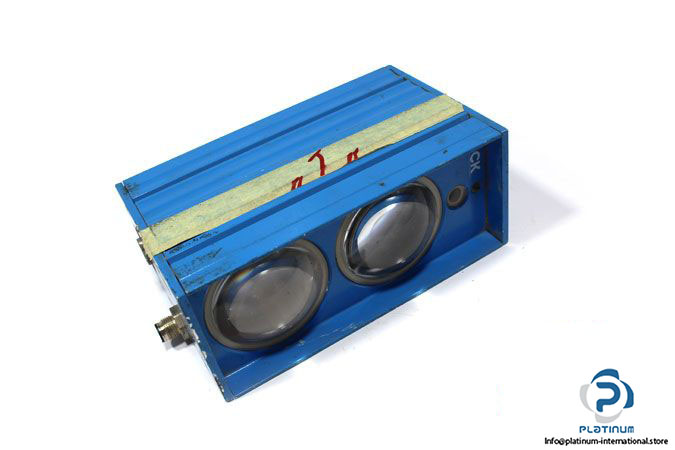

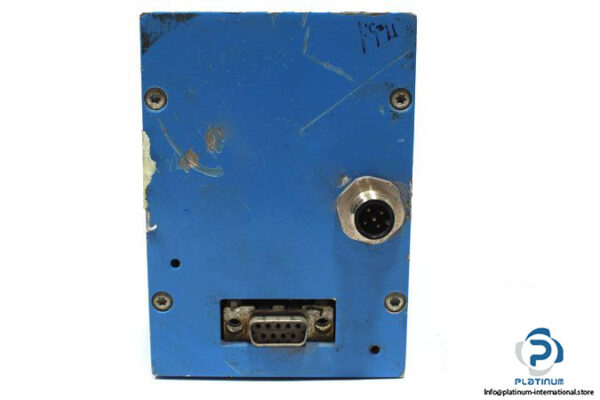

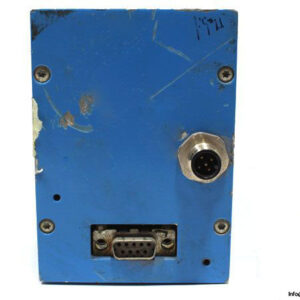

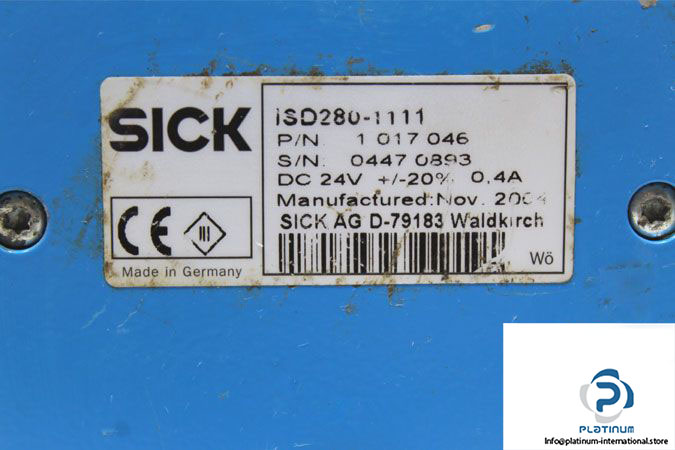

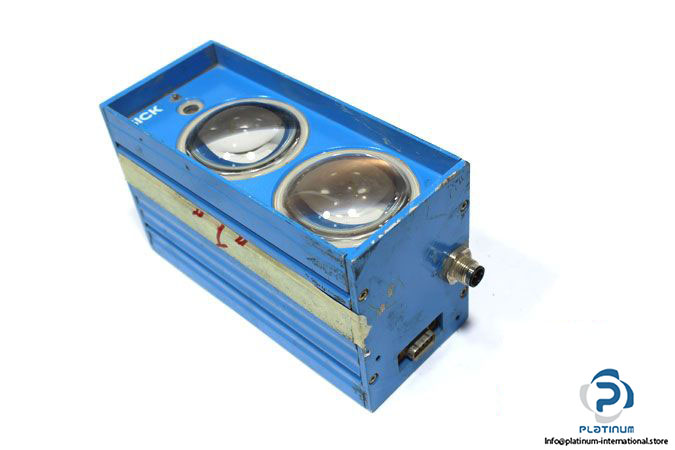

Sick ISD280-1111 Optical Data Transmitter

Manufacturer: SICK

Type: Optical Data Transmitter

Model: ISD280-1111

Part No.: 1017046

Transmission range: 0.2 m … 150 m

Light source: Infrared LED (860 nm)

Typ. light spot size (distance): 1.4 m (at 100 m)

Aperture angle: Ca. ± 0.4°

Data transmission rate: ≤ 1.5 MBaud

Switching output: UV – 2 V: fault-free operation, Iout = 20 mA

Data interface: RS-422/-485PROFIBUS DP

Switching input Vs: sender deactivated

Signal delay: ≤ 2 µs

Supply Voltage: 24 V DC

Connection type: Female Connector, Sub-D, 9-pin , M12 Connector, 5-pin

Current consumption: Without heating: ≤ 0.4 A, with heating: ≤ 2.5 A

Enclosure rating: IP 54

Protection class: III

Housing material: Metal

Ambient temperature: Operation without heating: 0 °C … +40 °C

Operation with heating: –38 °C … +40 °C
