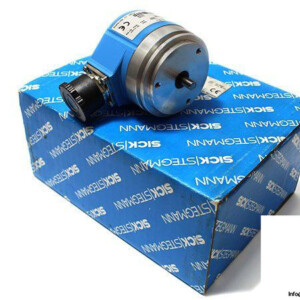

Sick Stegmann ARS60-A1A04096 Absolute Encoder
CODIFICADOR ABSOLUTO SICK|STEGMANN ARS60A1A04096 es un codificador absoluto de alta resolución con 4096 pasos, interfaz SSI, operación a 24 V DC y protección IP65, diseñado para tareas precisas de automatización industrial.
SICK|STEGMANN ARS60A1A04096 ABSOLUTE ENCODER
This high-resolution absolute encoder from SICK|STEGMANN is engineered for industrial precision and robust performance. Designed with a solid shaft and servo flange, the ARS60A1A04096 delivers reliable position feedback through an SSI interface and operates effectively in harsh environments.
Manufacturer: SICK|STEGMANN
Type: Absolute Encoder
Model: ARS60A1A04096
Part No.: 1031428 0408
| Mechanical Design | Servo Flange, Solid Shaft |
| Resolution | 4096 Steps per Revolution (12 bit) |
| Voltage Supply | 24 V DC |
| Operating Current | 60 mA |
| Operating Speed | ‰¤ 6,000 min-1 with Shaft Seal, ‰¤ 10,000 min-1 without Shaft Seal |
| Communication Interface | SSI |
| Initialization Time | 80 ms |
| Connector Type | Male Connector, M23, 12-Pin, Radial |
| Material | Aluminum Die Cast |
| Protection Class | IP65 |
| Temperature Range | -20 to 85 °C |
| Shaft Diameter | 6 mm |
| Encoder Diameter | 59.5 mm |
| Dimensions | 54 x 59.5 x 90 mm |
