Motion Control Rotary Encoders

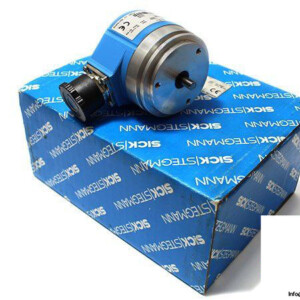

Sick Stegmann ARS60-A1A04096 Absolute Encoder

Name: SICK STEGMANN ARS60-A1A04096 ABSOLUTE ENCODER
SKU: 1034328
Availability: LimitedAvailability

sick-stegmann-ARS60-A1A04096-absolute-encoder-(Used)

sick-stegmann-ARS60-A1A04096-absolute-encoder-(Used)-1

sick-stegmann-ARS60-A1A04096-absolute-encoder-(Used)-2

Kullanılmış

Stokta2 ünitelerSevkiyata hazır

ABSOLUTE ENCODER SICK|STEGMANN ARS60A1A04096, 4096 adımlı yüksek çözünürlüklü mutlak encoder, SSI arabirimi, 24 V DC çalışma ve IP65 koruması ile hassas endüstriyel otomasyon görevleri için tasarlanmıştır.

Üretici

SICK |STEGMANN

SKU

1034328

Kategori

Rotary Encoders

Koşul

Kullanılmış

24v 4096 Absolute ARS60A1A04096 Automation Encoder Industrial IP65 Rated shaft Sick Solid SSI Stegmann Step

Yeni Stokta 500,00$

Bu ürün ayrıca yeni olarak da mevcuttur

Yeni Sürümü Görüntüle →

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

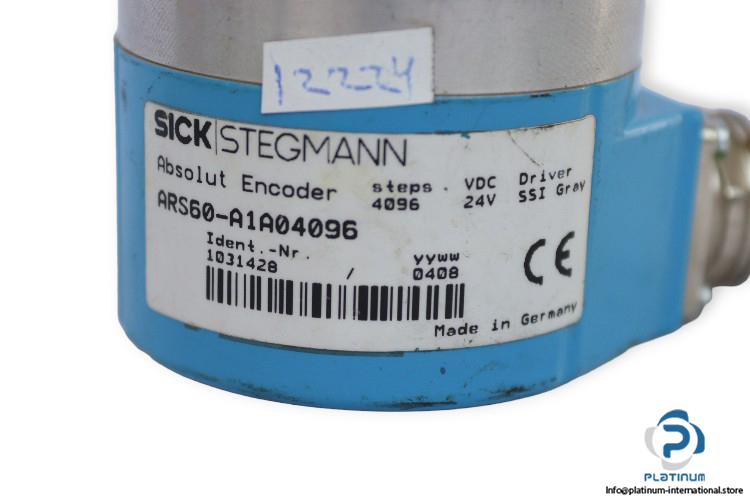

SICK|STEGMANN ARS60A1A04096 ABSOLUTE ENCODER

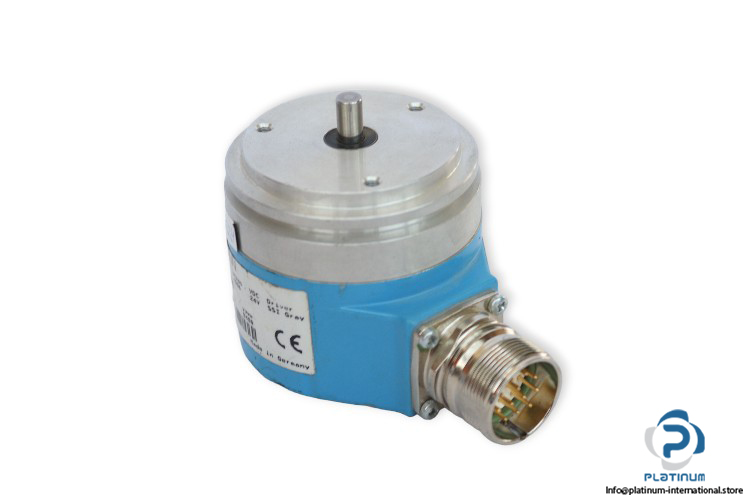

This high-resolution absolute encoder from SICK|STEGMANN is engineered for industrial precision and robust performance. Designed with a solid shaft and servo flange, the ARS60A1A04096 delivers reliable position feedback through an SSI interface and operates effectively in harsh environments.

Manufacturer: SICK|STEGMANN

Type: Absolute Encoder

Model: ARS60A1A04096

Part No.: 1031428 0408

Mechanical Design	Servo Flange, Solid Shaft
Resolution	4096 Steps per Revolution (12 bit)
Voltage Supply	24 V DC
Operating Current	60 mA
Operating Speed	‰¤ 6,000 min-1 with Shaft Seal, ‰¤ 10,000 min-1 without Shaft Seal
Communication Interface	SSI
Initialization Time	80 ms

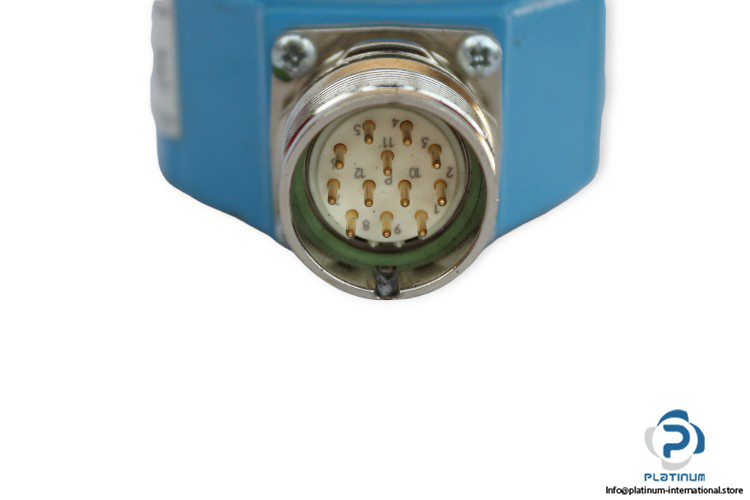

Connector Type	Male Connector, M23, 12-Pin, Radial
Material	Aluminum Die Cast
Protection Class	IP65
Temperature Range	-20 to 85 °C
Shaft Diameter	6 mm
Encoder Diameter	59.5 mm
Dimensions	54 x 59.5 x 90 mm
