Siemens 3RS1700-1DD00 Single Interface Converter

Name: SIEMENS 3RS1700-1DD00 SINGLE INTERFACE CONVERTER
SKU: 997509
Price: 39.99 USD
Availability: InStock

siemens-3rs1700-dd00-single-interface-converter

siemens-3rs1700-dd00-single-interface-converter-1

siemens-3rs1700-dd00-single-interface-converter-2

Nuevo

En stock1 unidadListo para enviar

39,99$

Convertidor de interfaz único compacto Siemens 3RS1 700-1DD00 para convertir entrada 0“10 V a salida 4“20 mA. Funciona con 24 V AC/DC con protección IP20 y terminales de tornillo.

Fabricante

SIEMENS

SKU

997509

Categoría

Solid State Relays

Condición

Nuevo

0-10 4-20 Analog Converter Current Industrial Interface mA screw Siemens Signal Sirius terminal to V voltage

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

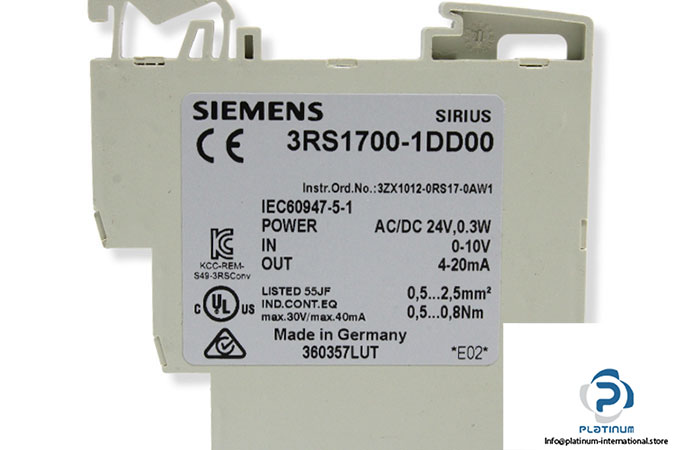

SIEMENS 3RS1 700-1DD00 SINGLE INTERFACE CONVERTER

The Siemens 3RS1 700-1DD00 is a compact and efficient single interface converter from the SIRIUS family, designed to convert standard analog voltage input signals into current output signals. Engineered for industrial control systems, it ensures reliable signal conversion with minimal power consumption.

Manufacturer: SIEMENS

Type: Single Interface Converter

Model: 3RS1 700-1DD00

MNR: 3ZX1012-0RS17-0AW1

SN: 360357LUT

Family: SIRIUS

Supply Voltage	24 V AC/DC
Type of Signal at Input	0 / 10 V
Type of Signal at Output	4 / 20 mA
Power	0.3 W
Conductor Cross-Section	0.25 / 2.5 mm²
Tightening Torque	0.5 / 0.8 N·m
Type of Connection	Screw-Type Terminals
Frequency	50 / 60 Hz
Ambient Temperature	-25 / +60 °C
Protection Class	IP20
Dimension	79 x 6.2 x 84 mm
