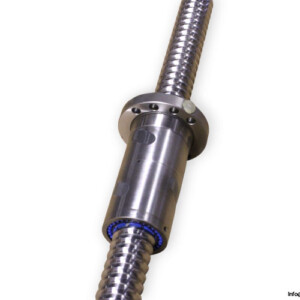

Steinmeyer 100451 Ball Screw

Name: STEINMEYER 100451 BALL SCREW
SKU: 1042261
Availability: LimitedAvailability

Nuevo

Disponible bajo solicitud

Fabricante: STEINMEYER Tipo: Tuerca brida estándar DIN, precarga sobredimensionada de bolas Modelo: 1416/10.40.700.830 Tipo de tuerca: 1416/10.40.7,5.4

Fabricante

STEINMEYER

SKU

1042261

Categoría

Screw & Ball Screws

Condición

Nuevo

40 Ball d0:flanged Linear mm Motion nut screw Steinmeyer

Inventario Masivo

Envío global

Soporte experto

Calidad Garantizada

Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/10.40.700.830
Nut type: 1416/10.40.7,5.4

Size: 40
Nominal Diameter d_N: 40 mm
Lead P: 10 mm
No. of circuits i: 4
Ball diameter d_W: 7.5 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 59 kN
Static load rating C_0a: 95.1 kN
Stiffness R_{nu, ar}: 520 N/µm
Threaded length: 700 mm
Total screw length: 830 mm
L1: 16 mm
D4: 78 mm

Especificación	Valor
Weight	7,4 kg
Condition	New
Size	40 x 10 R
Manufacturer	STEINMEYER
Type of Product	BALL SCREW
Flange Diameter [mm]	93 mm
Nut Outer Diameter [mm]	63 mm
Flange Thickness [mm]	14 mm
Cutting Flange Width [mm]	70 mm
Nut Length [mm]	97 mm
Shelf No.	240805
