BAUMER HUBNER TDP 0,2 LT-4 TACHOGENERATOR with OG 9 D 500 Encoder
Utilisé
Disponible sur demande
600,00$
Tachogénérateur avec encodeur BAUMER HUBNER TDP 0,2 LT-4 tachogénérateur avec encodeur incrémental OG 9 D 500 offre un retour précis de tension et d'impulsions, idéal pour les applications exigeantes de surveillance de vitesse.
0.25009BaumerDEncoderEuroFeedbackFlangeHighHubnerIncrementalIndustrialLT-4OGPPRPrecisionPullPushSensorshaftSolidSpeedTachogeneratorTDP
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

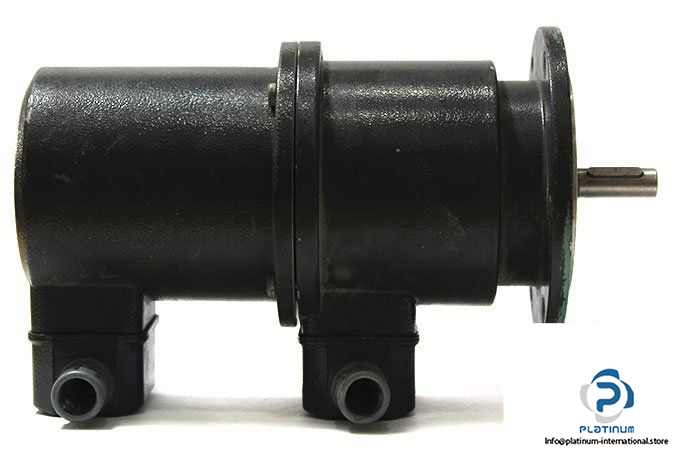

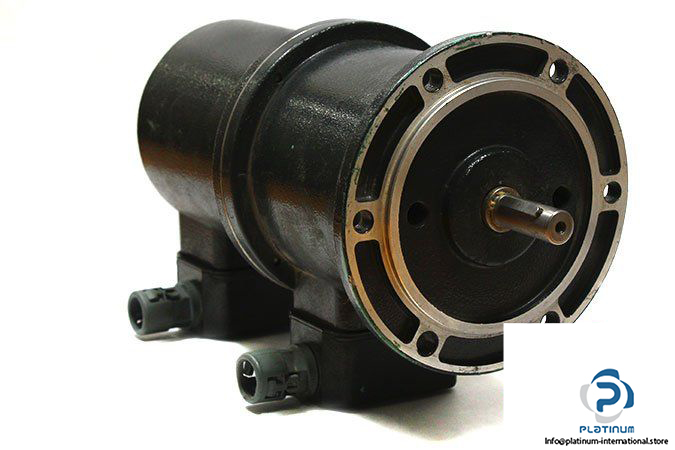

BAUMER HUBNER TDP 0,2 LT-4 TACHOGENERATOR WITH OG 9 D 500 INCREMENTAL ENCODER
The BAUMER HUBNER TDP 0,2 LT-4 Tachogenerator, combined with the high-resolution OG 9 D 500 Incremental Encoder, delivers precise speed feedback and pulse output for industrial applications. Designed with EURO flange and solid shaft, it operates reliably even under high-speed and high-temperature conditions.

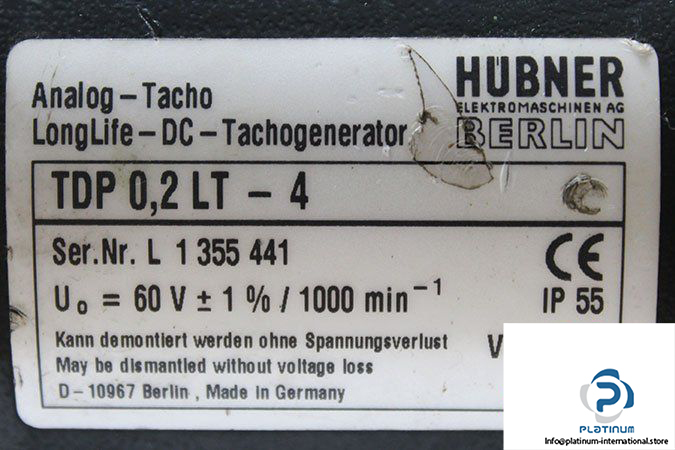

Manufacturer: BAUMER HUBNER
Type: TACHOGENERATOR
Model: TDP 0,2 LT-4
Serial No.: L 1 355 441
Technical Information “ Tachogenerator
- Flange Design: EURO flange
- Shaft Design: Solid shaft
- Shaft Diameter: 11 mm
- Performance: 12 W (speed ‰¥ 3000 rpm)
- Open Circuit Voltage: 60 mV per rpm
- Maximum Operating Speed: 10000 rpm
- Electrical Connection: Terminal box
- Temperature Range: -30 / 130°C

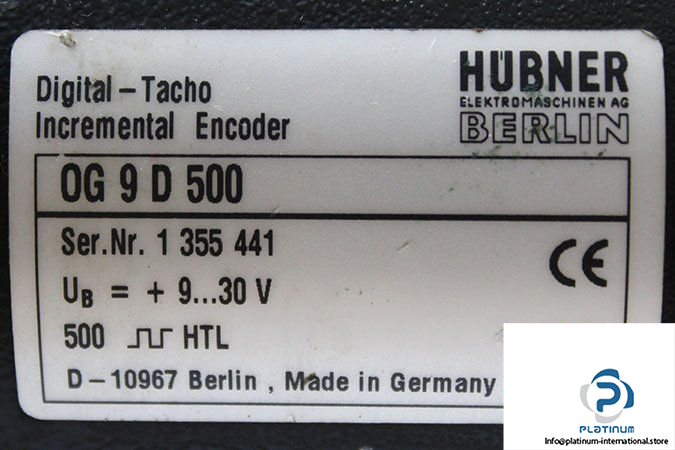

Attached Encoder “ Technical Information
- Type: INCREMENTAL ENCODER
- Model: OG 9 D 500
- Serial No.: 1 355 441
- Shaft Design: Connected with tachogenerator
- Power Supply: 9 / 30 VDC
- Output Circuit: Push pull (HTL)
- Resolution: 500 pulse per revolution (PPR)
- Electrical Connection: Terminal box
