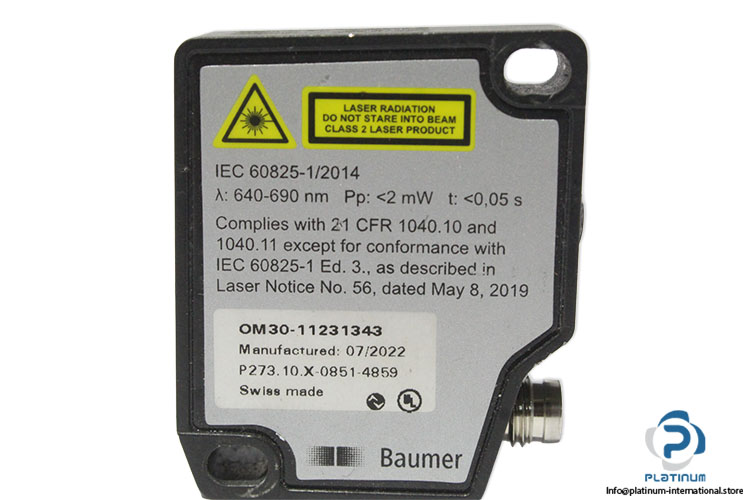

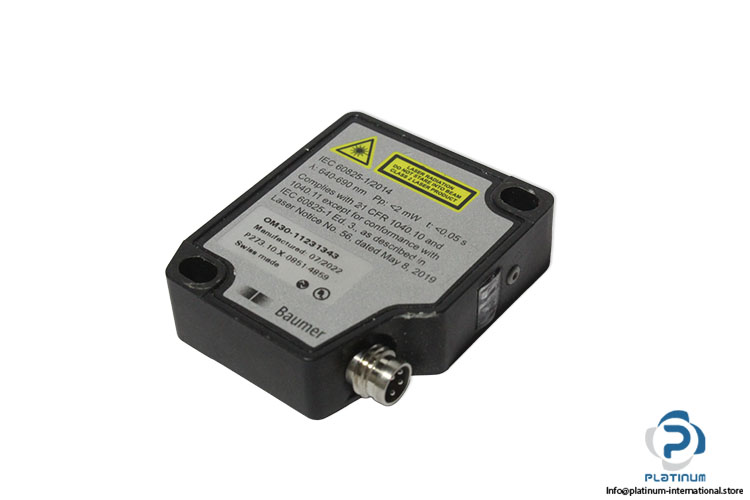

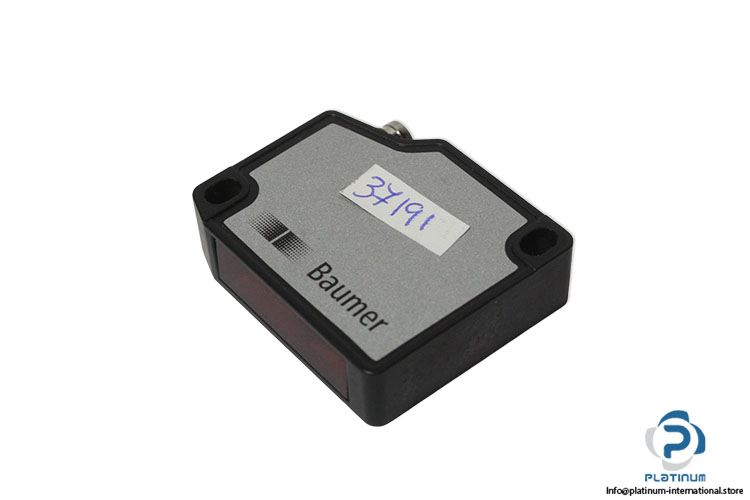

Baumer OM30-L0550.HV.YIN Photoelectric Distance Sensor
Nouveau
En stock11 unitésPrêt à être expédié
Diffuse-Reflective Laser Distance Sensor Baumer OM30 L0550.HV.YIN laser distance sensor with a 50 to 550 mm measuring range, pulsed red laser diode, IO-Link V1.1 interface, and IP67 protection, ideal for high-precision industrial sensing applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Code | OM30 11231343 |
| Part No. | 11231343 |
| Serial No. | P423.10.X-0899-9138 |
| Complies with | 21 CFR 1040.10 and 1040.11 |
| Voltage Supply | 12 … 28 VDC |
| Wavelength | 640-690 nm |
| Measuring Range | 50 … 550 mm |
| Pulse power | 2 mW |
| Response delay | 0.05 s |
| Adjustment | Teach-in: button / IO-Link |
| Light source | Pulsed red laser diode |
| Interface | IO-Link V1.1 |
| Operating temperature | -10 to +50 °C |

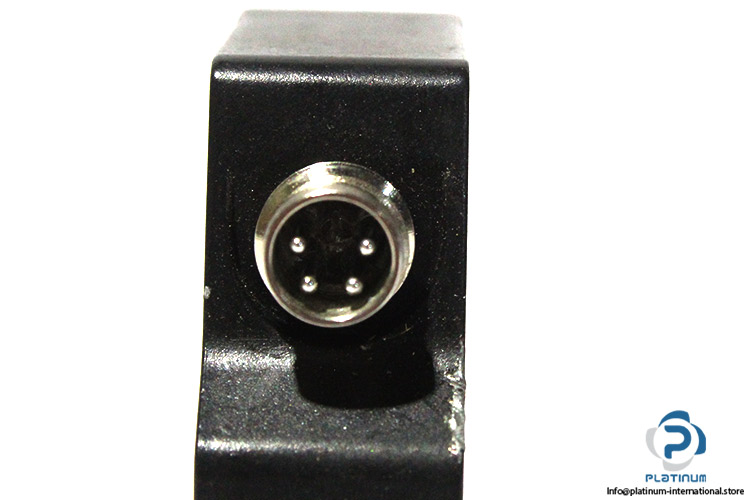

| Connection | M8 connector, 4-pin |
| Protection Class | IP67 |
| Certification | CE, UKCA, cULus |
| Standard | IEC 60825-1/ IEC 60825-1 |
| Dimensions | 13.6 x 49 x 40.3 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097912 |
| Weight | 0,07 |
