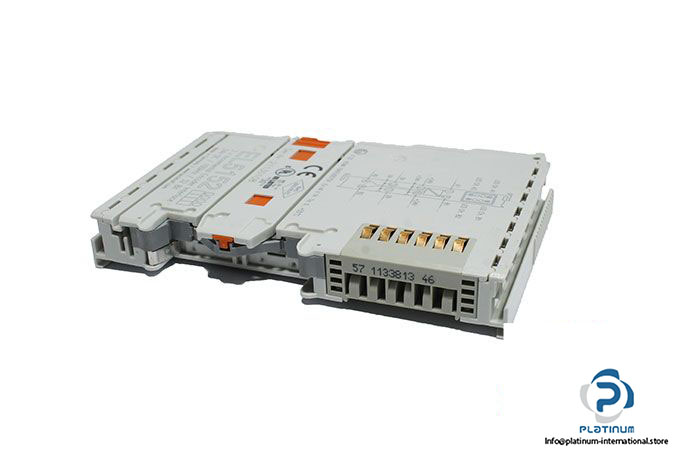

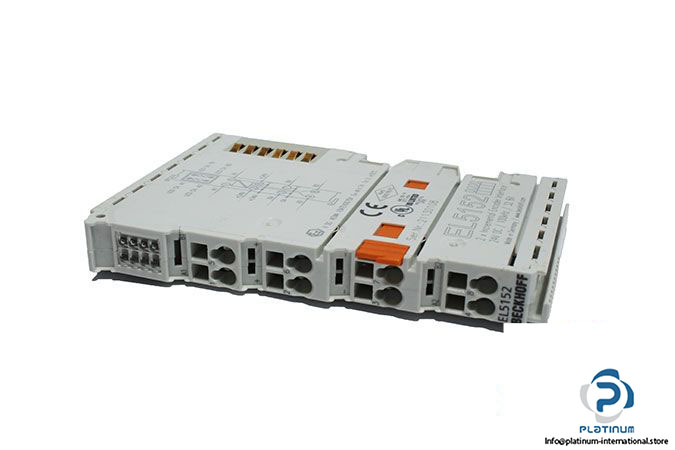

Beckhoff EL5152 Incremental Encoder Interface
Nouveau
Disponible sur demande
225,00$
INCREMENTAL ENCODER INTERFACE
Beckhoff EL5152 offers 2-channel 24 V encoder input, high resolution 1/256 bit microincrements, and 4-fold quadrature decoding for precise motion control. Features include frequency measurement and up/down counting in IP 20 housing.224VDCBeckhoffchannelControlDecoderEL5152EncoderHighIncrementalInputInterfaceIOModuleMotionQuadratureResolution
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
BECKHOFF EL5152 INCREMENTAL ENCODER INTERFACE
The Beckhoff EL5152 is a high-precision incremental encoder interface that supports two channels with 24 V single-ended connections. Designed for precise positioning, speed monitoring, and advanced motion control, this module provides accurate data evaluation through its 4-fold quadrature decoder and microincrement capability.
Manufacturer: Beckhoff
Type: Incremental Encoder Interface
Model: EL5152

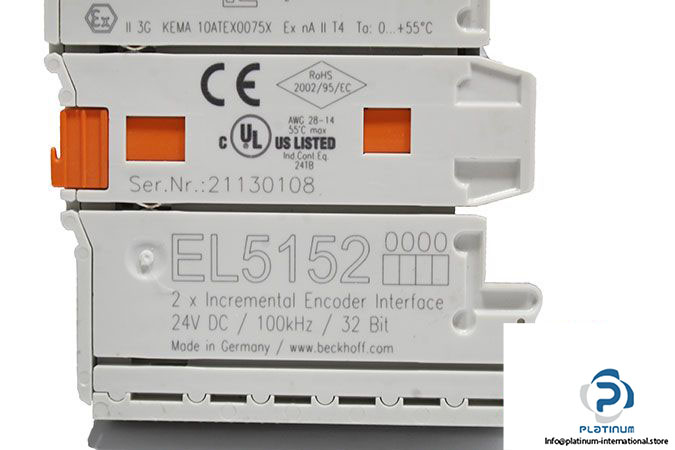

Serial No.: 21130108
| Number of Channels | 2 |
| Encoder Connection | 2 x A, B: 24 V single-ended connection |
| Encoder Operating Voltage | 24 VDC |
| Counter | 2 x 16/32 bit switchable |
| Quadrature Decoder | 4-fold evaluation |
| Current Consumption Power Contacts | typ. 100 mA + load |
| Resolution | 1/256 bit microincrements |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Current Consumption E-Bus | typ. 130 mA |
| Special Features | Microincrements, Period Duration and Frequency Measurement, Up/Down Counters |
| Operating Temperature | -25 / +60 °C |
| Storage Temperature | -40 / +85 °C |
| Protection Class | IP 20 |
