Contrel ELR-3C Earth Leakage Relay
Utilisé
En stock1 unitéPrêt à être expédié
Relais de fuite à la terre Contrel ELR3C avec courant réglable (0,25 à 2,5 A), délai de déclenchement configurable (0,02 à 0,5 s) et 1 contact inverseur (5A, 250V). Idéal pour la protection des circuits électriques contre les défauts de fuite à la terre.
1250V5AChangeoverContactContrelCurrentDelayDINEarthElectricalLeakageOnProtectionrailRelaySnapTrippingvAdjustable
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

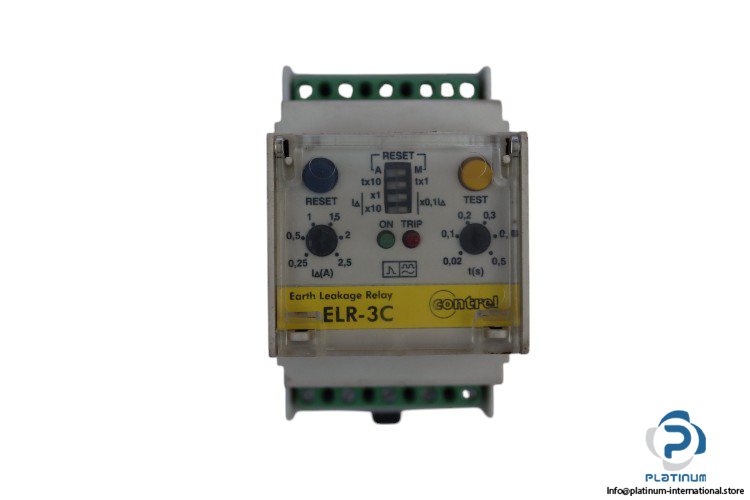

Contrel Earth Leakage Relay ELR3C
Contrel Earth Leakage Relay ELR3C is designed to monitor and protect electrical circuits against earth leakage faults. This relay offers a wide range of configurable settings, including adjustable current and tripping delay, providing enhanced flexibility for various industrial applications.
- Manufacturer: Contrel
- Type: Earth Leakage Relay
- Model: ELR3C
Technical Data:

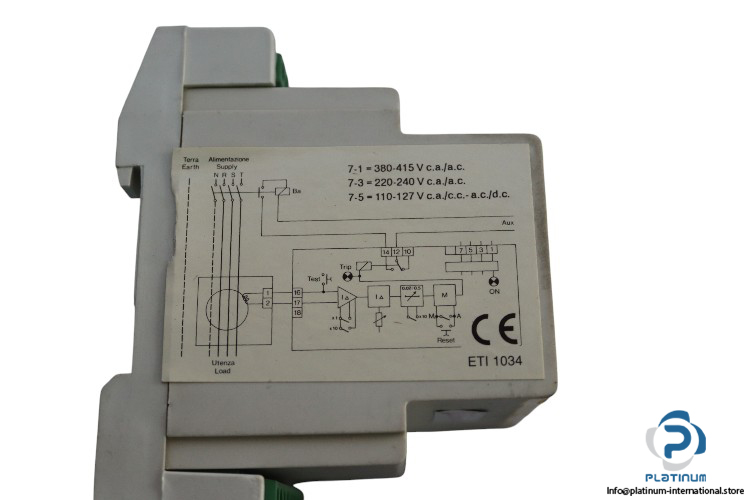

- Auxiliary Supply Voltage:
- 7-1: 380 to 415 V AC
- 7-3: 220 to 240 V AC
- 7-5: 110 to 127 V AC/DC
- Earth Leakage Relay Type: A
- Frequency: 50/60 Hz

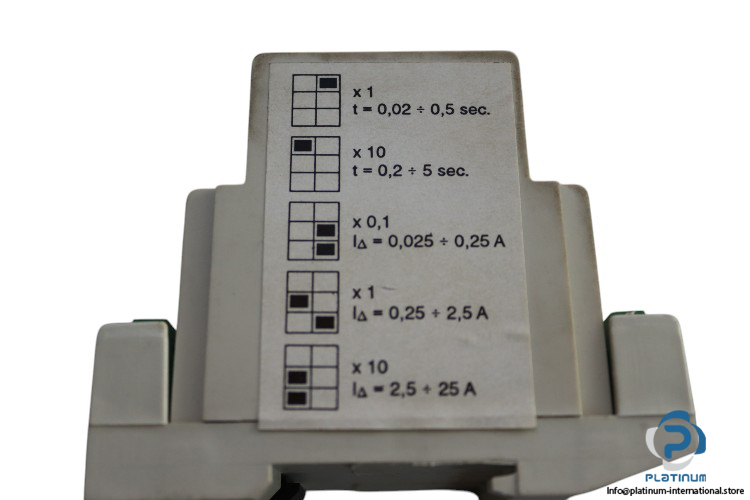

- Adjustments Current: 0.25 to 2.5 A
- Configurable Tripping Delay Time (t): 0.02 to 0.5 s
- Output: 1 changeover contact, (5A, 250V)
- Maximum Consumption Power: 3 VA
- Front Buttons: TEST and RESET buttons

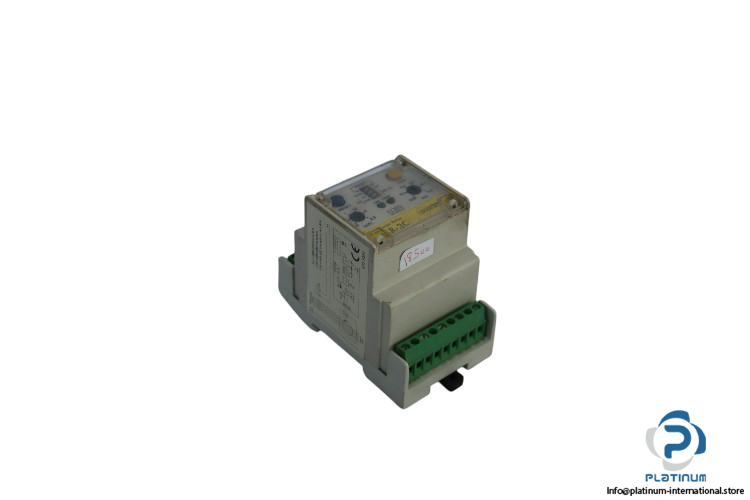

- Mounting: Snap on DIN rail 35 mm
- Degree of Protection: IP20 terminals, IP40 on front with cover
- Working Temperature: -10 to 60°C
- Dimensions: 73 x 85 x 52.5 mm
