Peek Round BAR 100 MM
Nouveau
En stockPrêt à être expédié

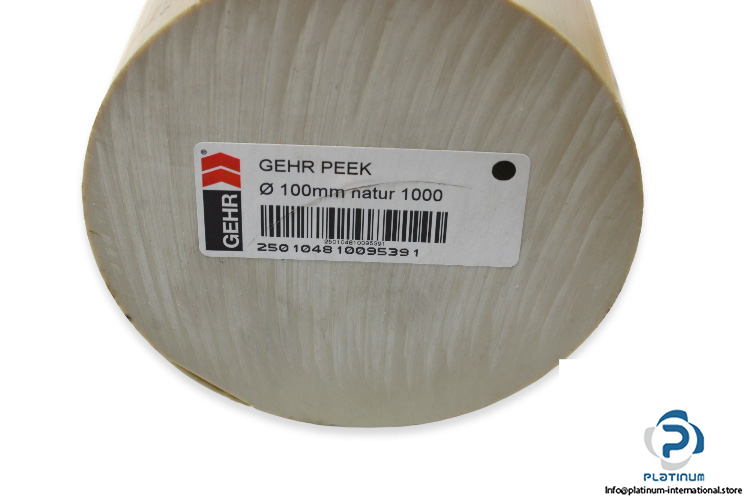

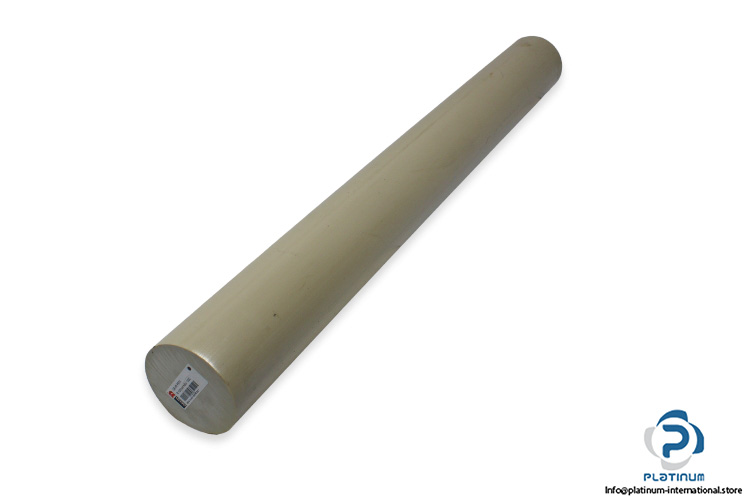

Tige ronde PEEK, diamètre 100 mm et longueur 720 mm, offrant une haute résistance à la traction, une stabilité thermique jusqu'à 260 °C et une résistance chimique exceptionnelle pour des usages d'ingénierie avancée.
100chemicaldiameterEngineeringEtherHeatHighIndustrialKetonematerialmmPeekPlasticPolyetherResistantRODRoundstrength
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
PEEK ROUND ROD
This PEEK (Polyether Ether Ketone) Round Rod offers exceptional mechanical, thermal, and chemical resistance properties, making it suitable for demanding engineering applications. With a high tensile strength, excellent dimensional stability, and outstanding resistance to extreme temperatures, it is ideal for use in aerospace, automotive, and industrial environments.
Type: Peek Round Rod
Physical Properties
Mechanical Properties
Thermal Properties
| Outer Diameter (D) | 100 mm |
| Length | 720 mm |
| Color | Natural |
| Material | Polyether Ether Ketone (PEEK) |
| Specific Gravity | 1.31 g/cm³ |
| Max. Service Temperature | 260 °C / 500 °F |
| Min. Service Temperature | -40 °C / -40 °F |
| Water Absorption (Saturation) | 0.4 % |
| Humidity Absorption (Saturation) | 0.07 % |
| Tensile Strength at Yield | 13,900 psi |
| Tensile Strength at Break | 26,800 psi |
| Tensile Modulus | 522,000 psi |
| Elongation at Break | 45% |
| Rockwell Hardness | R-Scale |
| Flexural Strength | 22,000 psi |
| Flexural Modulus | 566,000 psi |
| Heat Deflection Temperature HDT/A (264 psi) | 162.2 °C / 324 °F |
| Glass Transition Temperature | 150 °C / 302 °F |
| Melting Temperature | 340 °C / 644 °F |
