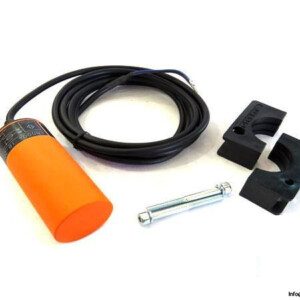

IFM IB0004 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No: IB0004

MRN: IB-2020-ABOA

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 20 … 250 V AC/ DC

Switching Output Current: 400 mA DC

Switching Frequency: 40 Hz

Output Function: Normally Open

Connector Type, Length: PVC Cable, 2m

Protection Class: II

Enclosure Rating: IP65

Housing: Tubular

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 34, 82 mm

Material: PBT

Weight: 0.18 kg
