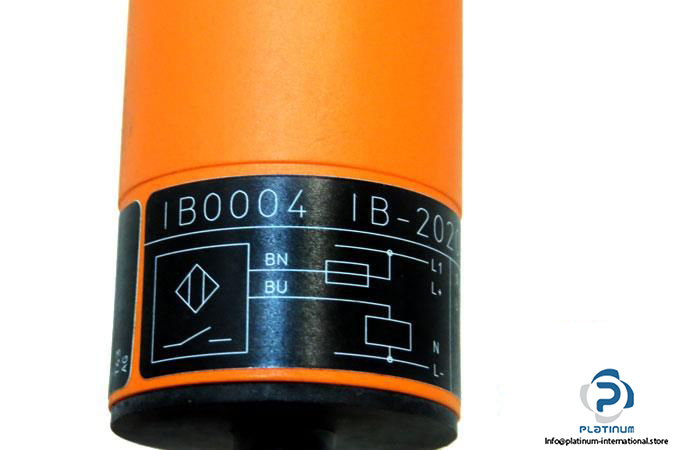

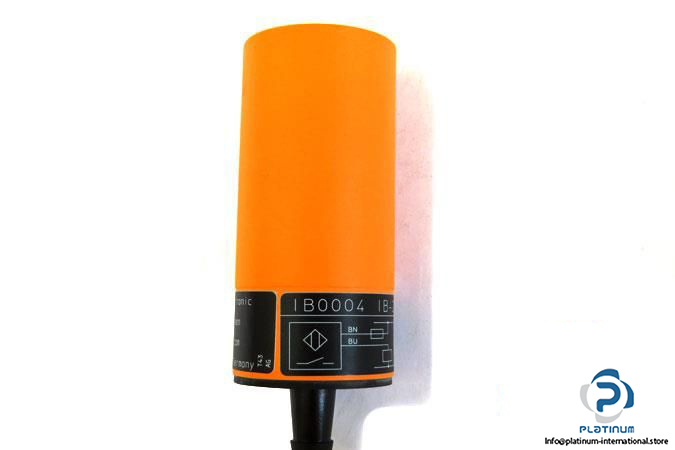

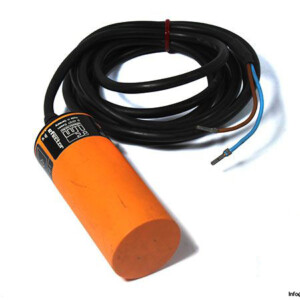

IFM IB0004 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IB0004

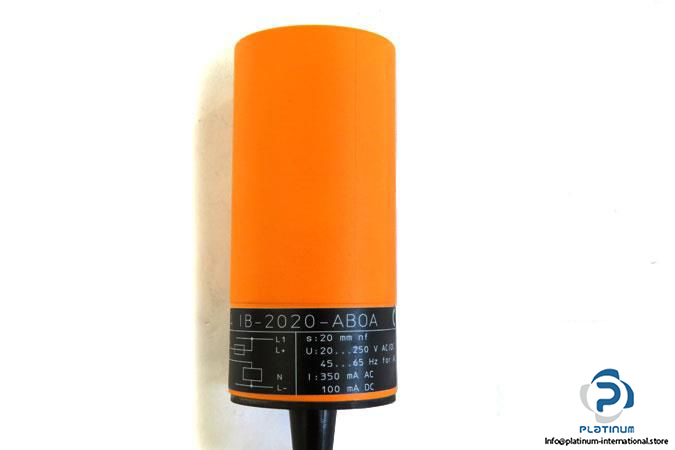

MRN: IB-2020-ABOA

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 20 … 250 V AC/ DC

Switching output current: 400 mA DC

Switching frequency: 40 Hz

Output Function: Normally open

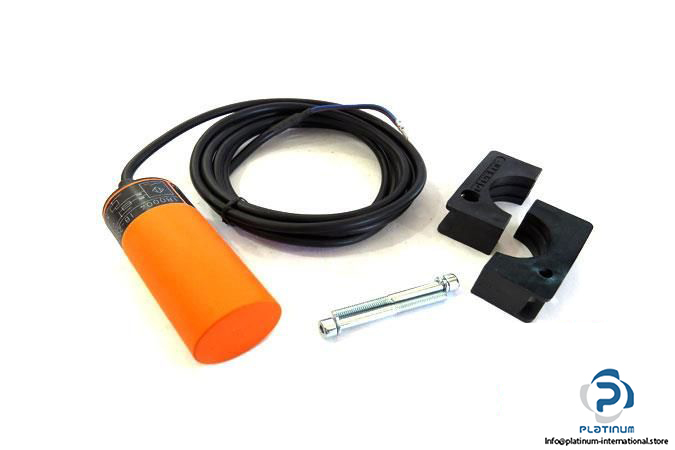

Connector type, length: PVC Cable, 2m

Protection Class: II

Enclosure rating: IP65

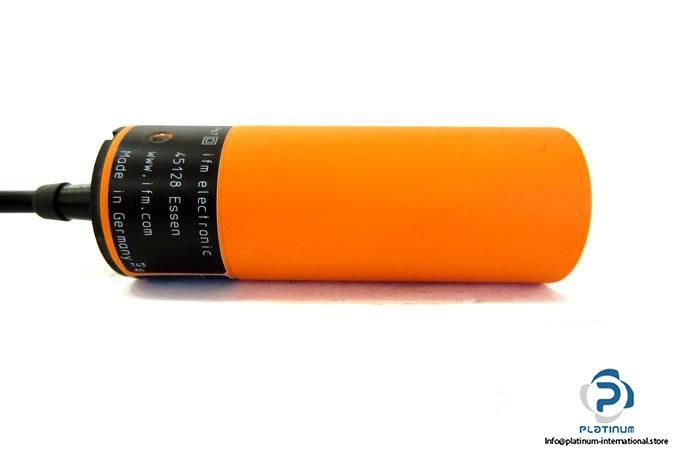

Housing: Tubular

Ambient Operating temperature: -25 … 80°C

Diameter, housing length: 34, 82 mm

Material: PBT

Weight: 0.25 kg
