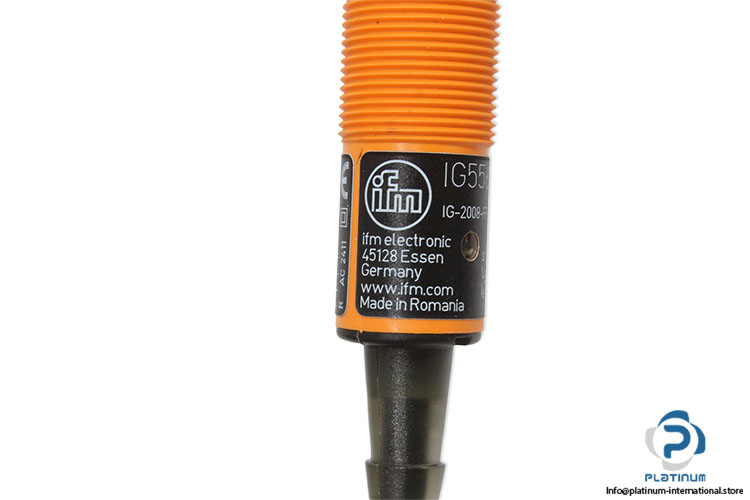

IFM IG5564 Inductive Sensor
Nouveau
En stock12 unitésPrêt à être expédié

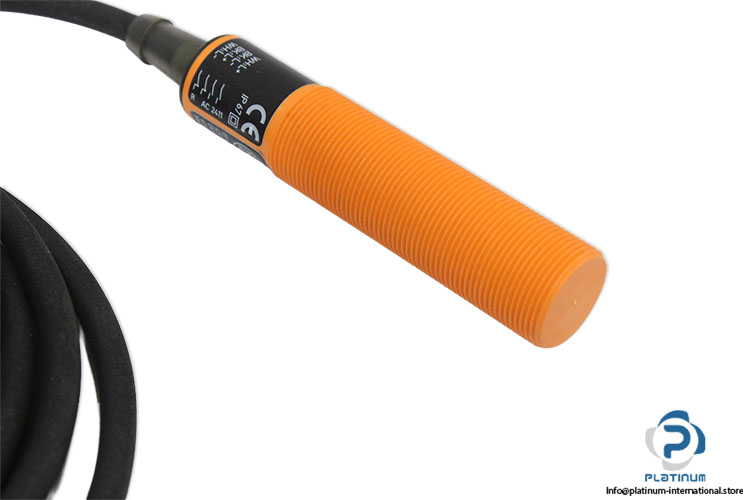

Inductive Sensor IFM inductive sensor with M18 threaded housing, selectable PNP/NPN output, 8 mm sensing range, and IP67 protection for industrial automation and object detection applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Part No. | IG5564 |

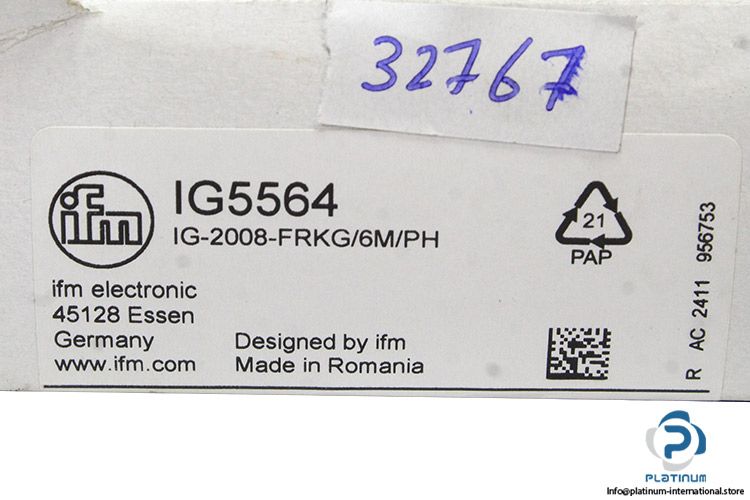

| MRN | IG-2008-FRKG/6M/PH |
| Ref No | R AC 2411 956753 |

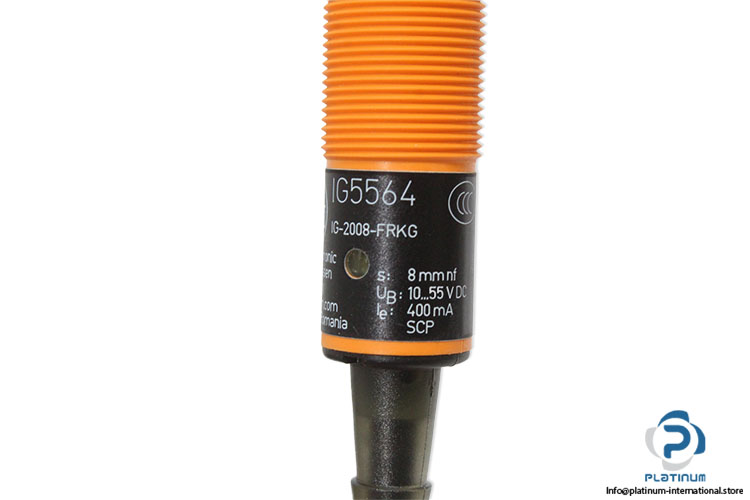

| Sensing Range | 8 mm |
| Housing | threaded type |
| Dimensions[mm] | M18 x 1 / L = 80 |
| Operating Distance | 0...6.5 mm |
| Operating Voltage | 10 … 55 V DC |
| Switching Frequency DC | 300 Hz |
| Switching Output Current | 400 mA DC |
| Minimum Load Current | 4 mA |
| Max. Voltage Drop | 4.6 V |

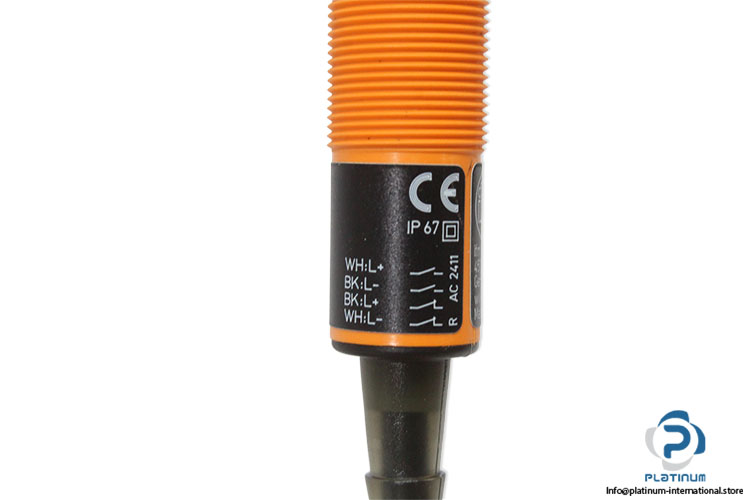

| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, (selectable) |
| Protection Class | II |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
| Enclosure Rating | IP67 |

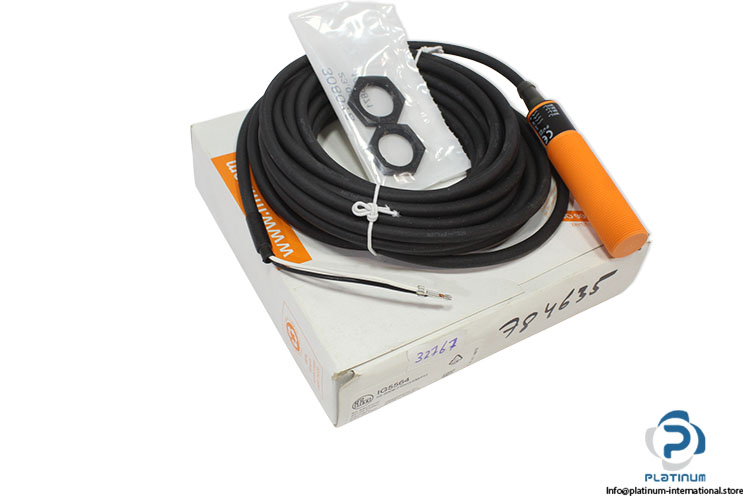

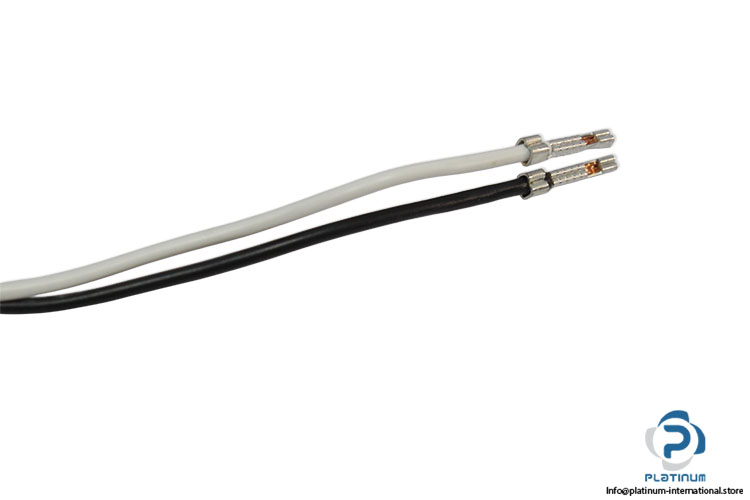

| Electrical Connection | Cable, 6 m |
| Ambient Operating Temperature | -25 … 80 °C |
| Thread designation | M18 x 1 |
| Materials | housing: PBT |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099243 |
| Weight | 0,3 |
