Bearings Linear Motion

INA KWE35 G3 V1 Recirculating Ball Bearing Carriage

Name: INA KWE35 G3 V1 RECIRCULATING BALL BEARING CARRIAGE
SKU: 985351
Price: 100.00 USD
Availability: InStock

ina-kwe35-g3-v1-recirculating-ball-bearing-carriage-1-2

ina-kwe35-g3-v1-recirculating-ball-bearing-carriage-2-2

Nouveau

En stock1 unitéPrêt à être expédié

100,00$

Fabricant

INA?

SKU

985351

Catégorie

Linear Motion

Condition

Nouveau

35 Ball bearing Block carriages Guideway Ina Linear mm Motion Recirculating Runner Schaeffler

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

Manufacturer: Schaeffler INA

Type: Tow-Row Linear Recirculating Ball Bearing Carriage

Model: KWE35-G3-V1

Size: 35 mm

Basic Load Ratings:

Dynamic C: 28 kN

Static C₀: 37 kN

Static Moment Rating About:

X axis M_0x: 658 Nm

Y axis M_0Y: 450 Nm

Z axis M_0Z: 450 Nm

Preload: V1

Accuracy Class: G3

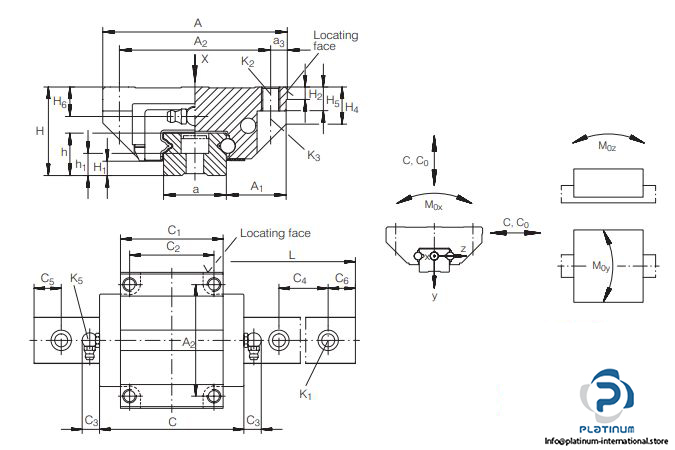

Dimensions:

Height system H: 48 mm

Width carriage A: 100 mm

Overall length carriage C: 106.4 mm
