Novotechnik TLH 225 Position Transducer Potentiometric

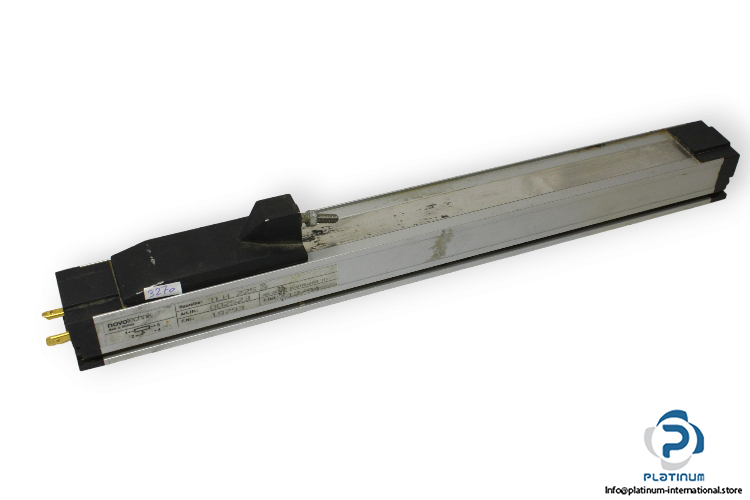

The **Novotechnik TLH 225** is a highly accurate potentiometric position transducer designed for industrial applications. Featuring an anodized aluminium housing, it ensures robust protection and durability. With a defined electrical range of 225 mm and independent linearity of 0.07%, this transducer provides exceptional performance across a wide temperature range of -30 to 100°C.

Manufacturer: Novotechnik

Type: Position Transducers Potentiometric

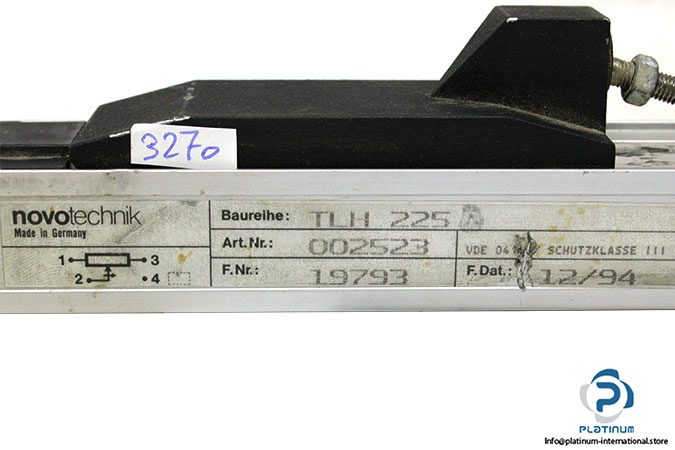

Model: TLH 225

Part No: 002523

Ref No: 19793

Technical Data:

• Housing Material: Aluminium, Anodized
• Nominal Resistance: 5 Ω
• Defined Electrical Range: 225 mm
• Electrical Stroke: 228 mm
• Independent Linearity: 0.07%
• Recommended Operating Wiper Current: < 1 mA
• Maximum Permissible Applied Voltage: 42 V
• Temperature Range: -30 / 100 °C
• Protection Class: IP40
