NSK NAH20ANZ Linear Guideway Block
Nouveau
En stock15 unitésPrêt à être expédié
BLOC DE GUIDE LINÉAIRE NSK NAH20ANZ, taille 20 mm, type standard carré avec légère précharge, haute capacité de charge et mouvement précis. Capacité dynamique de charge 23700 N, capacité statique de charge 32500 N.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
NSK NAH20ANZ LINEAR GUIDEWAY BLOCK
The NSK NAH20ANZ Linear Guideway Block is designed for high precision and high load applications. Built with advanced engineering, this square standard type block ensures smooth motion, stability, and durability across industrial systems.
Manufacturer: NSK
Type: Linear Guideway Block
Model: NAH20ANZ

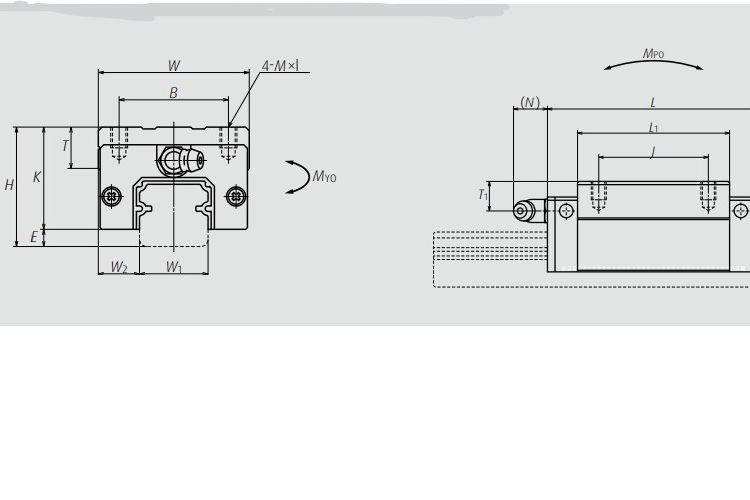

| Size | 20 mm |
| Total Height (H) | 30 mm |
| Block Width (W) | 44 mm |
| Block Length (L) | 69.8 mm |
| Block Height (K) | 25 mm |
| E | 5 mm |
| B | 32 mm |
| Random-Matching Ball Slide Series Code | NAH |
| Ball Slide Shape Code | AN |
| Preload | Z (Slight preload) |
| Block Type | Square Standard Type |
| Load Type | High Load |
| Basic Load Ratings | Dynamic C: 23700 N / Static C0: 32500 N |
| Allowable Static Moment | X axis MRO: 219 Nm, Y axis MYO: 185 Nm, Z axis MPO: 155 Nm |
