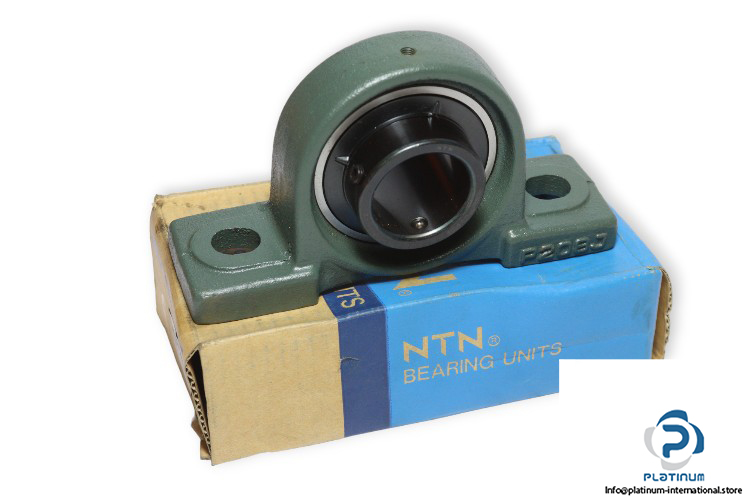

NTN M-UCP 208 J D1 Pillow Block Ball Bearing Unit

Name: NTN M-UCP 208 J D1 PILLOW BLOCK BALL BEARING UNIT
SKU: 1030326
Availability: LimitedAvailability

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-1

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-2

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-3

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-4

Nouveau

En stock1 unitéPrêt à être expédié

Type : Unité de palier à billes en bloc d'oreiller

Fabricant

NTN?

SKU

1030326

Catégorie

Plummer Block Housing Units

Condition

Nouveau

Ball bearing bearings Block Housing NTN Pillow Unit

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP 208 J D1

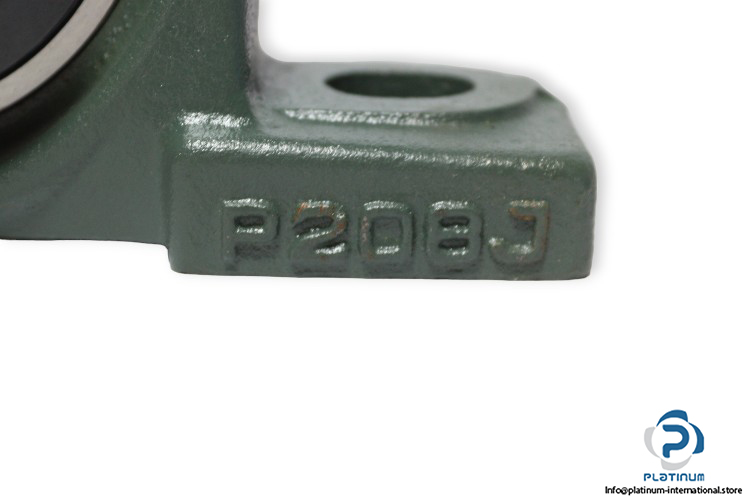

Housing No.: P208J

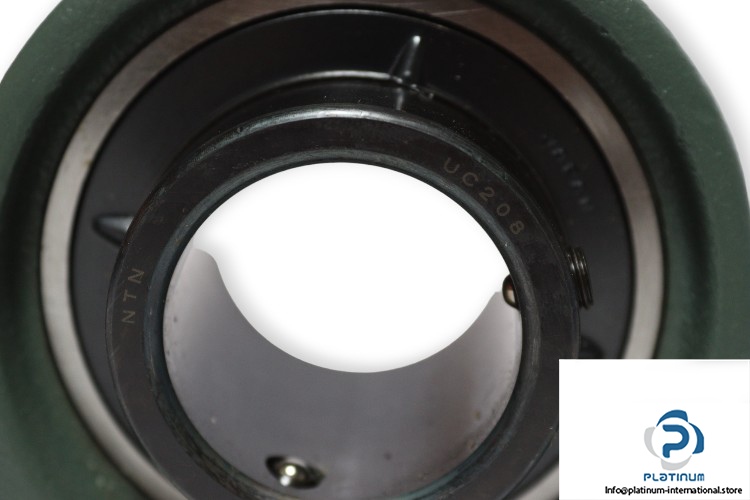

Bearing No.: UC208

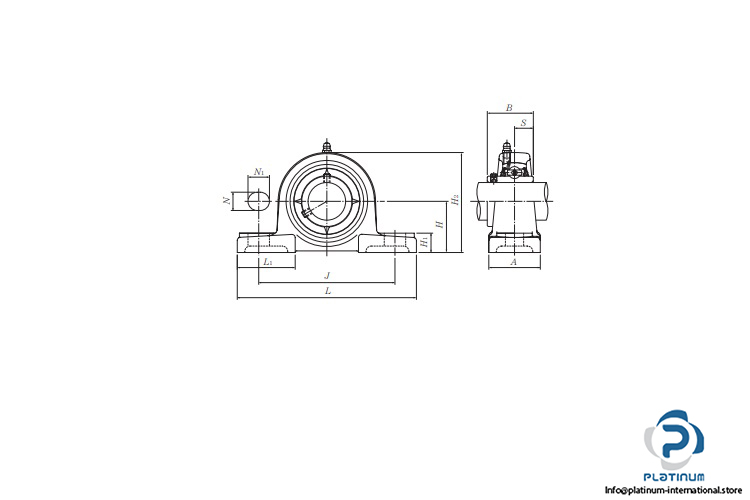

Dimensions
Shaft Diameter d: 40 mm
Overall length L: 184 mm
Overall height H2: 98 mm
Base width A: 54 mm
Height of spherical seat center H: 49.2 mm
Distance Between Attachment Bolts J: 137 mm
Diameter of attachment bolt hole N: 17 mm
Width of Inner Ring B: 49,2 mm
Foot height H1: 18 mm
Bolt Size: M14
Basic Load Rating:
Dynamic Cr: 29100 N
Static C0r: 17800 N
Bore type: Cylindrical bore
Locking Device: Set Screw
Housing Material: Cast Iron
