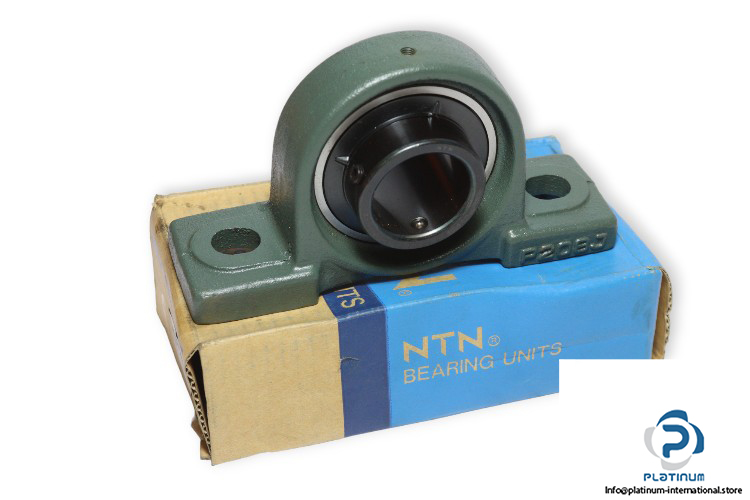

NTN M-UCP 208 J D1 Pillow Block Ball Bearing Unit

Name: NTN M-UCP 208 J D1 PILLOW BLOCK BALL BEARING UNIT
SKU: 1030326
Availability: LimitedAvailability

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)

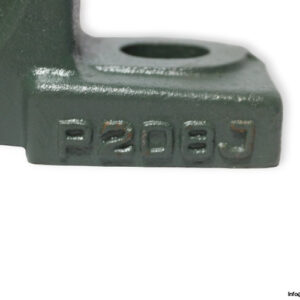

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-1

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-2

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-3

ntn-M-UCP-208-J-D1-pillow-block-ball-bearing-unit-(new)-(carton)-4

New

In stock1 unitReady to ship

Manufacturer:

NTN

Type:

Pillow Block Ball Bearing Unit

Model:

M-UCP 208 J D1

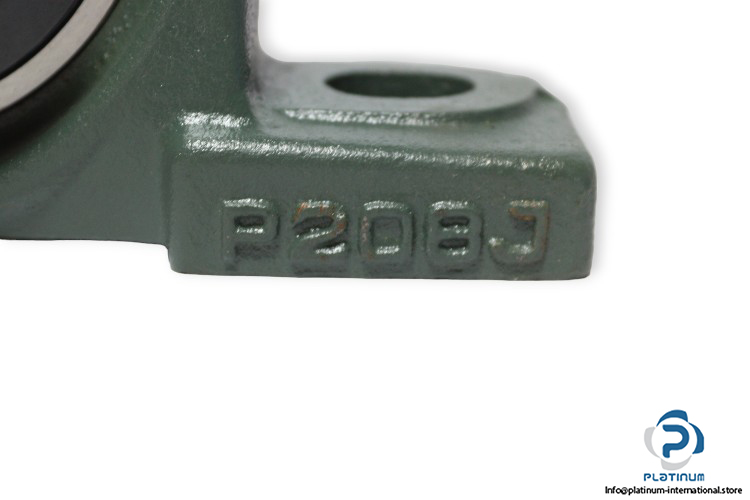

Housing No.:

P208J

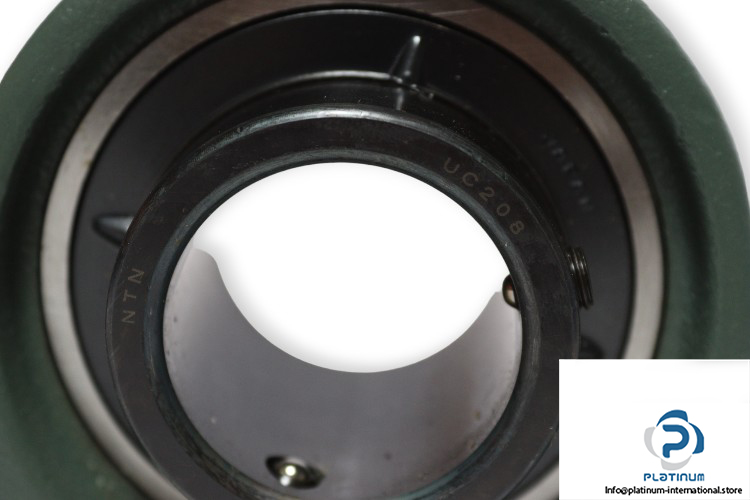

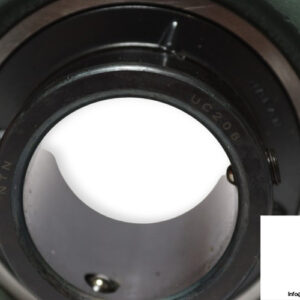

Bearing No.:

UC208

Manufacturer

NTN?

SKU

1030326

Category

Plummer Block Housing Units

Condition

New

Ball bearing bearings Block Housing NTN Pillow Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP 208 J D1
Housing No.: P208J
Bearing No.: UC208

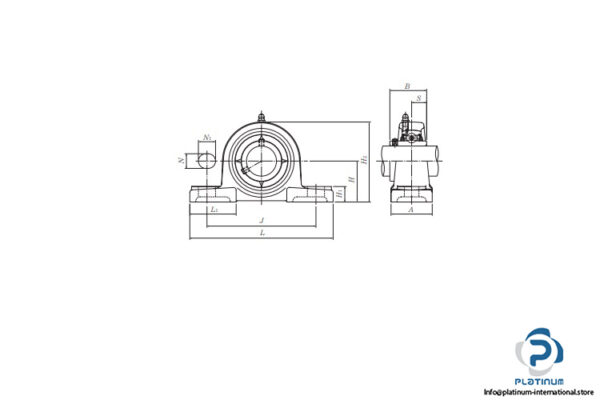

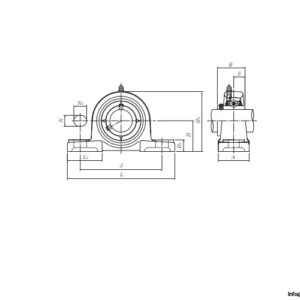

Dimensions
Shaft Diameter d: 40 mm
Overall length L: 184 mm
Overall height H2: 98 mm
Base width A: 54 mm
Height of spherical seat center H: 49.2 mm
Distance Between Attachment Bolts J: 137 mm
Diameter of attachment bolt hole N: 17 mm
Width of Inner Ring B: 49,2 mm
Foot height H1: 18 mm
Bolt Size: M14
Basic Load Rating:
Dynamic Cr: 29100 N
Static C0r: 17800 N
Bore type: Cylindrical bore
Locking Device: Set Screw
Housing Material: Cast Iron
