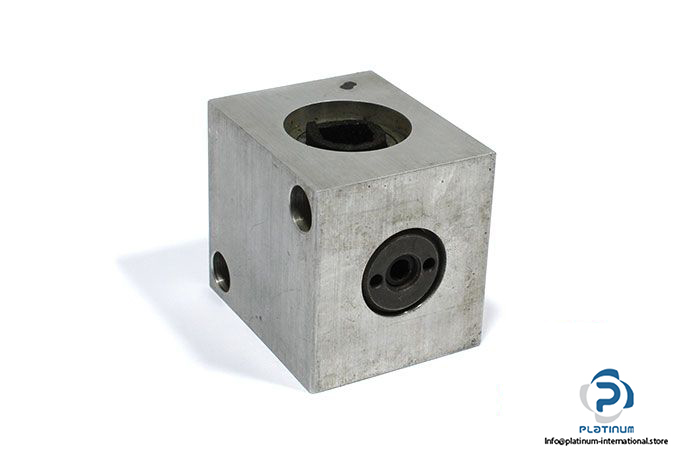

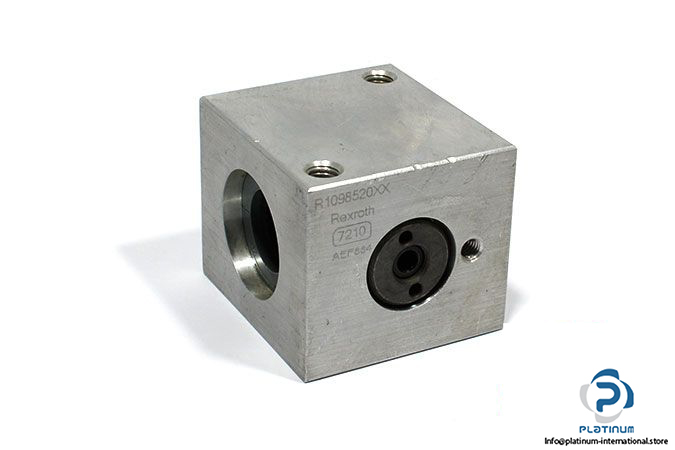

Rexroth R109852000 Linear SET With Torque-Resistant Linear Bushing

Name: REXROTH R109852000 LINEAR SET WITH TORQUE-RESISTANT LINEAR BUSHING
SKU: 993039
Availability: LimitedAvailability

rexroth-r109852000-linear-set-with-torque-resistant-linear-bushing-1

rexroth-r109852000-linear-set-with-torque-resistant-linear-bushing-2

rexroth-r109852000-linear-set-with-torque-resistant-linear-bushing-3

Utilisé

En stock1 unitéPrêt à être expédié

SKU

993039

Catégorie

Linear Motion

Condition

Utilisé

20 Ball Bushing Bushings d0:Guiding Linear mm Motion Rexroth Sets shaft Slides Torque-resistant

Nouveau Disponible sur demande

Ce produit est également disponible en neuf

Voir la nouvelle version →

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

Manufacturer: BOSCH REXROTH

Type: Linear Sets incorporating one Torque-Resistant Linear Bushings, Type 2

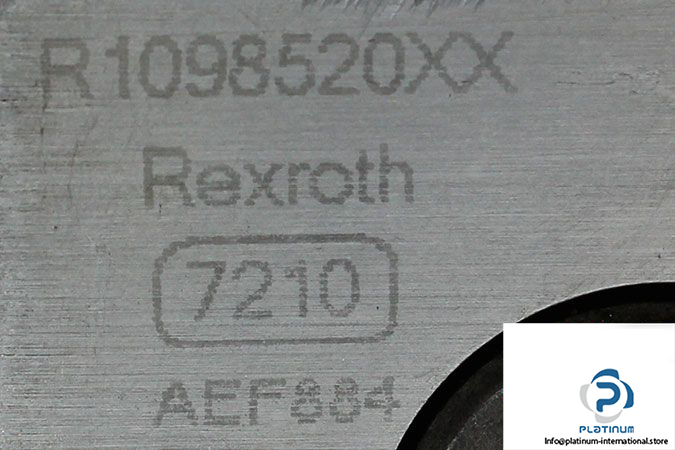

MNR: R1098 520 00

Model: LSADR2-20DD

Shaft diameter d: 20 mm

Design type: Torque, Closed Type

Raceway: Type 2, Two ball guide grooves

Housing Format: Aluminum

Torsional load moment M_t: 12 Nm

Dynamic Load Capacity C: 1550 N

Static Load Capacity C₀: 1050 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

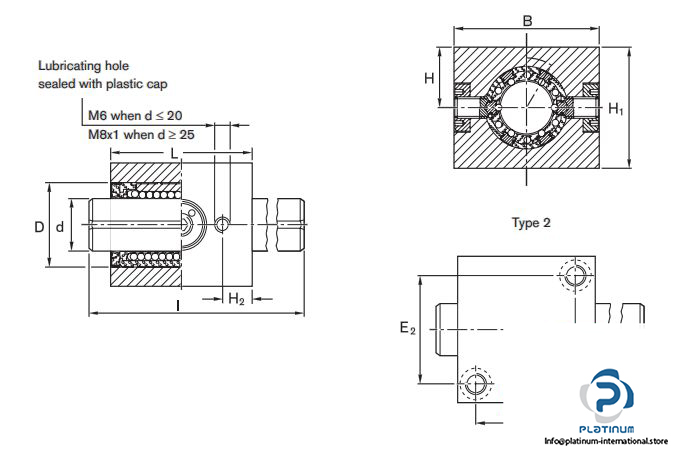

Dimensions:

B: 60 mm

L: 55 mm

H₁: 50 mm

E₁: 39 mm

E₂: 44 mm

Operating temperature: -10… +80 °C

Weight: 0.4 kg
