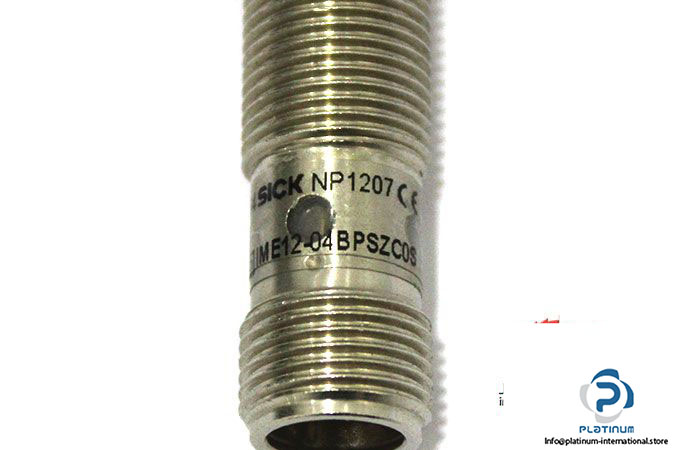

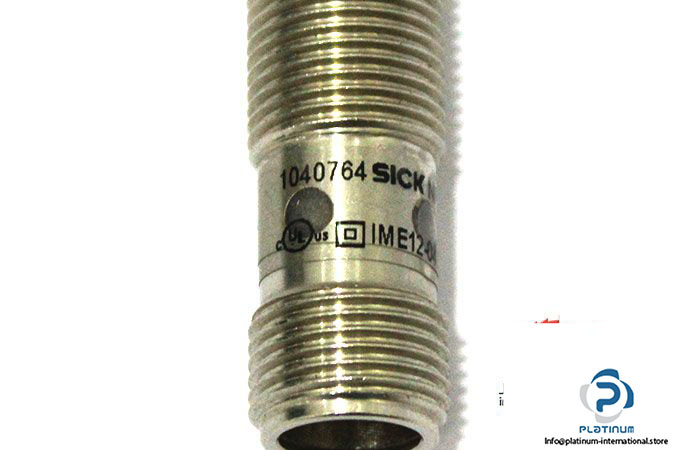

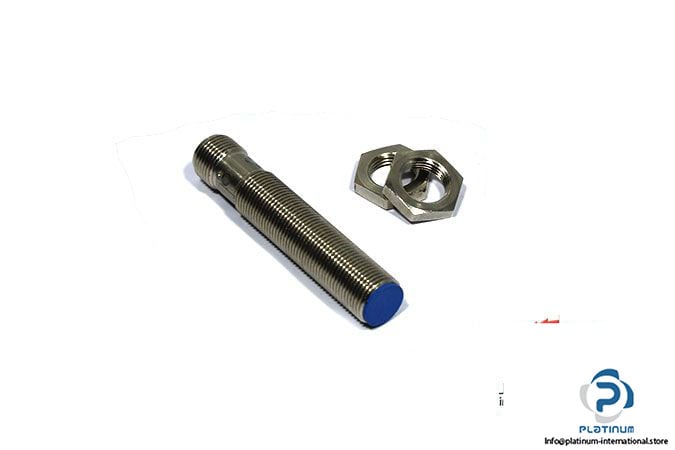

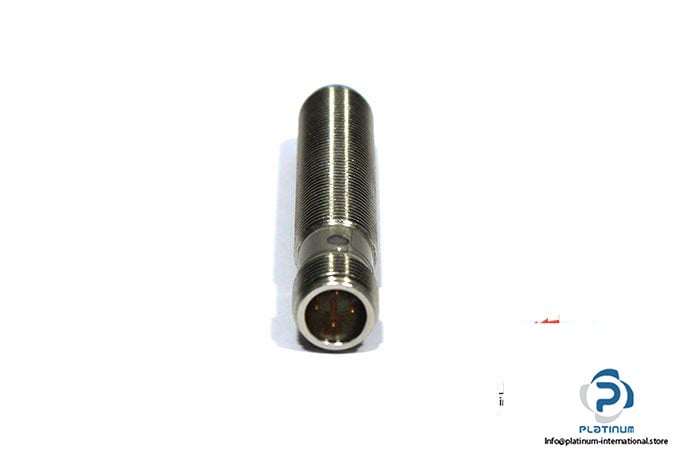

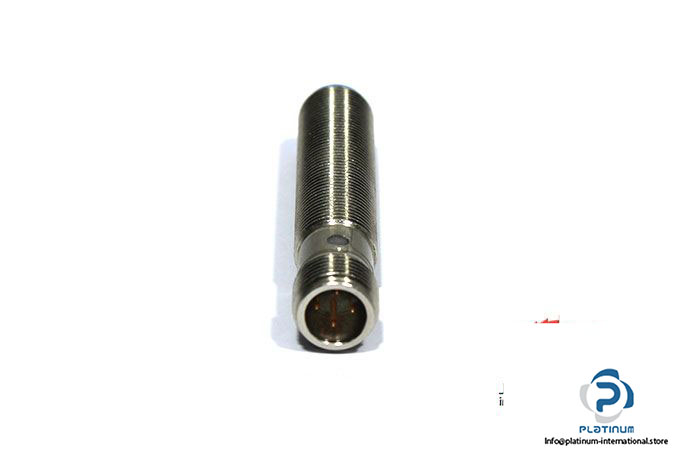

Sick IME12-04BPSZC0S Inductive Sensor

Manufacturer: SICK

Type: Inductive Sensor

Model: IME12-04BPSZC0S

Part No.: 1040764



Sensing Range Sn: 4 mm

Supply Voltage: 10 … 30 V DC

Continuous Current: ≤ 200 mA

Voltage Drop: ≤ 2 V

Switching Frequency: 2000 Hz

Switching Output: PNP

Output Function: Normally Open

Housing: Cylindrical Thread Design

Connection Type: Male Connector M12, 4-pin

Ambient Operating Temperature: -25 … 75 °C

Enclosure Rating: IP67

Diameter, Length: 12, 65 mm

Housing Material: Brass, Nickel-Plated

Sensing Face Material: Plastic, PA 66

Installation Type: Flush
