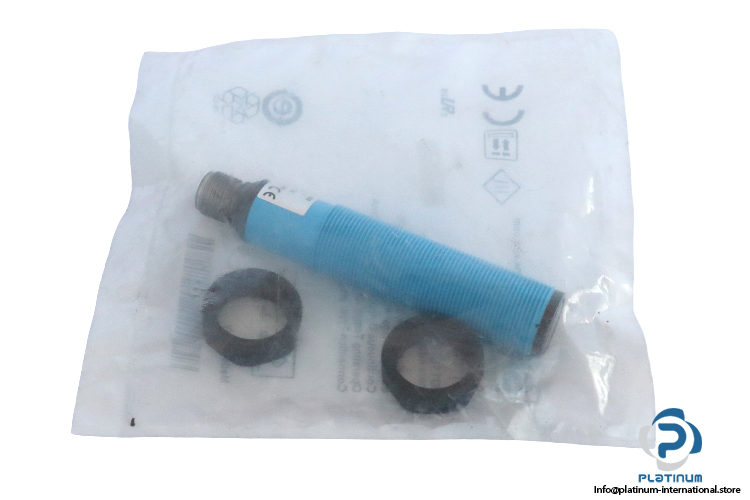

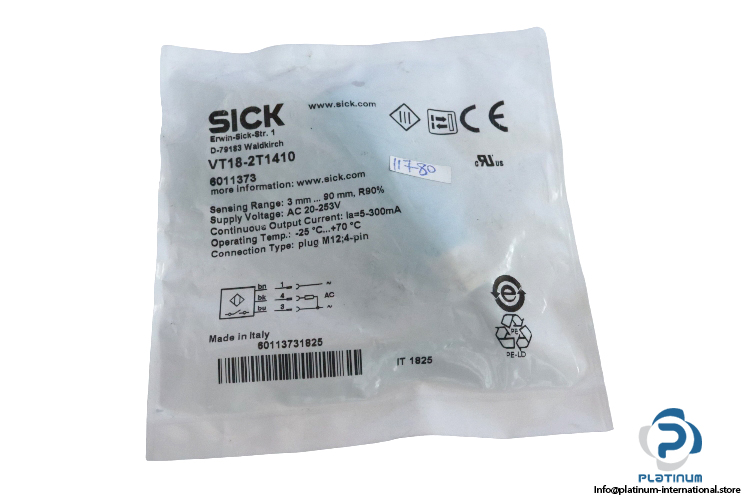

Sick VT18-2T1410 Diffuse Proximity Sensor

Manufacturer: SICK
Type: Diffuse Proximity Sensor
Model: VT182T1410
Part No.: 6011373

Sensing Range: 3 … 90 mm
Housing Design (Light Emission): Cylindrical
Light Source, Type: LED, Infrared Light
Supply Voltage: 20 … 253 V AC
Frequency: 50 … 60 Hz
Output Current Max.: 300 mA
Connection Type: Male Connector M12, 4-Pin
Switching Mode: Light Switching
Housing Material: Plastic, PBT/PC
Light Spot Size: 12 mm
Dispersion Angle (Focus): Approx. 3.5°
Thread Diameter: M18 x 1
Protection Class: IP67
Operating Temperature: -25 … 70 °C
Dimensions (W x H x D): 18 x 18 x 92 mm
