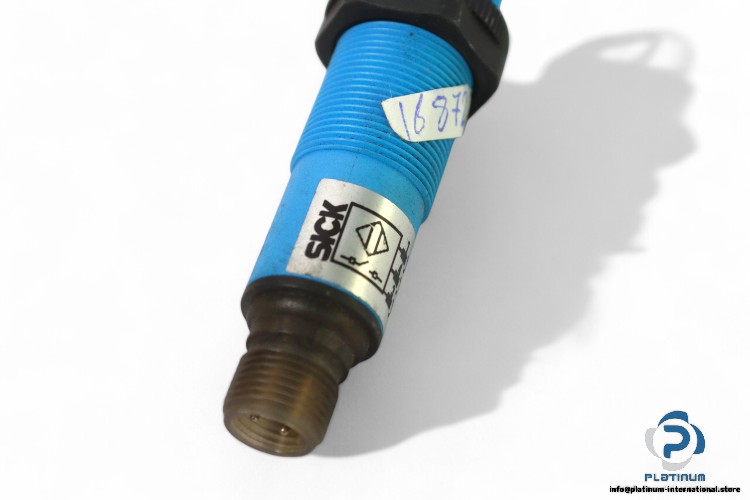

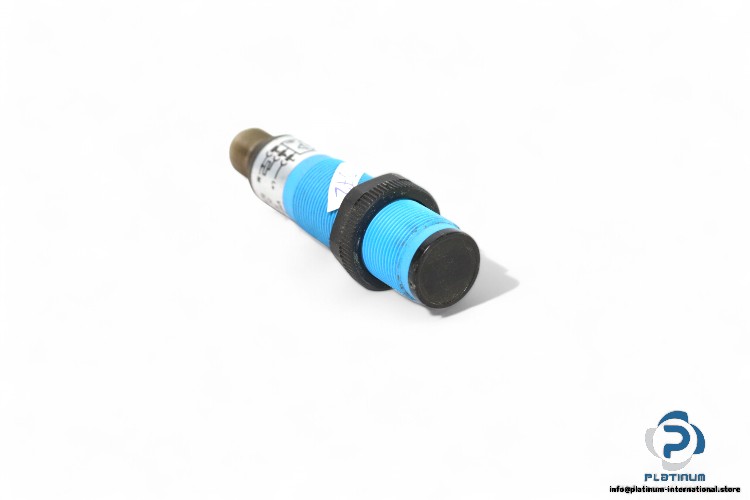

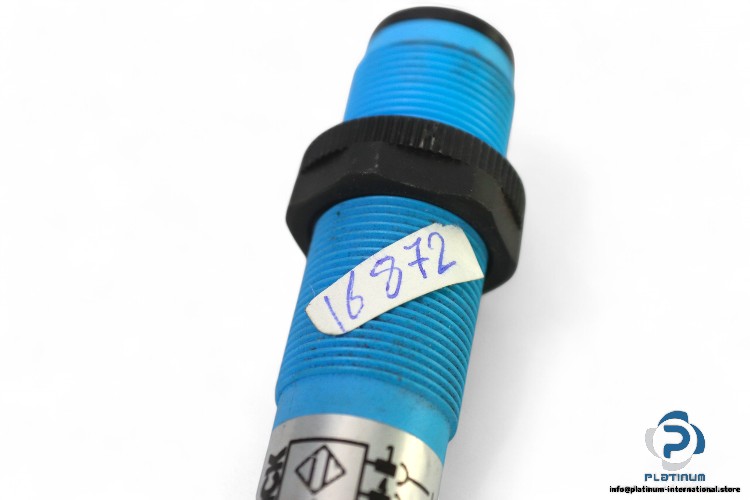

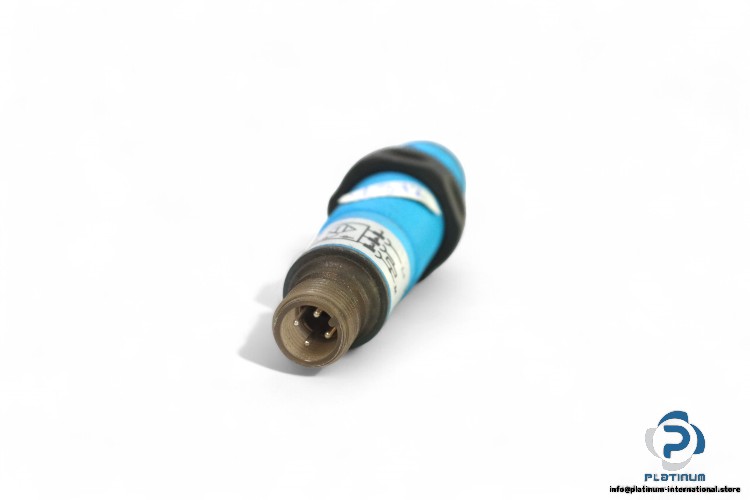

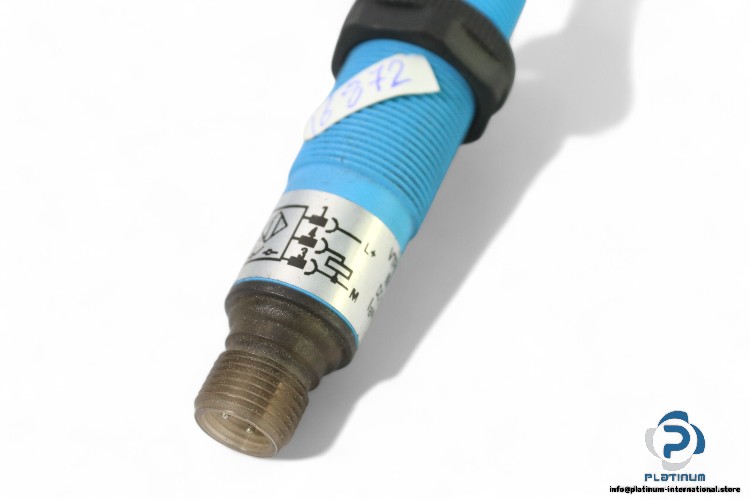

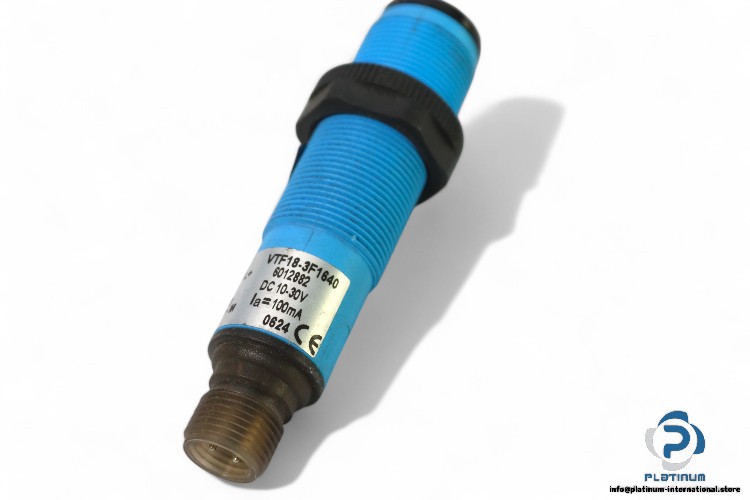

Sick VTF18-3F1640 Photoelectric Proximity Sensor

Manufacturer: Sick
Type: PHOTOELECTRIC PROXIMITY SENSOR
Model: VTF18-3F1640

Sensing Range: 3 mm … 90 mm
Operating Voltage: 10 … 30 V DC
Current consumption: 30 mA, without load
Output Current: 100 m A
Switching frequency: 250 Hz, with light/dark ratio 1:1
Switching Output: PNP
Connector Type: Male connector M12, 4-pin
Dimensions: 18 mm x 18 mm x 78 mm
Thread diameter (housing): M18 x 1
Housing Material: Plastic, PBT/PC
Optics Material: Plastic, PMMA
Operating Temperature: -25 … 70°C
Enclosure Rating: IP67
