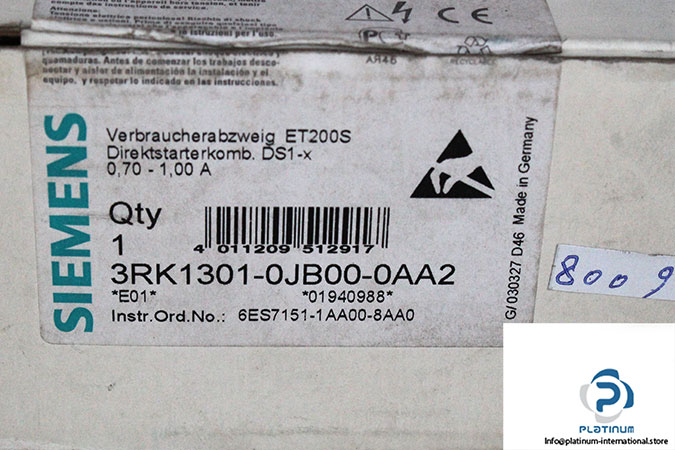

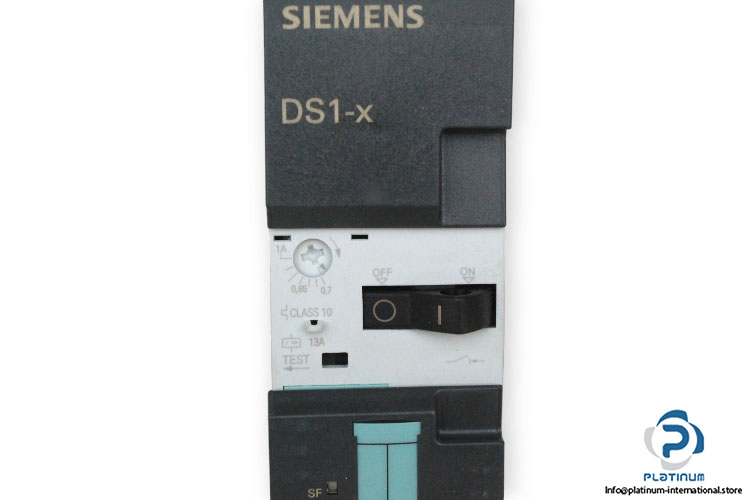

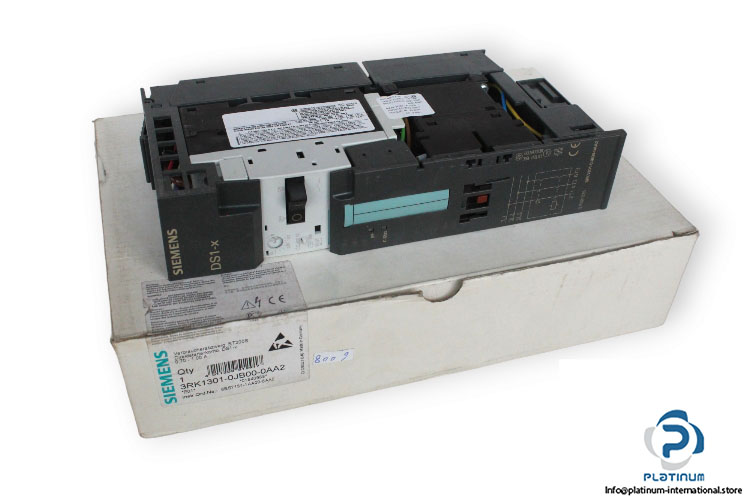

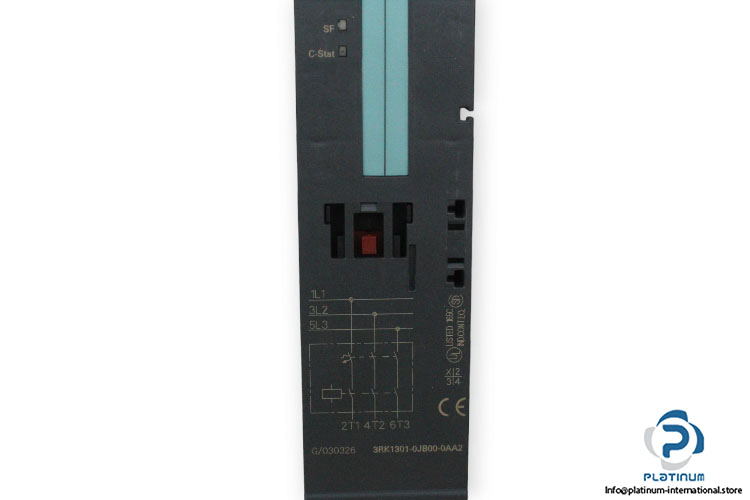

Siemens 3RK1301-0JB00-0AA2 Standard DOL Starter

Manufacturer: SIEMENS
Type: Standard Dol Starter
Model: 3RK1301-0JB00-0AA2

No. of Poles: 3
Operating Temperature: 0 … 60 °C
Degree of protection: IP20
Dimensions: 265 X 45 X 120 mm

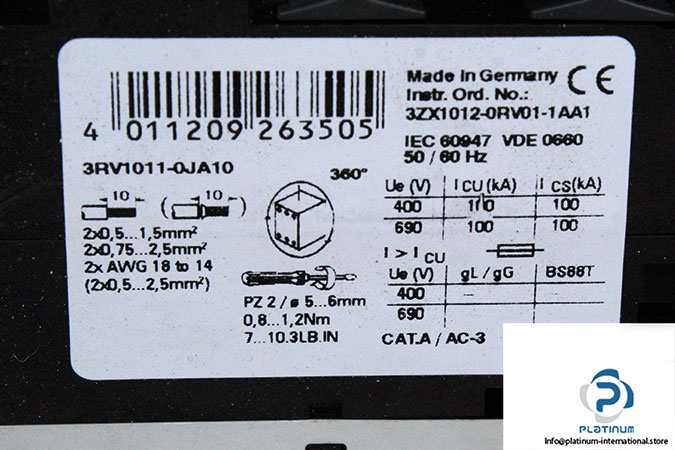

                    SIEMENS 3RV1011-10JA10 CIRCUIT BREAKER

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV1011-10JA10

Rated Current: 0.7 … 1 A
Rated Voltage: 400 … 690 V AC
Frequency: 50 … 60 Hz
Breaking Capacity: 100 kA
Power: 0.5 HP (460 V)
Torque: 0.8 … 1.2 Nm

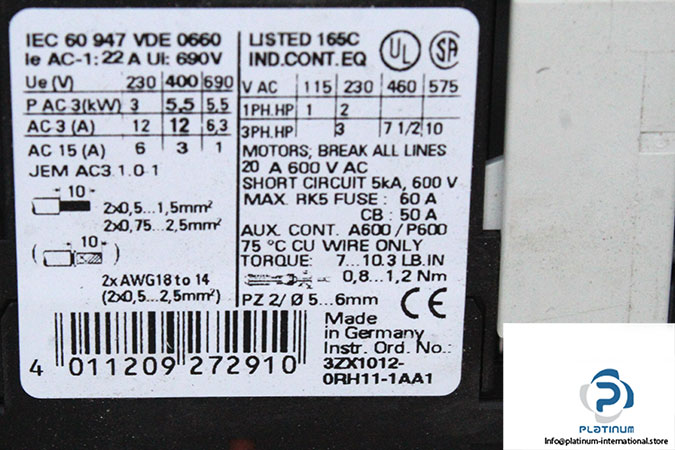

                                        CONTACTOR:

Supply: 24 V DC
Rated Voltage: 230 … 690 V AC
Rated Current: 12 … 6.3 A/ 6 … 1 A
Power: 5.5 kW (400 V)
Torque: 0.8 … 1.2 Nm
