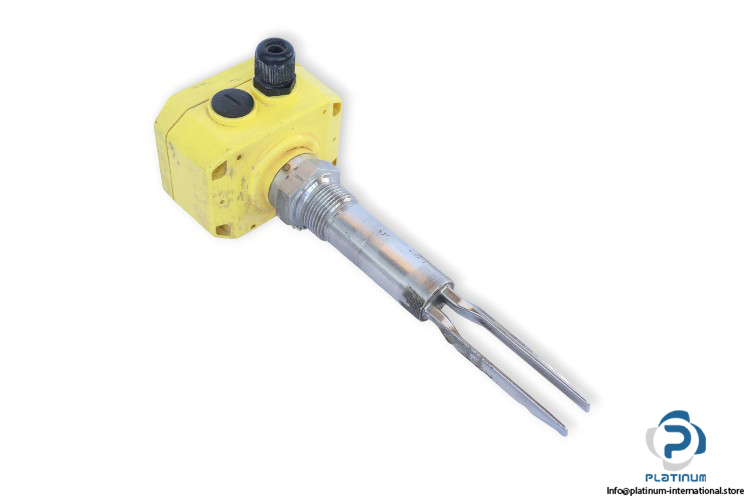

Vega Swing 83G1Z5EX S83GZ0.ZAK020X Vibrating Point Level Sensor
The VEGA Vibrating Point Level Sensor (Model: SWING 83G1Z5EX S83GZ0.ZAK020X) from the VEGASWING 83 series features a 100 mm sensor fork, 25 bar process pressure, and NAMUR output, designed for reliable point level detection in industrial environments.
VEGA Vibrating Point Level Sensor – SWING 83G1Z5EX S83GZ0.ZAK020X
The VEGA Vibrating Point Level Sensor, model SWING 83G1Z5EX S83GZ0.ZAK020X, from the VEGASWING 83 series, is a reliable solution for point level detection in industrial applications. With its robust construction and high protection class, this sensor is designed to work in harsh environments, ensuring accurate level measurement even under challenging conditions.
Key Features:
- Manufacturer: VEGA
- Model: SWING 83G1Z5EX S83GZ0.ZAK020X
- Series: VEGASWING 83
- Sensor Fork Length: 100 mm
- Process Pressure Max: 25 bar (2500 kPa)
- Supply Voltage: 12 / 36 V DC
- Output Signal: Two-Wire NAMUR
- Material: PBT (Polyester)
- Protection Class: IP66 (Dust-tight, protected from water jets)
- Ambient Temperature: -40 / 70 °C
- Dimensions: 275 x 110 x 80 mm
Attachment:

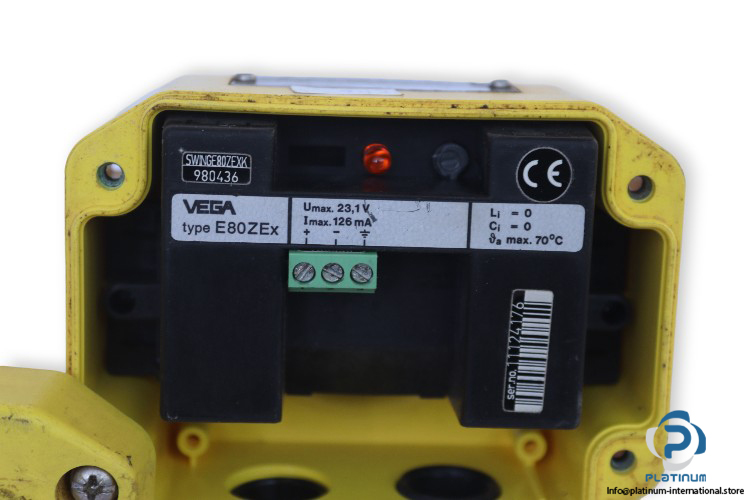

VEGA SWINGE807EXK E80ZEX Electronic Insert
- Manufacturer: VEGA
- Model: SWINGE807EXK E80ZEX
- Part No: 980436
- Supply Voltage: 23.1 V DC
- Current Consumption Max: 126 mA
The VEGA Vibrating Point Level Sensor provides high accuracy and reliability in point level detection. It is ideal for a variety of applications in industrial environments requiring precise level monitoring in challenging conditions.
