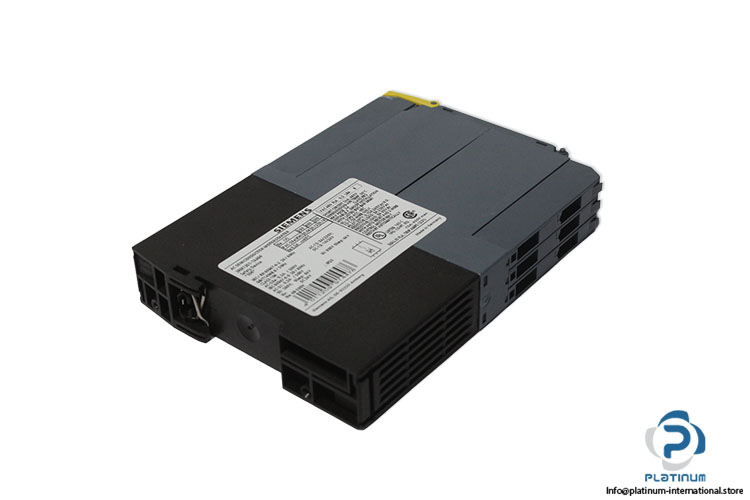

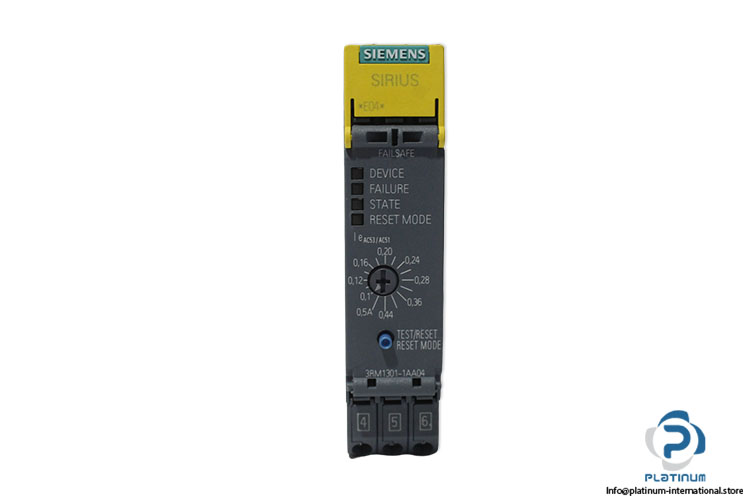

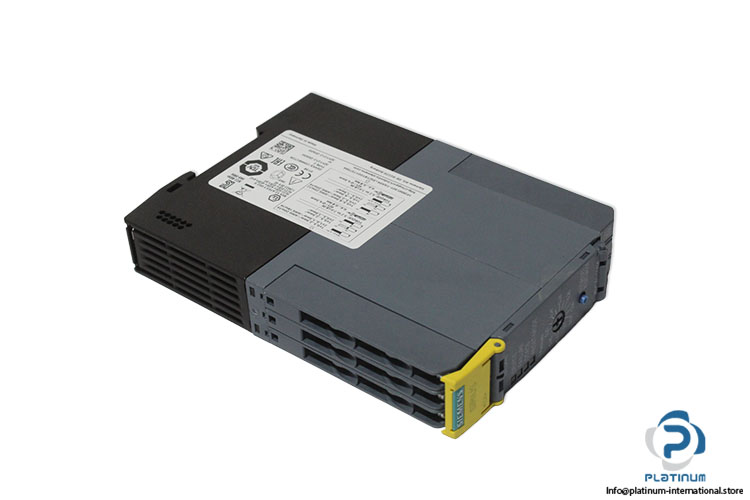

Siemens 3RM1301-1AA04 Safety Relay
नया
स्टॉक में उपलब्ध1 यूनिटभेजने के लिए तैयार
Safety Relay The Siemens SIRIUS 3RM1301-1AA04 Safety Relay features integrated electronic overload protection, safety-related disconnection, hybrid switching technology, and DIN rail mounting. It is designed to provide reliable motor protection and control in industrial automation systems.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी
| MNR | 3RM1301-1AA04 |

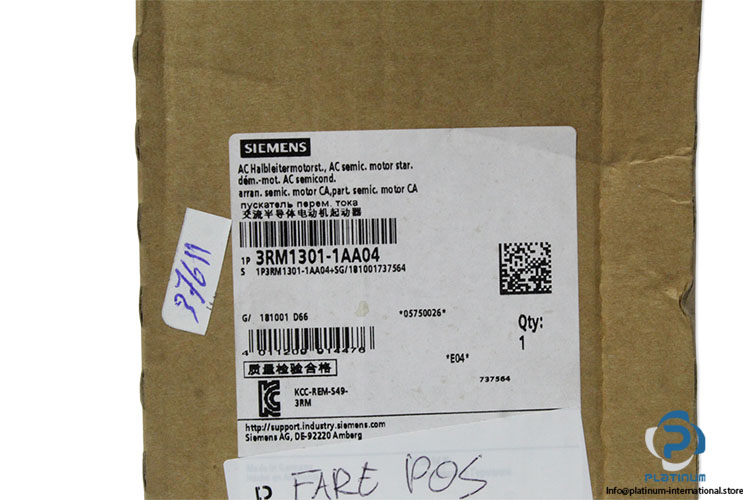

| Serial No. | 1P3RM1301-1AA04+SG/181001737564 |
| Code | 05750026, 181001 D66, 737564 |
| Product Brand Name | SIRIUS |

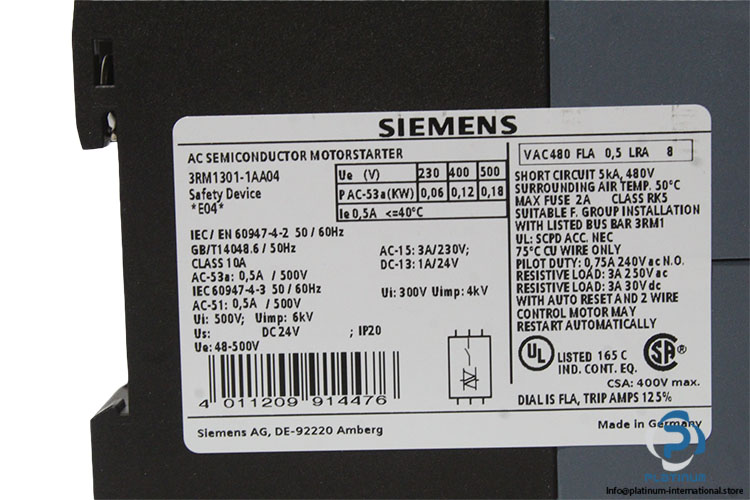

| Design Of The Product | With electronic overload protection and safety-related disconnection |
| Product Type Designation | 3RM1 |
| Insulation Voltage | 500 V |
| Voltage | (AC15: 230V), (DC13: 24V) |
| Current | (AC15: 3A), (DC13: 1A) |
| Power | (0,12kW: 400V) |
| Surge Voltage Resistance Rated Value | 6 kV |
| Frequency | 50/60 Hz |
| Number Of Poles For Main Current Circuit | 3 |
| Design Of The Switching Contact | Hybrid |
| Mounting Position | vertical, horizontal, standing (observe derating) |
| Fastening Method | screw and snap-on mounting onto 35 mm DIN rail |
| Protection Degree | IP20 |
| Ambient Temperature | -25 ... +60 °C |
| Standard | IEC/ EN 60947-4-2, GB/T14048.6 |
| Height | 100 mm |
| Width | 22.5 mm |
| Depth | 141.5 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093342 |
| Weight | 0,33 |
