Motion Control Rotary Encoders

Heidenhain ROD-320.001-1500 Incremental Encoder

Name: HEIDENHAIN ROD-320.001-1500 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966168
Price: 325.00 USD
Availability: InStock





중고

재고 있음1 단위즉시 배송 가능

325,00$

증분 인코더 HEIDENHAIN ROD-320.001-1500은 CNC 기계용 고해상도 인코더입니다. 1500 PPR, TTL 신호 출력 및 5 VDC 작동으로 최대 8500 rpm 속도에서 정확한 피드백을 보장합니다.

제조업체

HEIDENHAIN

SKU

966168

카테고리

Rotary Encoders

상태

중고

1500 5 CNC Encoder Feedback Heidenhain High-Speed hollow Incremental Industrial IP64 Machine PPR ROD-320.001-1500 RS422 shaft TTL VDC

방대한 재고

글로벌 배송

전문 지원

품질 보장

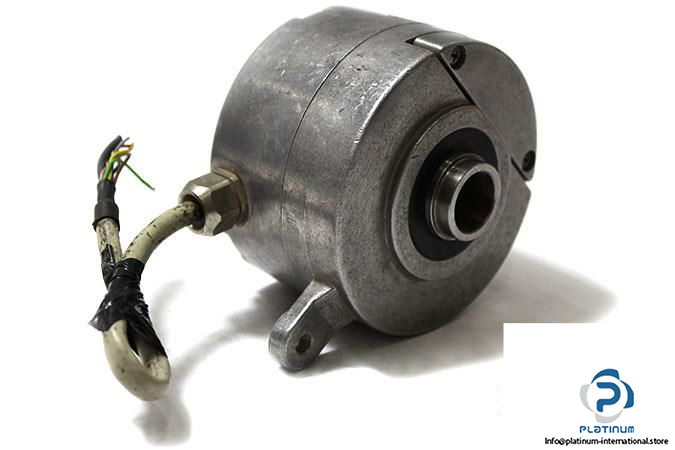

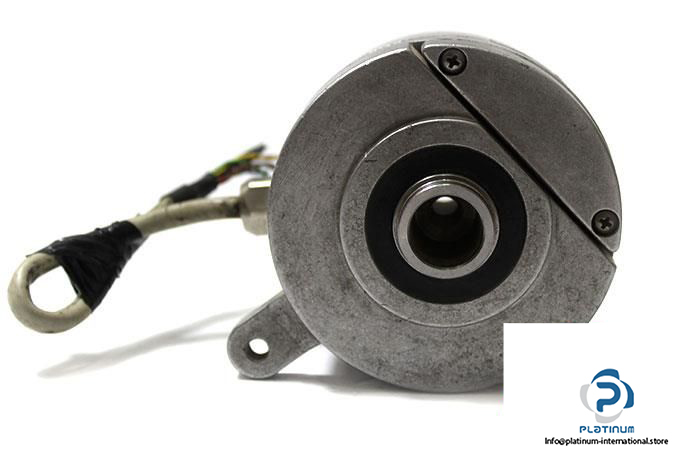

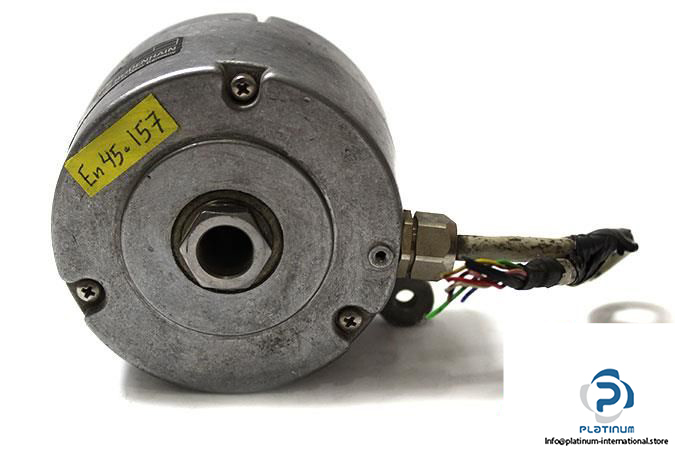

HEIDENHAIN ROD-320.001-1500 INCREMENTAL ENCODER

This high-precision incremental encoder is engineered for demanding CNC machine environments, offering reliable performance with high resolution and signal integrity. The HEIDENHAIN ROD-320.001-1500 is ideal for applications requiring accurate feedback and robust durability.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

Model: ROD-320.001-1500

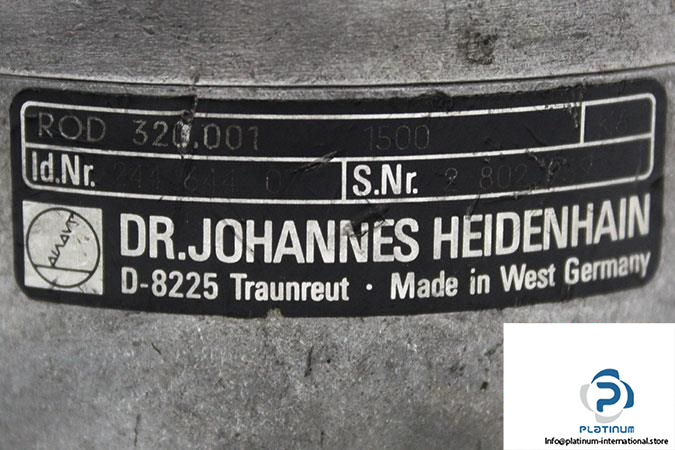

ID No.: 244 644 07

Installed For: Mostly on CNC Machine Industry

Shaft Design	Hollow Shaft
Shaft Diameter	15 mm
Voltage Supply	5 VDC
Resolution	1500 Pulses Per Revolution (PPR)
Max. Current Consumption	150 mA
Signal Output	TTL (RS 422)
Max Speed	8500 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP 64
Max Temperature	100 °C
