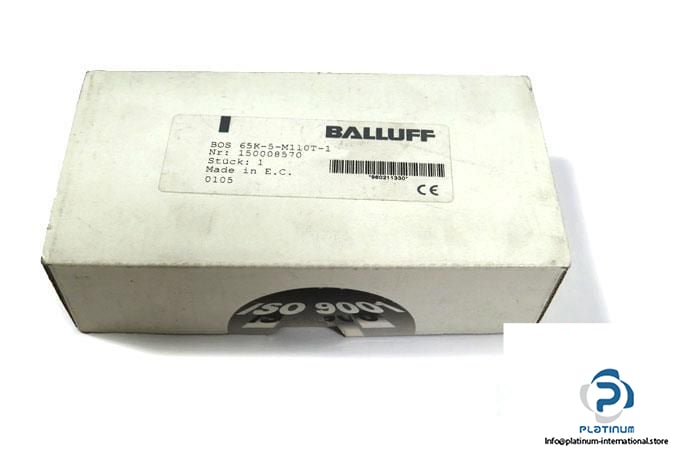

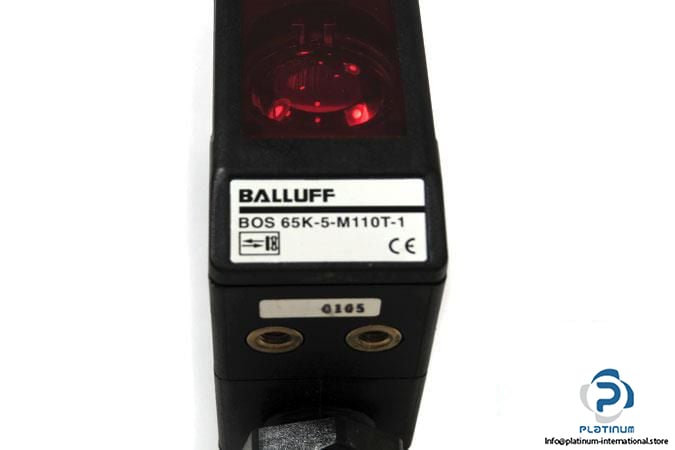

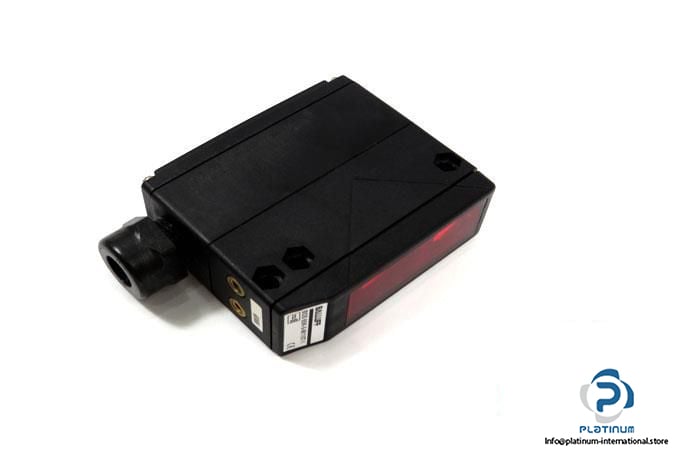

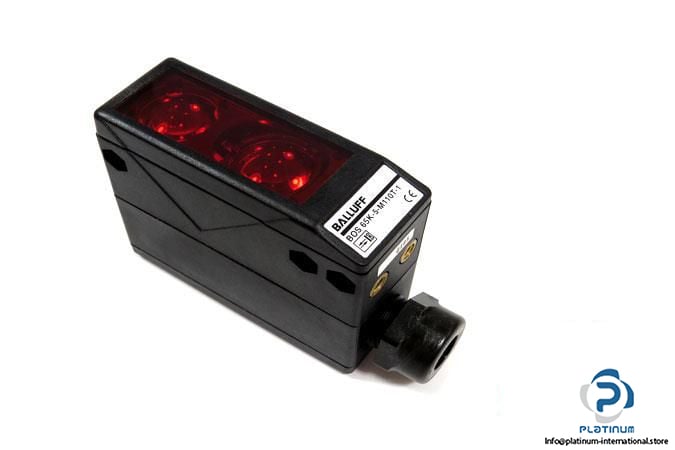

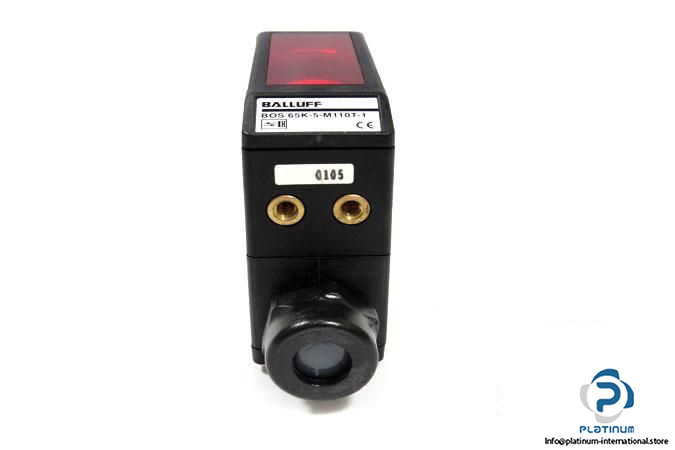

Balluff BOS 65K-5-M110T-1 Photoelectric Diffuse Sensor

Manufacturer: BALLUFF

Type: PHOTOELECTRIC DIFFUSE SENSOR, BACKGROUND SUPPRESSION

Order Code: BOS00N8

MRN: BOS 65K-5-M110T-1

Sensing Range: 1500 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 500 Hz

Electrical design: PNP/NPN

Output Function: Normally open/normally closed

Type of light: Infrared

Connector type: Screw terminals

Adjustment: Potentiometer

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -20 … 55°C

Dimensions: 72.5 x 32 x 85 mm

Weight: 160 g

Housing material: Polycarbonate

Lens material: PMMA

Condition: New
