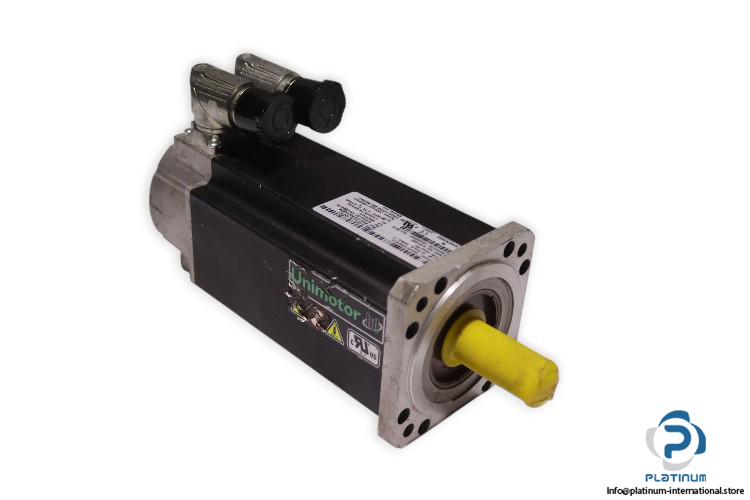

Emerson 089UDC300BAECA Servo Motor
Manufacturer: EMERSON
Type: Servo Motor

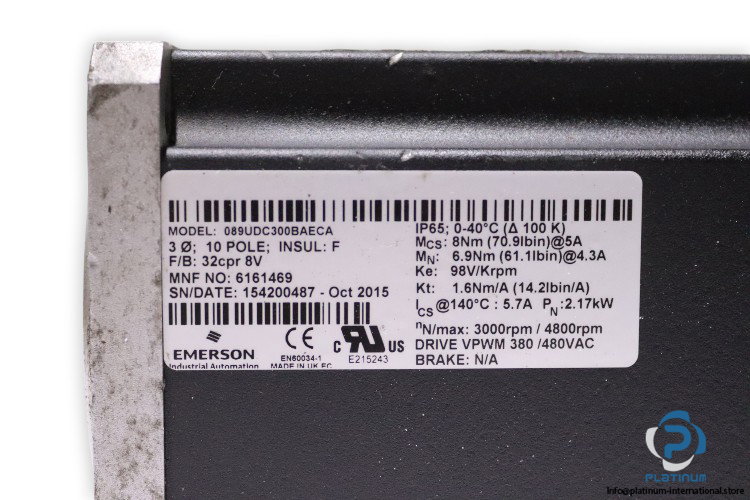

Model: 089UDC300BAECA
MNF No.: 6161469
Rated Voltage: 380/480 V
Rated Power: 2.17 kW
Rated Torque: 6.9 Nm
Stall Torque: 8 Nm
Rated Current: 4.3 A
Stall Current: 5 A
Rated Speed: 3000 rpm
Max. Speed: 3877 rpm
Ke: 98 V/Krpm
Kt: 1.6 Nm/A
Protection Class [IP]: 65
Temperature: 0-40 ° C
Poles: 10
Insulation Class: F
