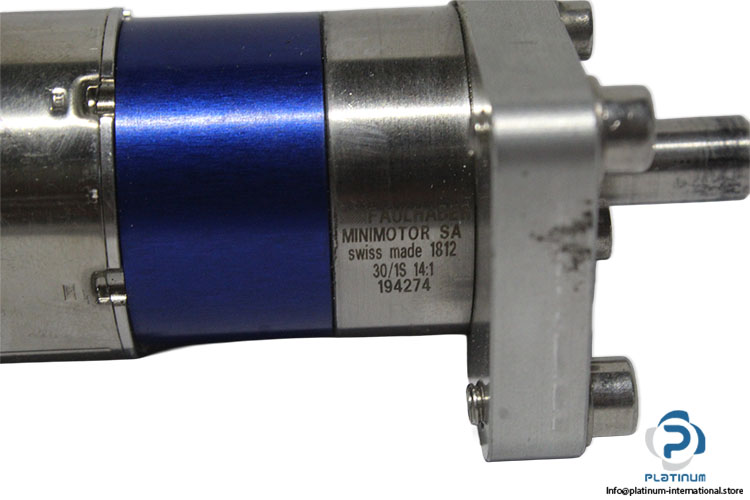

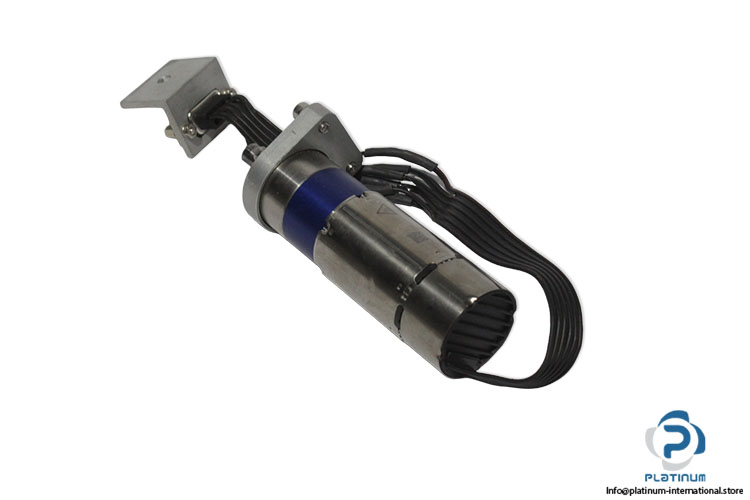

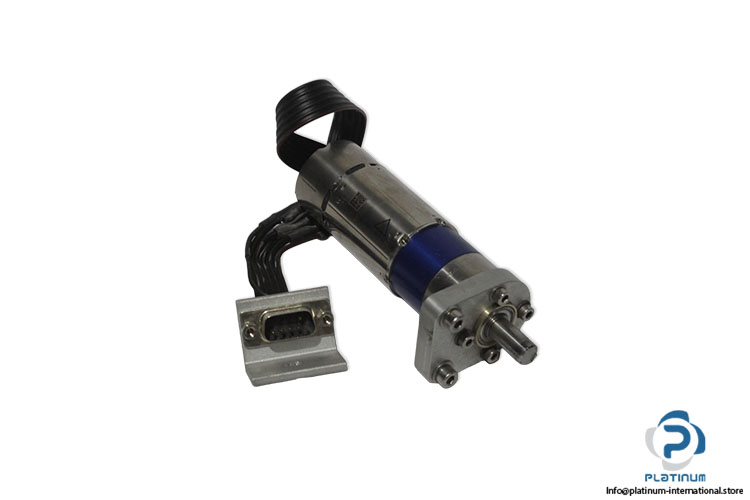

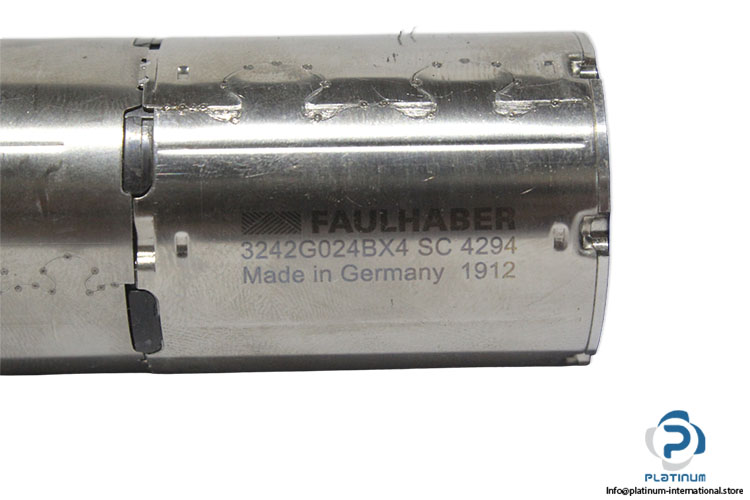

Faulhaber 3242G024BX4 SC 4294 DC Gear Motor
Used
In stock1 unitReady to ship
DC Gear Motor Compact FAULHABER DC gear motor with a 14:1 gear ratio and cable connection, designed for reliable industrial motion and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | 194274 |
| GEAR | 30/1S |
| RATIO | 14:1 |
| Nominal voltage | 24 V |
| Terminal resistance (phase-phase) | 3.67 ohm |
| Terminal inductance (phase-phase) | 240 µH |
| Back-EMF constant | 4.335 mV/min?¹ |
| Torque constant | 41.4 mNm/A |
| Current constant | 0.024 A/mNm |
| Number of pole pairs | 2 |
| Hall sensors | Digital |
| Magnet material | NdFeB |
| Rated torque | 41.8 mNm |
| Rated current (thermal limit) | 1.21 A |
| Rated speed | 4,600 min?¹ |
| No-load speed | 5,600 min?¹ |
| No-load current (typical) | 0.089 A |
| Stall torque | 269.4 mNm |
| Maximum efficiency | 78% |
| Slope of n-M curve | 20.4 min?¹/mNm |
| Connection | cable |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100561 |
| Weight | 0,38 |
