FYH Ucfl 208 Oval Flange Ball Bearing Unit

Name: FYH UCFL 208 OVAL FLANGE BALL BEARING UNIT
SKU: 1005286
Availability: LimitedAvailability

fyh-UCFL-208-oval-flange-ball-bearing-unit-(new)-(carton)-1

fyh-UCFL-208-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock3 unitsReady to ship

Manufacturer:

FYH

Type:

Oval flange ball bearing unit

Model:

UCFL208

Manufacturer

FYH

SKU

1005286

Category

Plummer Block Housing Units

Condition

New

40 bearing bearings flanged FYH Housing mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FYH
Type: Oval flange ball bearing unit
Model: UCFL208

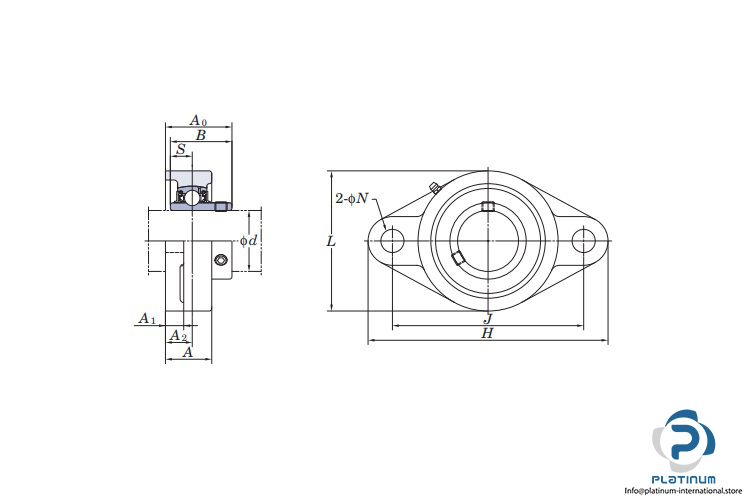

Dimensions
Bore Diameter d: 40 mm
Overall Length L: 100 mm
Overall Height H: 175mm
Width of inner ring B: 49.2 mm
Distance Between Attachment Bolts J: 144 mm
Overall unit width A₀: 51.2 mm
Basic load rating:
Dynamic Cr: 29100 N
Static C0r: 17800 N
Mounting: Oval Flange
Locking device: Set Screw
Bore Type: Cylindrical
