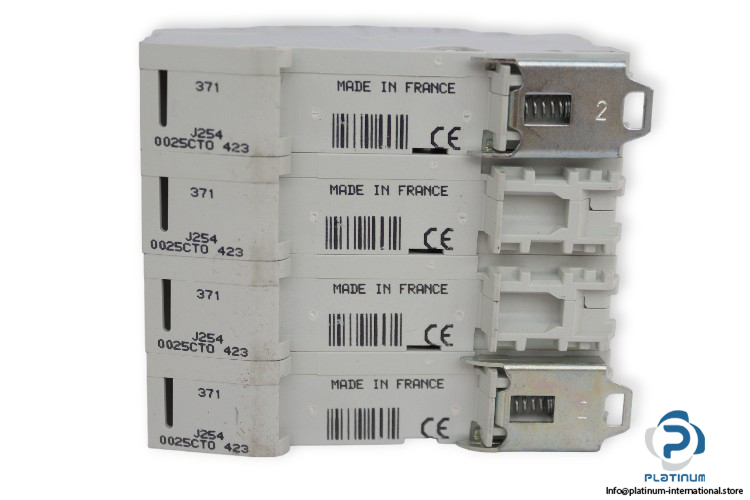

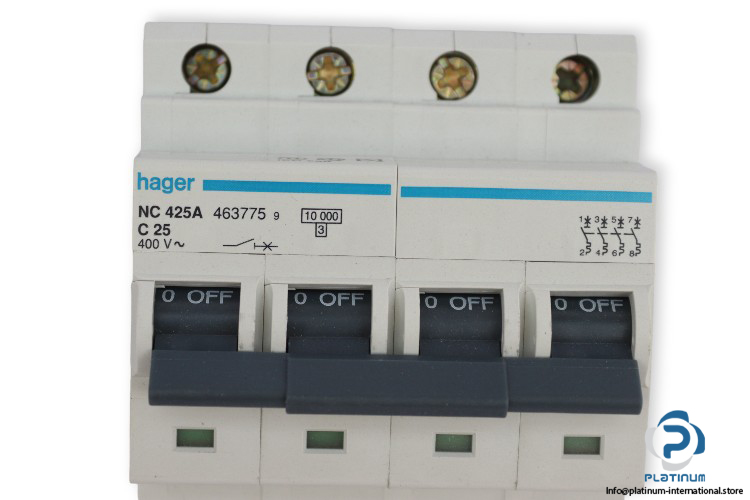

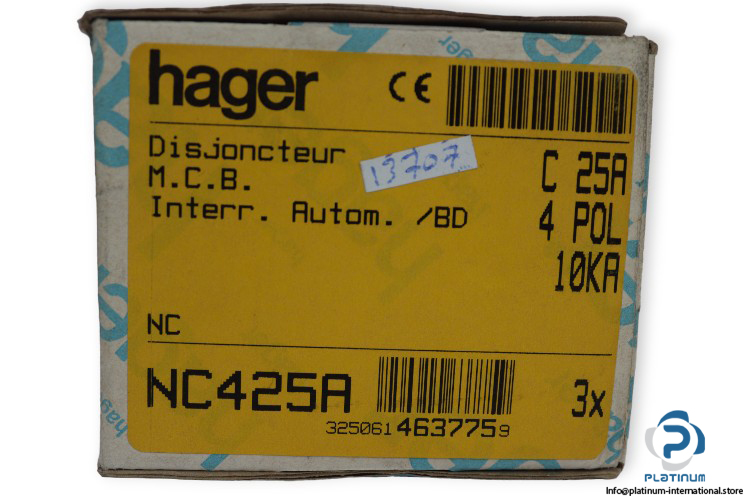

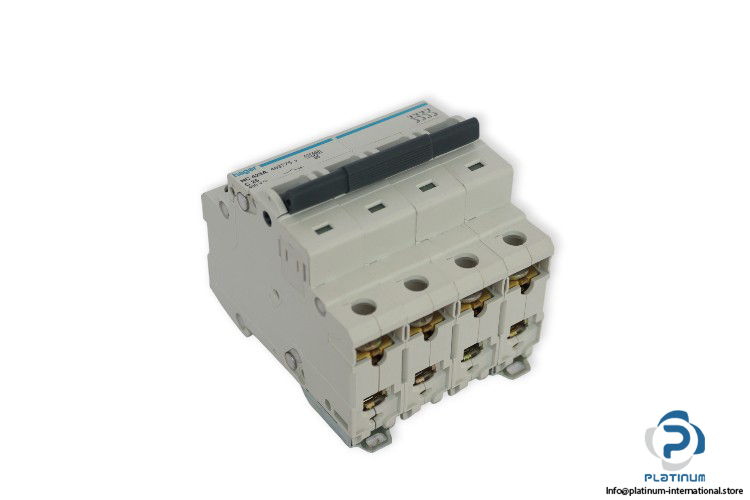

Hager NC425A Miniature Circuit Breaker
Manufacturer: HAGER
Type: Miniature Circuit Breaker
Model: NC425A
Part No.: 463775
Rated Operational Voltage: 400 V AC
Rated Current: 25 A
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 500 V
Rated Impulse Voltage (Uimp): 4 kV
Rated Short Circuit Breaking Capacity Icn: 10 kA
Curve: C
Poles No.: 4-Pole
Protection Class: IP20
Temperature: -25 … 70 °C
Dimensions: 83 x 70 x 70 mm
