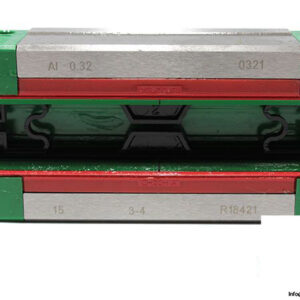

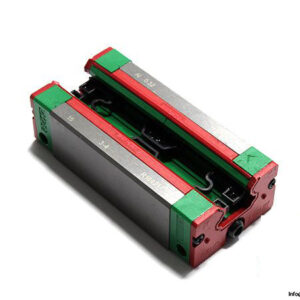

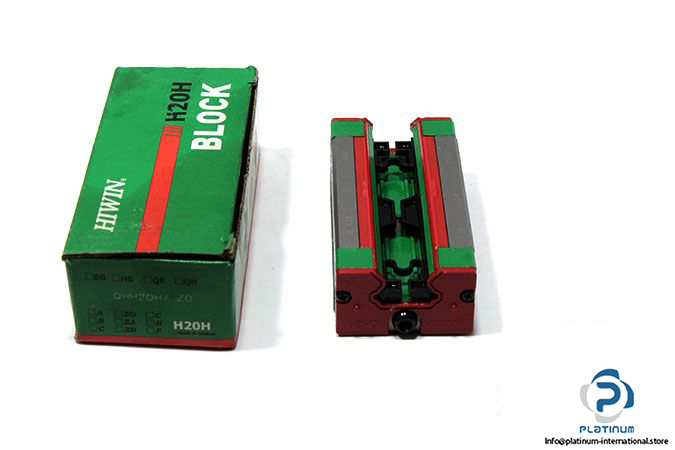

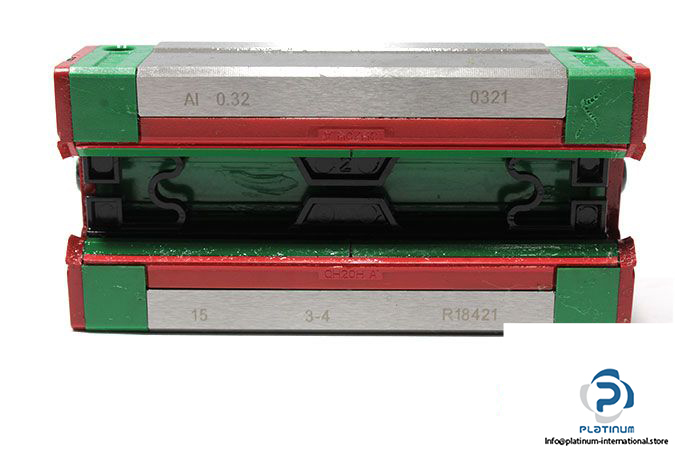

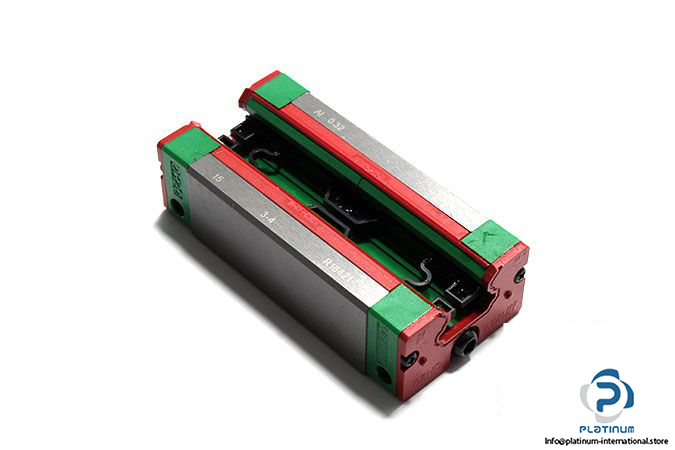

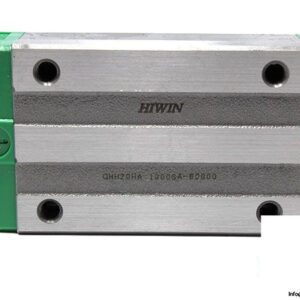

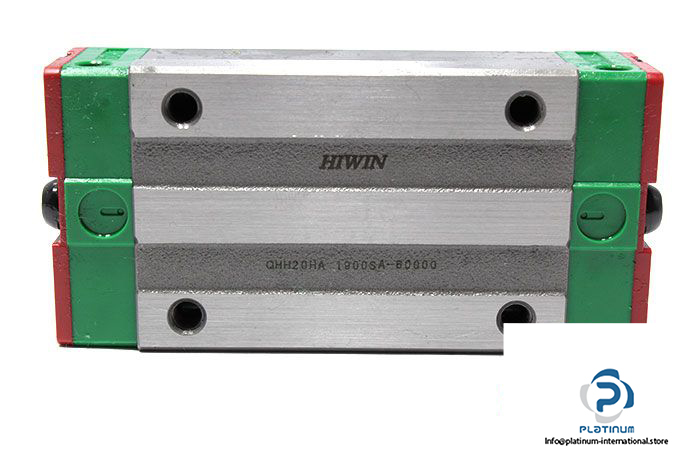

Hiwin QHH20HA Linear Guideway Block
New
In stock2 unitsReady to ship
LINEAR GUIDEWAY BLOCK
Heavy-load linear guideway block from Hiwin QH Series, sized at 20 mm with square-type design and SynchMotion Technology for smooth and precise motion under super heavy loads.20BlockCarriageGuideGuidewayHeavyHiwinLinearLoadM5x16mmMotionmountPrecisionQHQHH20HArailSeriesSquareSuperSynchMotionType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN QHH20HA LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block from Hiwin belongs to the QH Series and features SynchMotion Technology for smooth motion, low friction, and long service life. Designed for high-load applications, it offers excellent rigidity and precision with a compact square profile.
Manufacturer: Hiwin
Type: Linear Guideway Block
MRN: QHH20HA 1900SA-60000
Size: 20 mm
Basic Load Ratings, Linear:
| Total Height H | 30 mm |
| Block Width W | 44 mm |
| Block Length L | 91.4 mm |
| Block Height | 25.4 mm |
| Distances Between Holes | 32, 50 mm |
| Dynamic Cr | 35.7 kN |
| Static C0r | 42.31 kN |
| Mounting Bolts for Rail | M5x16 |
| Block Type | H (Square Type) |
| Load Type | H (Super Heavy Load) |
| Series | QH Series; Heavy Load Type Linear Guideway with SynchMotion Technology |
